Name: 4KW 2FF Mini SIM Card Packaging Machine Automatic PLC Controlled 8000pcs/hour
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YUP-MC-8000
Availability: InStock

Detail Information

Power Supply:	AC 220V/50 HZ	Total Power:	4KW
Air Source:	6 Kg/c㎡(with No Water)	Air Consumption:	About 50L/min
Weight:	About 500kg	Productivity:	About 7000~8000pcs/hour
Applicable Cards:	1. Standard 2FF Small Card (15X25mm) 2. The Punched Seamless Double-chip, Four- Hip, Six- Chip, And Nine-chip Standard Cards	Control Method:	PLC Program Control + Servo System
Operator Number:	1	Dimension:	L2000×W700×H1800mm
Packaging Film Material:	BOPP Etc	Packaging Film Thickness:	0.025mm~0.035 Mm
Automatic Folding Number:	10~25 Small Cards Per Stack	Packaging Film Specifications:	BOPP Packaging Film With Width Of 60 Mm, Inner Diameter Of 3 Inches And Outer Diameter Of Less Than 450 Mm After Being Folded In Half
Highlight:	SIM Card Packer Automatic , 4KW SIM Card Packaging Machine , 2FF SIM Card Packaging Machine

Product Description

Automatic Controlled SIM Card Packaging Machine For 2FF Mini SIM Cards

Product Specifications

Attribute	Value
Power supply	AC 220V/50 HZ
Total power	4KW
Air Source	6 kg/c㎡(with no water)
Air consumption	About 50L/min
Weight	About 500kg
Productivity	About 7000~8000pcs/hour
Applicable cards	1. Standard 2FF small card (15X25mm) 2. The punched seamless double-chip, four-hip, six-chip, and nine-chip standard cards
Control method	PLC program control + servo system
Operator number	1
Dimension	L2000×W700×H1800mm
Packaging film material	BOPP etc
Packaging film thickness	0.025mm~0.035 mm
Automatic folding number	10~25 small cards per stack
Packaging film specifications	BOPP packaging film with width of 60 mm, inner diameter of 3 inches and outer diameter of less than 450 mm after being folded in half

Product Overview

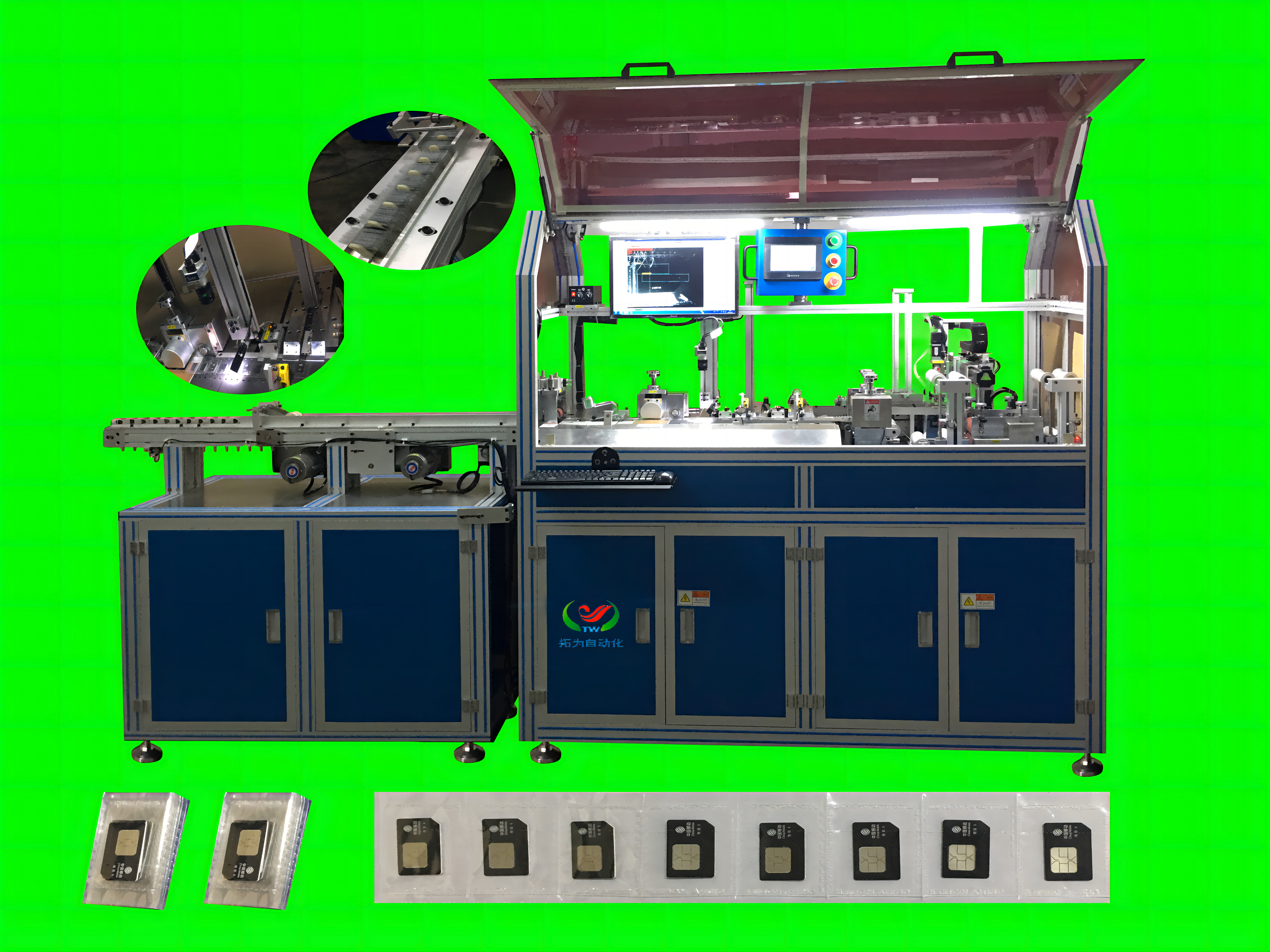

Mini SIM Card Packing Machine YUP-MC-8000

This machine is designed for packaging 2FF mini SIM Cards, including punched 2-chip, 4-chip, 6-chip and 9-chip cards.

Key Features

Integrates film delivery, card delivery, card tearing, and card collection functions
Stable and smooth film conveyance using special rubber wheel and film suction belt
Automatic detection of repeated cards, missing cards or film with automatic shutdown
Compatible with various packaging films (thickness ≥ 0.025mm)
Continuous ultrasonic welding process produces clear, beautiful patterns
Chained card packaging function with adjustable section count
Personalized edge design for packaging bags
Professional card collection structure with automatic folding and storage
Optional CCD visual inspection system for serial number/barcode detection

Technical Parameters

Power supply AC 220V/50 HZ	Control method PLC program control + servo system
Total power 4KW	Operator number One person
Air Source 6 kg/c㎡(with no water)	Dimension L2000×W700×H1800mm
Air consumption About 50L/min	Packaging film material BOPP etc
Weight About 500kg	Packaging film thickness 0.025mm~0.035 mm
Productivity About 7000~8000pcs/hour	Automatic folding number 10~25 small cards per stack
Applicable cards 1. Standard 2FF small card (15X25mm) 2. The punched seamless double-chip, four-hip, six-chip, and nine-chip standard cards
Packaging film specifications BOPP packaging film with width of 60 mm, inner diameter of 3 inches and outer diameter of less than 450 mm after being folded in half

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YUP-MC-8000

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	30-35days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 set per 35 days
