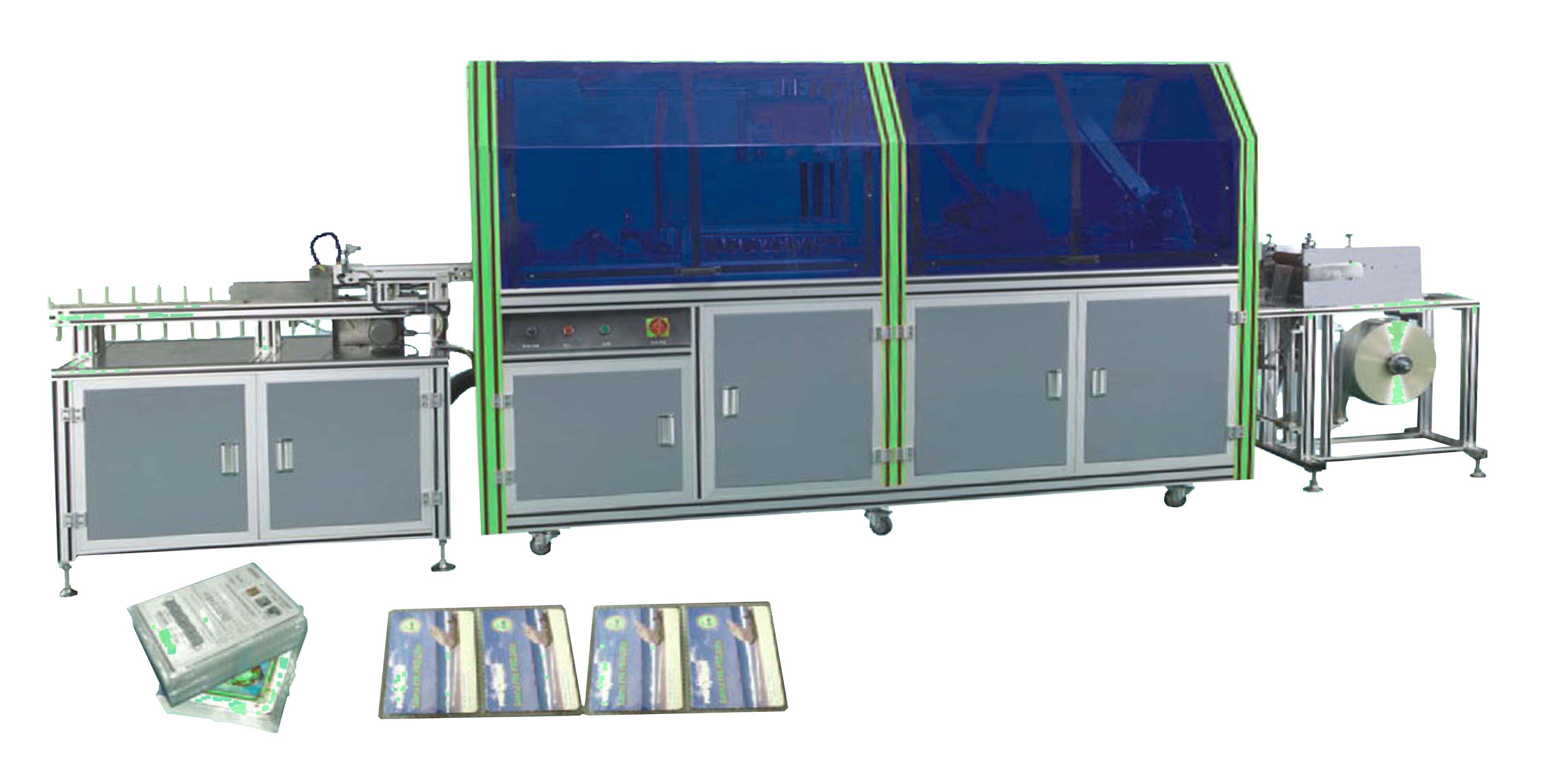

Name: PLC Controlled Card Packing Machine Automatic For CR80 Single Card Or Multi Card
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YUP-3000
Availability: InStock

Detail Information

Net Weight:	Around1000 KG	Dimesion:	Total Around 4800×W980×H1860mm
Power:	5KW	Compressed Air:	50L/min 6 Kgs /cm2
Control Mode:	PLC Programming+ Step System	Suitalbe Card Size:	ISO 0.25-0.8mm Thick CR80 Cards
Highlight:	PLC Controlled Card Packing Machine , CR80 Card Packing Machine , Card Packing Machine Automatic

Product Description

Automatic Single Card Or Multi Card Packing Machine Card Wrapper PLC Controlled

Product Overview

The Automatic High-speed Ultrasonic Card Packing Machine YUP-3000 utilizes continuous ultrasonic welding technology for high-speed single-card or multi-card packing. PLC-controlled with an intuitive interface, this system delivers fast operation, low noise, precise welding patterns, and reliable performance for bulk packaging of phone charge cards, standard SIM cards, and smaller format cards.

Key Features

Special rubber wheel and air absorbing belt system ensures flat, stable film conveyance
Automatic detection for card overlapping or absence with error notification
Optional second feeder for double-card packing or mini booklet insertion
Continuous ultrasonic welding technology produces clear, attractive sealing patterns
Configurable for single-card or multiple-card packing with adjustable collection settings
Optional visual inspection system for serial number or barcode verification
Optional chain card binding unit for packed card sets

Technical Specifications

Attribute	Specification
Dimensions	4800 × 980 × 1860 mm (L×W×H)
Net Weight	Approximately 1000 kg
Power Supply	AC 380V/50 HZ
Rated Power	5 KW
Compressed Air	50 L/min at 6 kg/cm² (Dry)
Control Method	PLC programming + Step System
Card Compatibility	ISO 0.25-0.8mm thick CR80 cards
Maximum Speed	30,000 pieces/hour
Packaging Material	BOPP film or similar (0.025-0.035 mm thickness)
Film Specifications	120 mm wide (standard card) or 60mm wide (half size card), 3" inner diameter, ≤450mm outer diameter rolls
Operator Requirement	1 person

All specifications are subject to change without notice. Contact our technical team for detailed configuration options.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YUP-3000

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	1-2 plywood case
Delivery Time:	50 working days
Payment Terms:	T/T, Western Union, D/P, D/A
Supply Ability:	1 set per 45 days
