Name: High Speed Ultrasonic Card Packaging Machine 0.25mm - 0.8mm Thick 30000 pcs/hr
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YUP-3000
Availability: InStock

Detail Information

Control Method:	PLC Programming+ Step System	Dimension:	L4800×W980×H1860mm
Packaging Material:	BOPP Film Or Similar 0.025mm~0.035 Mm Thick	Card Size:	0.25-0.8mm Thick CR80 Cards
Packaging Size:	Folded Film 120 Mm Wide (for Standard Card ) Or 60mm Wide (for Half Size Card), Film Roll Inner Diameter 3 Inches And External Diameter Less Than 450 Mm,	Speed:	Max 30000 Pcs/hr
Highlight:	Ultrasonic Card Packaging Machine , High Speed Card Packaging Machine , Card Packer 0.8mm

Product Description

Ultrasonic Cell Phone Charge Card Packaging Machine High Speed Automatic Checking

Product Specifications

Control Method	PLC programming + Step System
Dimension	L4800×W980×H1860mm
Packaging Material	BOPP film or similar 0.025mm~0.035 mm thick
Card size	0.25-0.8mm thick CR80 cards
Packaging Size	Folded film 120 mm wide (for standard card) or 60mm wide (for half size card), Film roll inner diameter 3 inches and external diameter less than 450 mm
Speed	Max 30000 pcs/hr

Product Overview

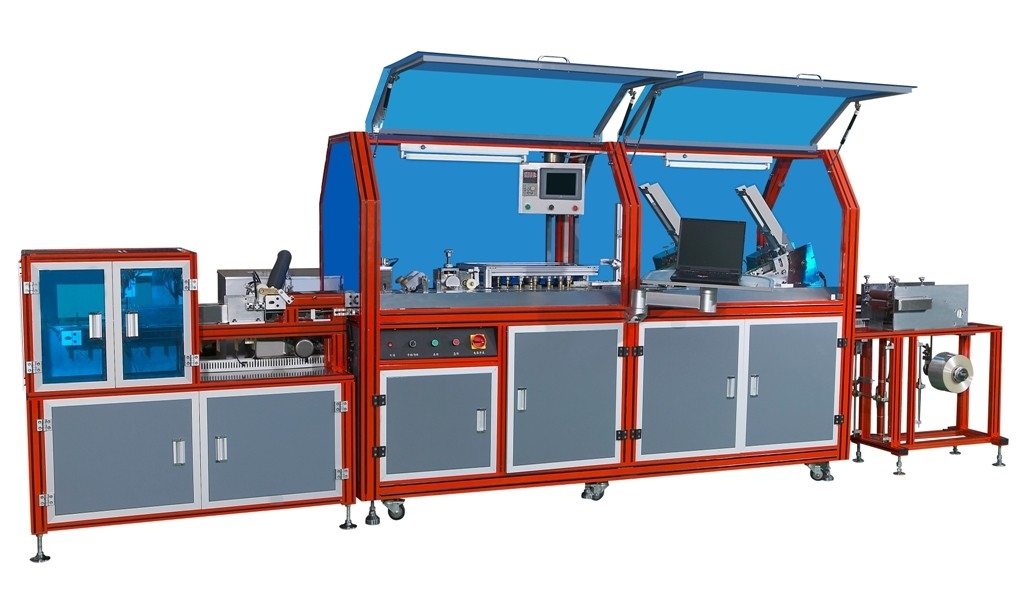

The Automatic High-Speed Ultrasonic Card Packing Machine YUP-3000 delivers perfect single-card or multi-card packaging using continuous ultrasonic welding technology at high speeds. PLC-controlled with an intuitive interface, this machine offers fast operation, low noise, precise welding patterns, and reliable performance for bulk packaging of cell phone charge cards and SIM cards.

Key Features

Special rubber wheel and air absorbing belt ensure flat, stable film conveyance
Automatic detection for card overlapping/absence with error notification
Optional second feeder for double cards or mini booklet insertion
Continuous ultrasonic welding technology for clear, attractive sealing patterns
Configurable for single or multiple card packaging
Optional visual inspection system for serial number/barcode verification
Optional chain card binding unit for packed chain cards

Technical Parameters

Power Supply	AC 380V/50 HZ
Total Power	5KW
Air Source	6 kg/cm² (Dry)
Air Consumption	50L/min
Weight	Approximately 1000Kg
Operator Requirement	1 person

Applications

Also known as Speedy Card Packaging Machine, High-speed Card Wrapping Machine, Card Wrapper or Card Packer YUP-3000, this system is ideal for high-volume packaging of various card types including phone cards and SIM cards.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YUP-3000

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	30-35days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 set per 35 days
