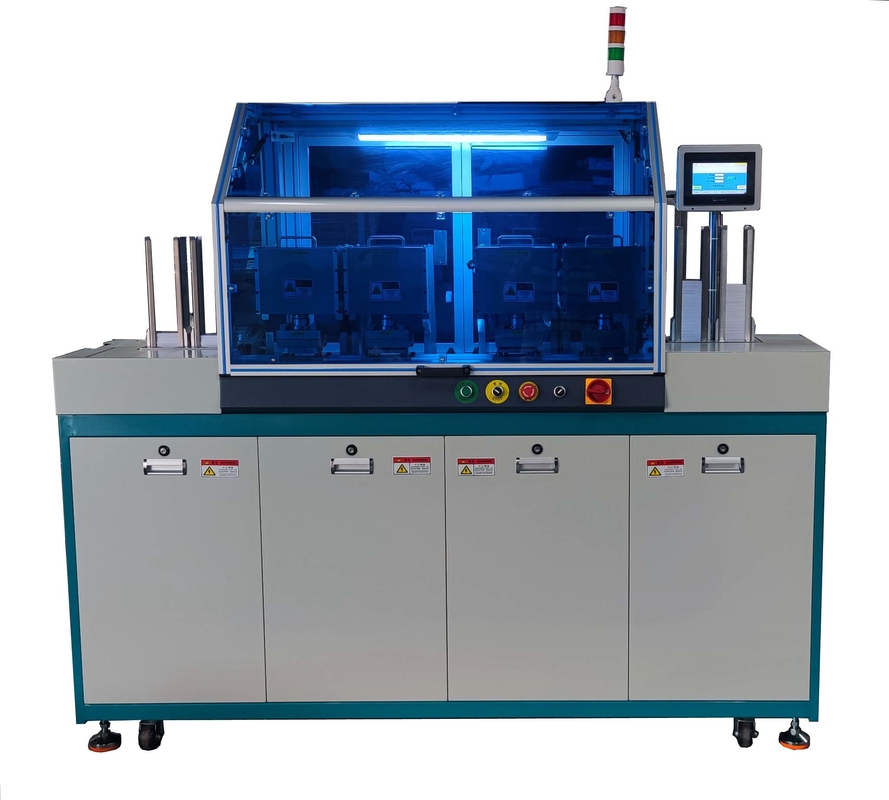

Automatic GSM SIM Card Puncher 4000-6000 CPH PLC Control YLFP-SIM-2

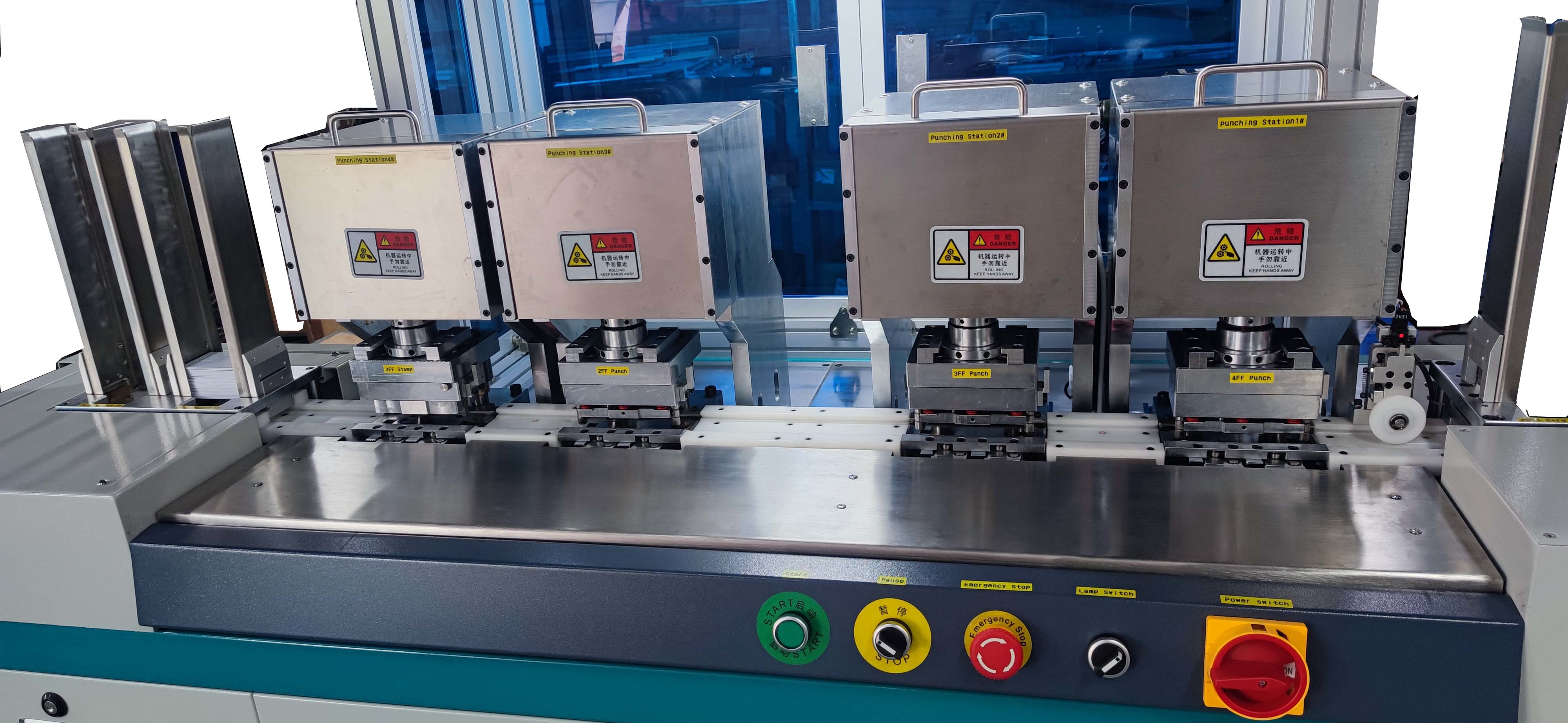

The YLFP-SIM-2 is a fully automatic SIM card punching machine designed for precise and speedy processing of both 1-chip and 2-chip SIM cards. With five specialized working stations, this machine delivers high efficiency and flexibility in card production.

• Advanced punching die design with imported high-hardness steel cutting edges for extended service life
• High-quality indentation molds ensure perfect small card indentation with easy maintenance
• High-power servo motor provides adjustable parameters, large shearing torque, and high precision
• Modular structure allows four workstations to operate simultaneously or independently
• Optional dual card feeders for flexible processing configurations
• Special belt-type card conveying mechanism ensures stable performance at high speeds without scratching
• Includes card feeding direction detection and double card feeding detection
• Automatic alarm and stop functions for empty feeders or full collection magazines
• PLC program control with Chinese/English touch screen interface and automatic sampling inspection

• Speed: 4000-6000 CPH
• Materials: Full SIM card Cr80 Card
• Power: AC380V 50/60 HZ
• Control: PLC program + servo system
• General Power: 6.0 KW
• Compressed Air: 6kg/cm² (dry)
• Air Consumption: 90L/min
• Dimensions: L2160×W900×H1750mm
