AC220V 50MHZ SIM Card Manufacturing Machine Full Size SIM Card Laser Engraving Machine

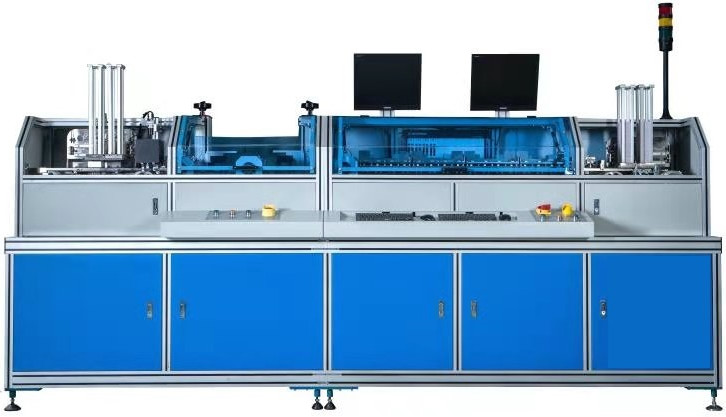

The SIM Card Personalization Machine YSCP-1 is designed for writing sequential requirement data such as smart card personalized data and laser number marking. The equipment features modular design, allowing flexible configuration of card writing heads and laser engraving units according to customer requirements.

• Processing speed: 4000-5000 chips per hour
• Compressed air requirement: 0.5-0.6MPA
• Machine size: 2800 × 950 × 1650mm
• Lead time: 40-50 days

• 16 work stations (including 64 writing heads for 2-chip and 4-chip cards)
• 2 industrial control host computers
• 2 loaders and 2 unloaders (4×500 cards capacity)
• 1 reject box
• 3 dual-station flippers with 2-side laser marking capability
• 2 laser engraving units
• 1 TP-LINK (48 interfaces) switch

X axis represents time, Y axis represents speed. The inflection point occurs at 8.8s. At 24.8s downloading time, speed reaches 2000 cards/hour.

Inflection point at 0.39s. At 1.6s marking time, speed reaches 1800 cards/hour.

• Dimension: 3.6 m × 0.8m × 1.90 m
• Weight: About 1000kg
• Power: 220V, 50Hz, 3KW (machine), 3.6KW (Laser)
• Air pressure: 0.5Mpa, 10L/min

• Complete testing with customer's own cards prior to shipment
• Factory Acceptance Test (FAT) recommended for customer engineers
• Comprehensive training materials including instructional videos and documents
• Inclusion of additional spare parts
• Prompt technical support during operation
