Detail Information

Dimension:	Approx L2160×W800×H1750mm	Weight:	About 1000kg
Power:	220V, 50/60Hz,	Air Pressure:	60L/min
Working Station:	4 Stations (combine Punching And Indenting )	Card Specification:	ISOCR80/IEC7810 54x85.6mm
Air Source:	6kg/cm²（no Water）	Output:	4000~6000 Pcs/h (depend On Punching Mode)
Highlight:	SIM Card Manufacturing Machine Auto , PLC Controlled SIM Card Manufacturing Machine , Automatic SIM Card Die Cutting Machine

Product Description

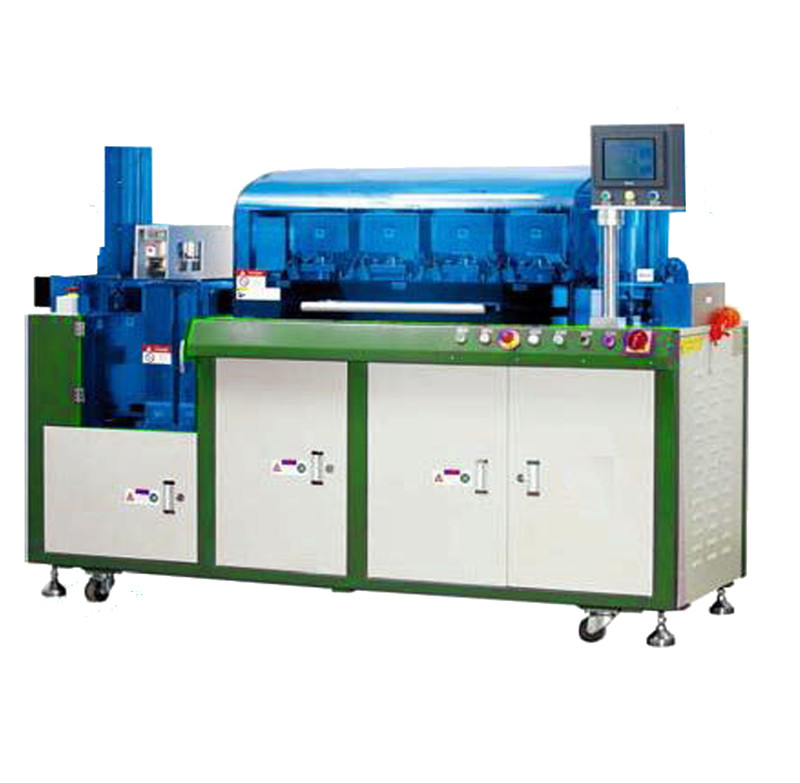

PLC Program Controlled Full Auto SIM Card Personalization Die Cutting Machine YLP-SC-1

Product Specifications

Attribute	Value
Dimension	Approx L2160×W800×H1750mm
Weight	About 1000kg
Power	220V, 50/60Hz
Air pressure	60L/min
Working station	4 stations (combine punching and indenting)
Card specification	ISOCR80/IEC7810 54x85.6mm
Air source	6kg/cm² (no water)
Output	4000~6000 pcs/h (depend on punching mode)

Product Overview

The PLC Program Controlled Full Auto SIM Card Personalization Die Cutting Machine YLP-SC-1 is an all-in-one solution for SIM card punching, die cutting, and personalization. Also known as SIM Card Puncher or Full Auto SIM Card Die Cutter, this machine offers high-speed, high-precision processing with PLC program control and servo system operation.

Key Features

Automatically controlled by PLC program with large touch screen operation
Card feeding, hole punching and indentation driven by servo system
Adjustable parameters to meet customer requirements
Modular structure with four working stations (combine punching and indenting)

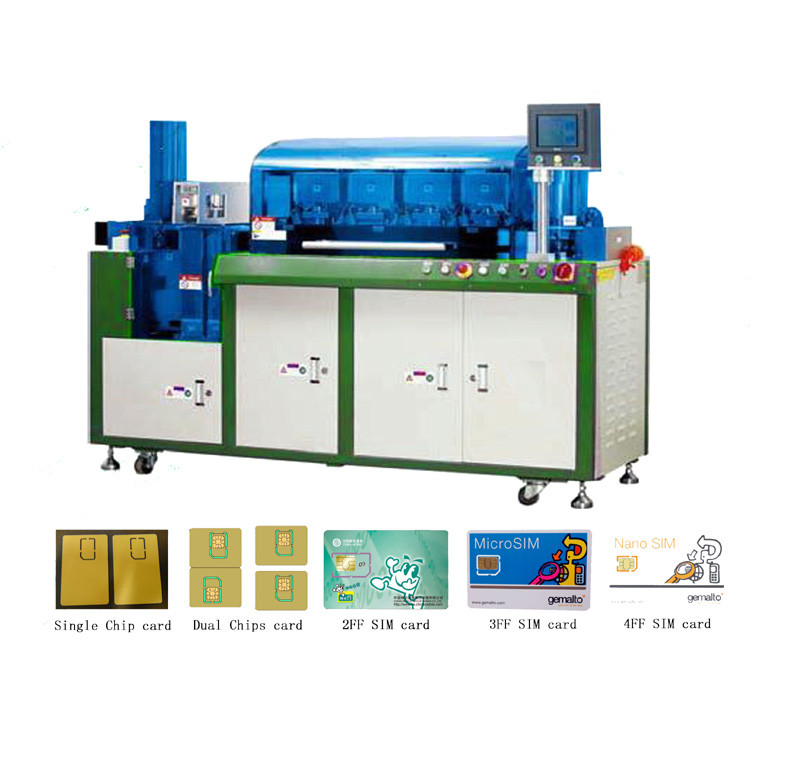

Processes standard 2FF, 3FF, 4FF single chip card or double chips SIM card
High-power servo dynamo ensures powerful cutting force and high precision
Card direction and double card testing with automatic error alarm
Automatic alarm for no card feeding or full collecting unit

Technical Specifications

Power supply	AC220V 50/60 HZ
Control method	PLC program control + servo system
Total power	6 KW
Operator	1 person
Positioning precision	±0.020mm

Applications

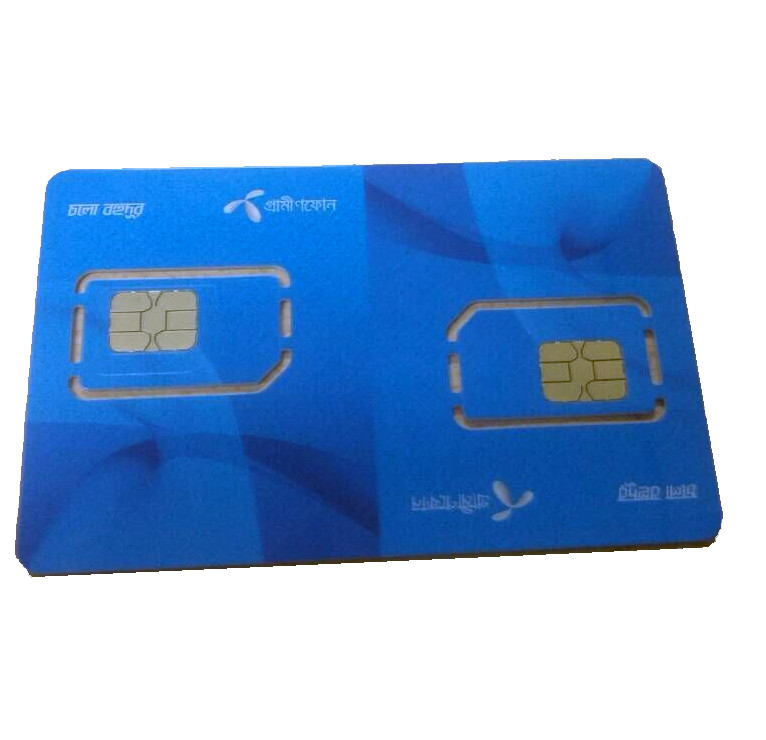

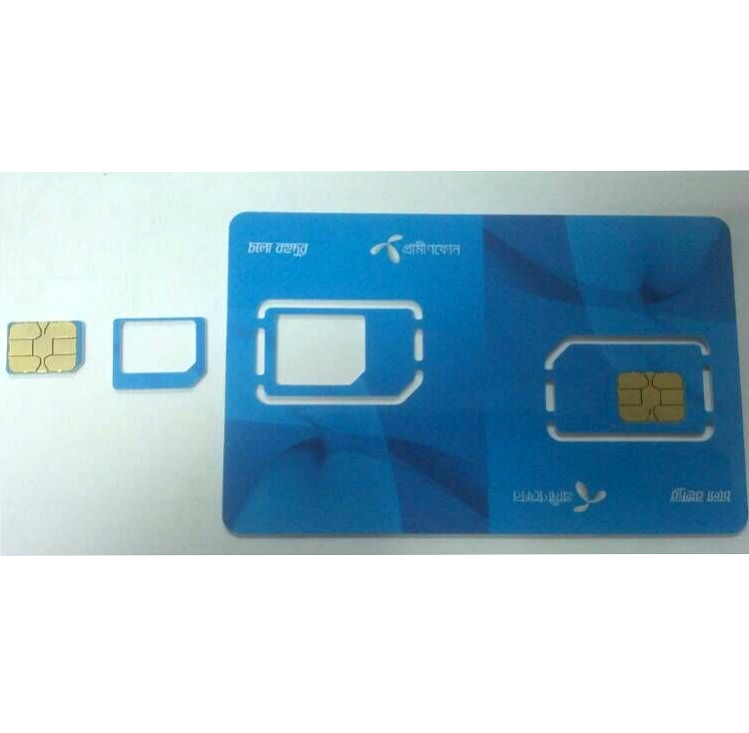

This machine is suitable for punching single-chip, double-chip and 4-chip SIM cards in the format of standard 2FF, 3FF and 4FF. It can punch the CR80 SIM card into half SIM cards.

Our Service

Pre-sale Service:

Professional suggestions for raw material matching and machine selection
Device model recommendation based on requirements
Efficient on-line service
Factory visit arrangements

Sale Service:

Production scheduling updates
Quality supervision
Product acceptance
Timely shipping

After-sale Service:

On-site engineer guidance if needed
Setup, fixing, and operation support
Operator training
Lifetime technical support
Regular client feedback collection

Quality Guarantee

Complete testing with customer's own cards before shipment
Factory Acceptance Test (FAT) available
Detailed instructional videos and documents provided
Extra free spare parts included
Prompt technical support during operation

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YSCP-1

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	25-30days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	2 sets per quarter
