Name: Full Automatic 2FF Mini SIM Card Punching Machine For 1 Chip And 2 Chip Cards
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YLFP-SIM-2
Availability: InStock

Detail Information

Output:	About 4000~6000 CPH	Feeding Feature:	1 Card Issuance Magazine +dual-card Detection Unit
Application:	Both 1-chip SIM Card And 2-chip SIM Card Punching	Station:	4FF+3FF+2FF+...
Air Consumption:	Approx 90L/min	Loading Port:	Shenzhen Or Other Chinese Port Etc
Highlight:	Full Automatic SIM Card Punching Machine , 1 Chip SIM Card Punching Machine , 2 Chip SIM Card Punching Machine

Product Description

2FF Mini SIM Card and Half Card Punching Machine

1-Chip and 2-Chip Cards Punching Solution

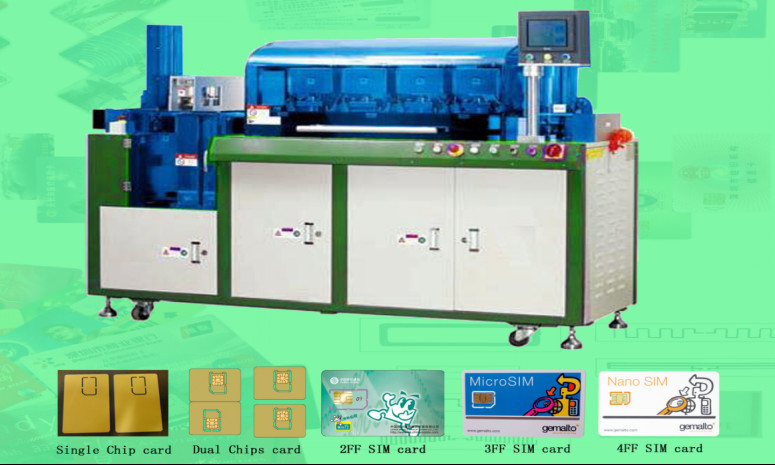

The Full Automatic SIM Card Puncher YLFP-SIM-2 is a high-performance solution for punching both 1-chip and 2-chip SIM cards with precision and efficiency.

Key Features

Handles both 1-chip and 2-chip SIM card punching
Five working stations for comprehensive processing
Output capacity of 4000-6000 cards per hour
PLC program control with Chinese-English touch screen
Modular design for flexible operation
Advanced detection systems for quality control

Technical Specifications

Output Capacity	4000-6000 CPH
Feeding System	1 card issuance magazine + dual-card detection unit
Working Stations	4FF+3FF+2FF seamless punching, indentation, and half card punching
Power Supply	AC380V 50/60 HZ
Total Power	6 KW
Air Consumption	Approx 90L/min
Dimensions	2160×900×1750mm (L×W×H)
Weight	Approx 1000Kg

Machine Configuration

The YLFP-SIM-2 features a comprehensive configuration for efficient SIM card processing:

1 card feeding magazine for 2-chip full size cards
3 punching stations (4FF, 3FF seamless punching and 2FF slot punching)
1 indenting station (2FF indenting)
Half size card punching station
2 half size card collection magazines
1 card collection magazine

Advanced Technical Features

Punching dies made of imported high hardness, wear-resistant steel
High-power servo motor for punching and cutting power
Modular structure design for flexible operation
Special belt-type card conveying mechanism for scratch-free processing
Automatic alarm and stop functions for empty feeders or full collection
Precision positioning (±0.020mm) for consistent quality

Shipping Information

Standard loading port: Shenzhen or other Chinese ports. Lead time: 30-35 days.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YLFP-SIM-2

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export standard plywood case
Delivery Time:	around 25-30 work days
Payment Terms:	T/T, Western Union, D/P, D/A
Supply Ability:	1 set per 25 days
