220V Laser Printing SIM Card Manufacturing Machine For 2 Chip And 4 Chip Cards

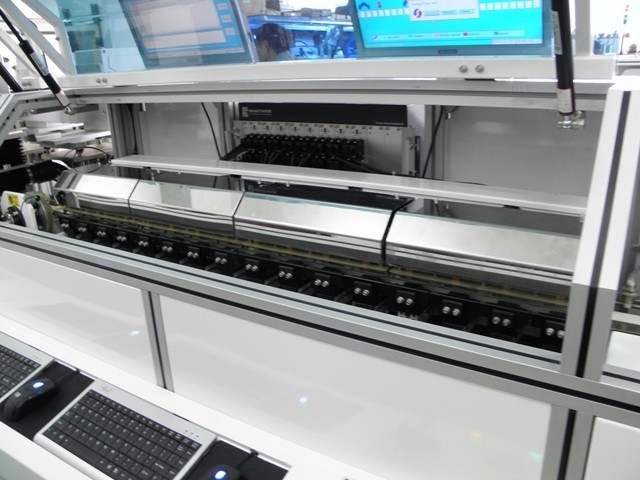

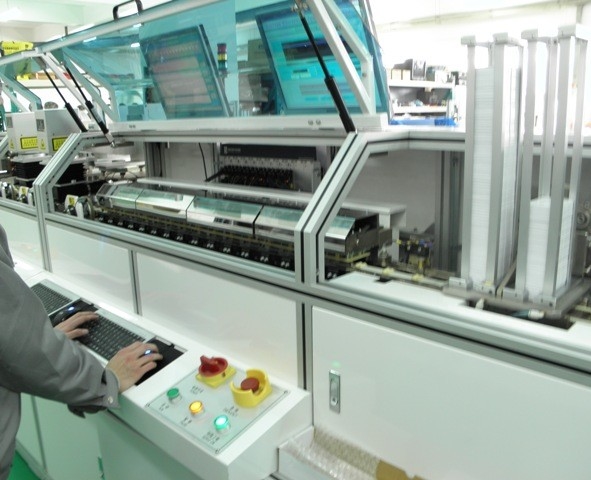

The YSCP-1 Contact Encoding Laser Printing Machine is designed for personalizing GSM cards with 1 chip, 2 chips, or 4 chips in one card through contact encoding and laser graphical printing. This modular equipment features flexible configurations of card writing heads and laser engraving units to meet specific customer requirements.

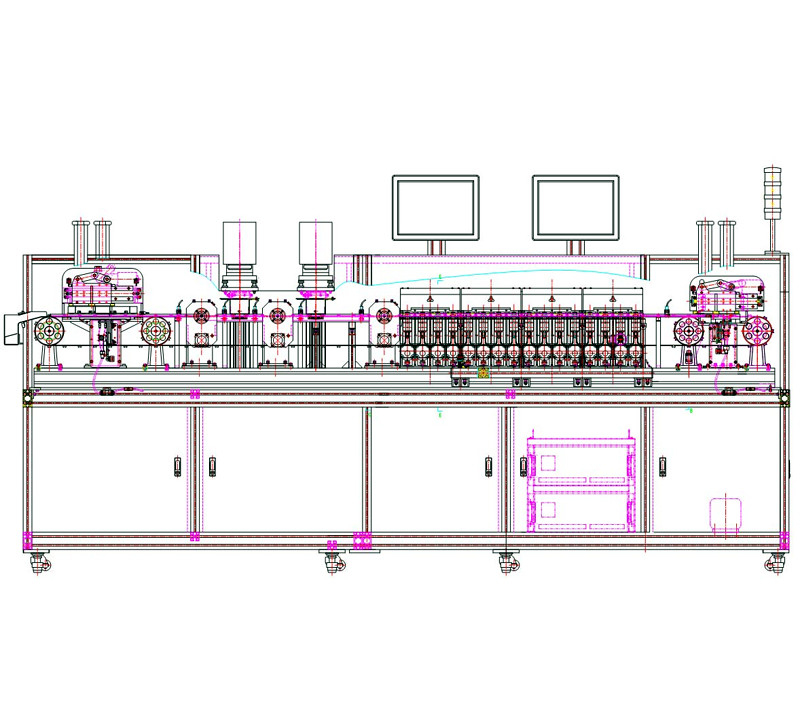

• Dimensions: 3.6 m × 0.8m × 1.90 m
• Weight: Approximately 1000kg
• Power: 220V, 50Hz, 3KW (machine), 3.6KW (Laser)
• Air pressure: 0.5Mpa 10L/min

• 16 work stations with 64 writing heads (supports 2-chip and 4-chip cards)
• 2 industrial control host computers
• 2 loaders and 2 unloaders (4×500 cards capacity)
• 1 rejection box
• 3 dual-station flippers for 2-side laser marking
• 2 laser engraving units
• 1 TP-LINK (48 interfaces) switch

Speed and data downloading time:

X axis represents time, Y axis represents speed. Inflection point at 8.8s. At 24.8s downloading time, speed reaches 2000 cards/hour.

Speed and laser marking time:

X axis represents time, Y axis represents speed. Inflection point at 0.39s. At 1.6s marking time, speed reaches 1800 cards/hour.

• Extensive experience in smart card manufacturing equipment
• Independent R&D capability for flexible, cost-effective solutions
• Comprehensive after-sales service network
• Supports ISO cards, half cards (2 chips), and quarter cards (4 chips)
• PC & servo control for stable operation
• Maximum speed of 8,000 cards/hour for read/write and laser printing
• Configurable with 8-64 contact or contactless processing stations
• Optional OCR inspection capabilities
• Integrated mechanical, electronic, and data processing with security monitoring
• Provides SDK, DLL, and application interfaces for custom software development
