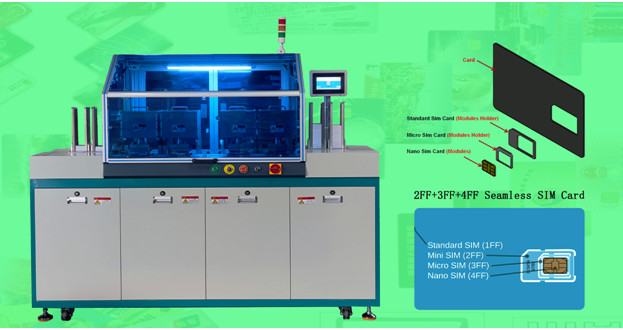

Full Automatic SIM Card Punch Machine 5.5KW 5000 - 6000 CPH YLFP-SIM-1

The YLFP-SIM-1 Full Automatic SIM Card Puncher integrates card feeding direction checking, card transmission, punching, kiss punching, and collection functions. Controlled by PLC program with Chinese-English touch screen operation, this machine delivers high precision and adjustable parameters for efficient SIM card production.

• Advanced punching die design with imported high-hardness steel cutting edge for extended service life
• High-power servo motor provides adjustable parameters, large shearing torque, and high precision

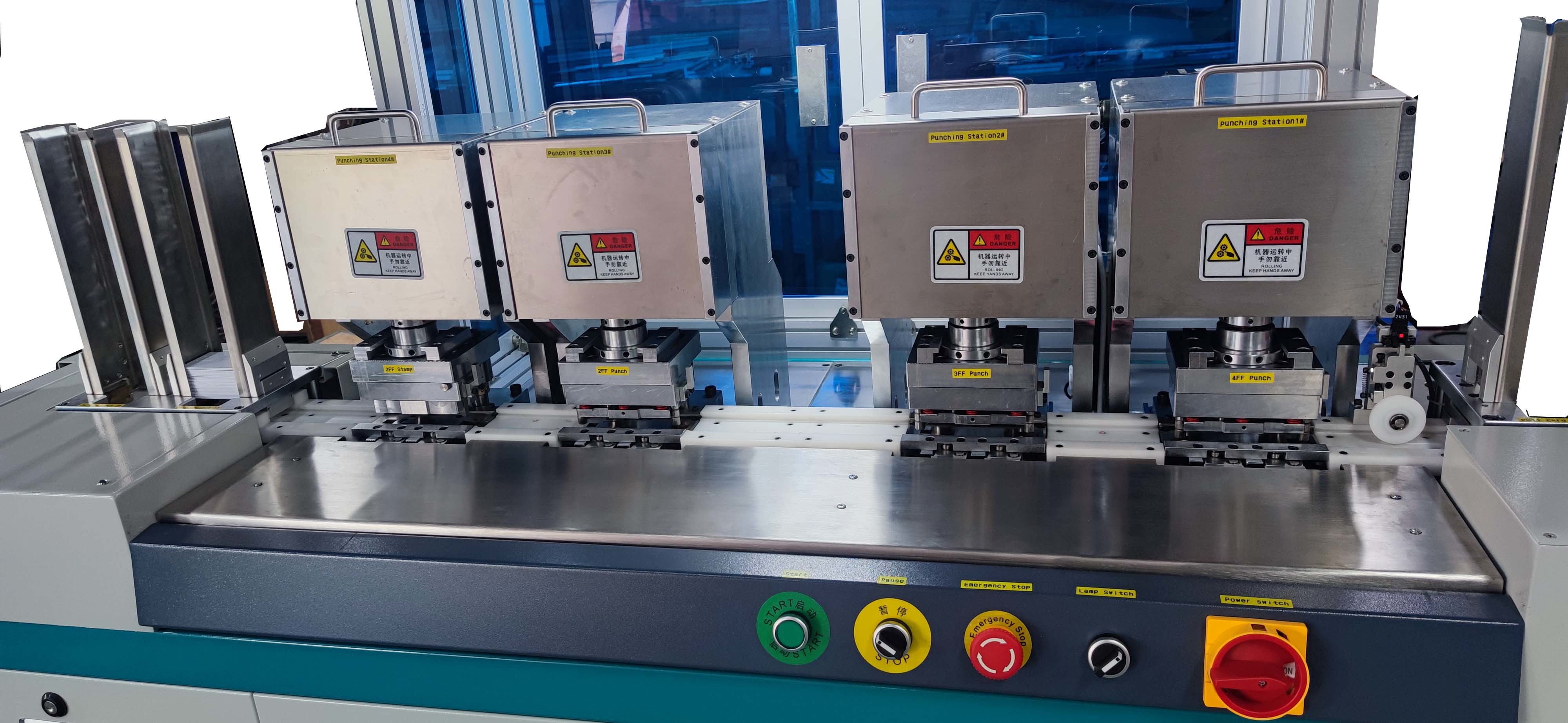

• Modular structure design allows four workstations to operate simultaneously or independently
• Optional dual card feeders for flexible processing requirements
• Special belt-type card conveying mechanism ensures stable performance without scratching cards
• Automatic alarm and stop functions for empty card feeders or full collection magazines
• PLC program control with Chinese-English touch screen operation and automatic sampling inspection

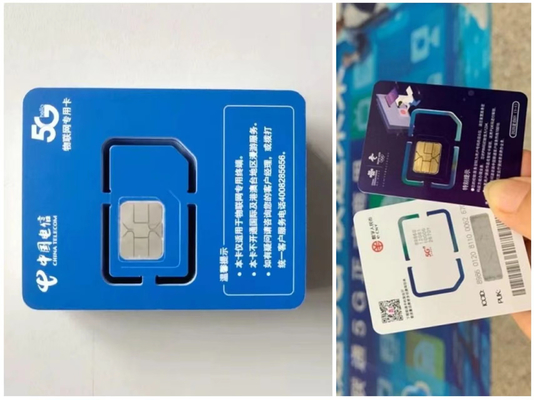

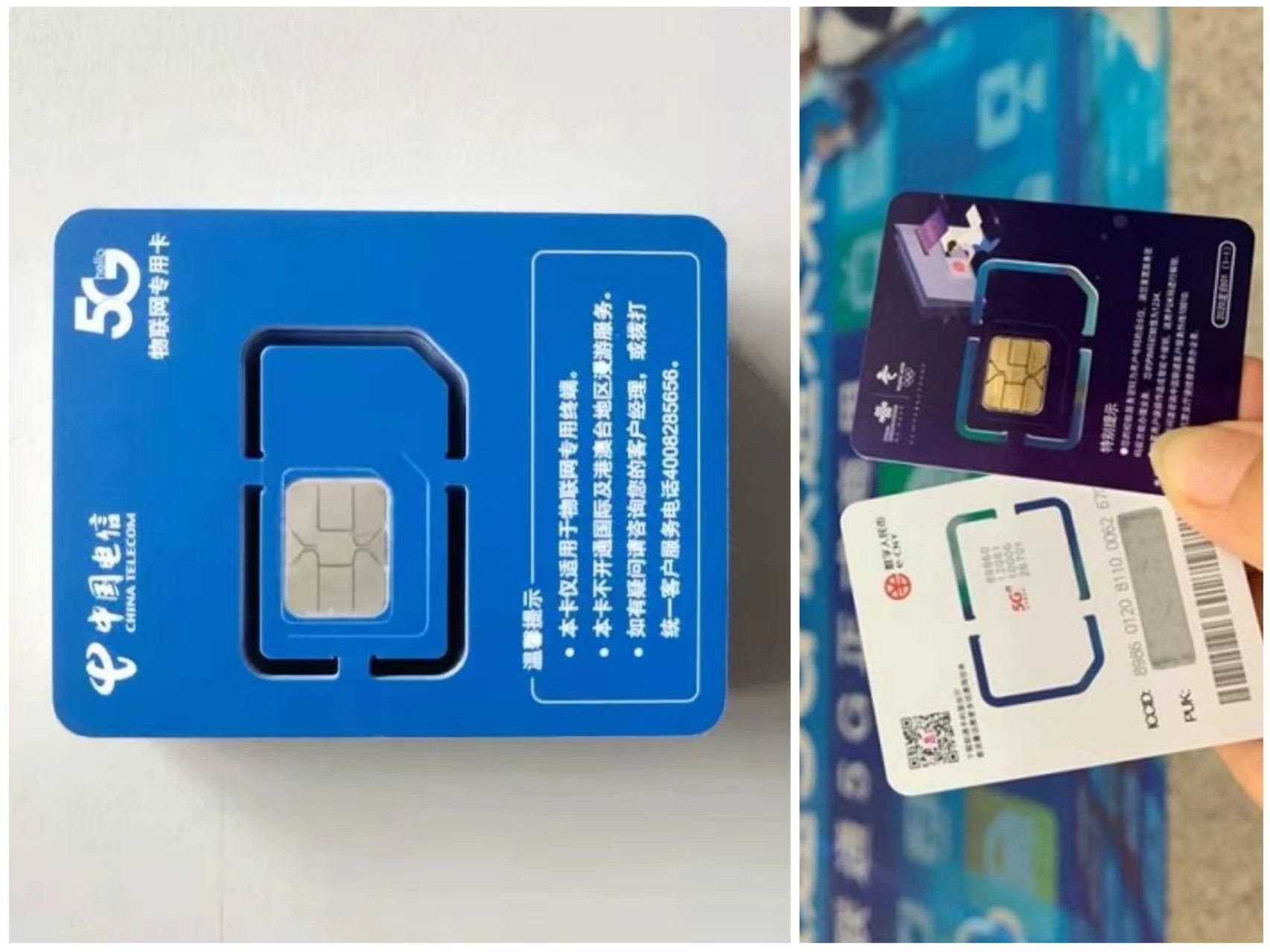

The YLFP-SIM-1 model is designed for 1-chip SIM cards. For dual-chip SIM card processing, we recommend the YLFP-SIM-2 model.
