Zigzag Card Packaging Machine Automatic For Double Cards Or Insert Mini Booklet

Zigzag Card Packaging Machine Automatic For Double Cards Or Insert Mini Booklet
Zigzag Card Packaging Machine Automatic For Double Cards Or Insert Mini Booklet Zigzag Card Packaging Machine Automatic For Double Cards Or Insert Mini Booklet Zigzag Card Packaging Machine Automatic For Double Cards Or Insert Mini Booklet Zigzag Card Packaging Machine Automatic For Double Cards Or Insert Mini Booklet
Basic Information
Place of Origin: China
Brand Name: YL
Model Number: YUP-600
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: 1 plywood case
Delivery Time: 30-35days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 set per 35 days
Get Best Price
Chat Now
Detail Information
Control Method: PLC Programming+ Step System Dimension: L3500×W1750×H1860mm
Packaging Material: BOPP Film Or Similar 0.025mm~0.035 Mm Thick Card Size: 0.25-0.8mm Thick CR80 Cards
Packaging Size: Folded Film 120 Mm Wide (for Standard Card ) Or 60mm Wide (for Half Size Card), Film Roll Inner Diameter 3 Inches And External Diameter Less Than 450 Mm, Speed: About 6000 Pcs/hr
Weight: About 800kgs Air Consumption: 50L/min
Highlight:

Zigzag Card Packaging Machine

,

Card Packaging Machine Automatic

Product Description

Zigzag Middle Speed Card Packaging Machine for Double Cards Or Insert Mini Booklet
Product Specifications
Attribute Value
Control Method PLC programming + Step System
Dimension L3500×W1750×H1860mm
Packaging Material BOPP film or similar 0.025mm~0.035 mm thick
Card size 0.25-0.8mm thick CR80 cards
Packaging Size Folded film 120 mm wide (for standard card) or 60mm wide (for half size card), Film roll inner diameter 3 inches and external diameter less than 450 mm
Speed about 6000 pcs/hr
Weight About 800kgs
Air Consumption 50L/min
Product Overview

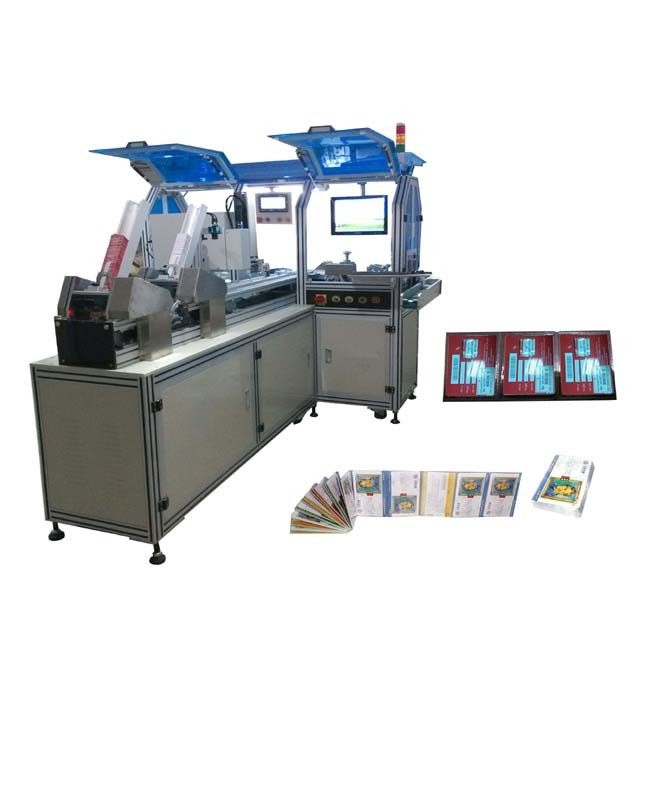

The Zigzag Middle Speed Automatic Ultrasonic Card Packing Machine YHP-600 is designed for efficient packaging of double cards or inserting mini booklets. Utilizing continuous ultrasonic welding technology with PLC control, this machine offers high-speed operation with reliable performance and perfect welded patterns.
Zigzag Card Packaging Machine Automatic For Double Cards Or Insert Mini Booklet 0
Key Features
  • Special rubber wheel and air absorbing belt ensure flat and stable film conveyance
  • Automatic detection for card overlapping and absence with error notification
  • Optional second feeder for double cards or mini booklet insertion
  • Continuous ultrasonic welding technology for clear, beautiful sealing patterns
  • Configurable for single-card or multiple-card packing
  • Optional visual inspection system (CCD) for serial number or barcode verification
Zigzag Card Packaging Machine Automatic For Double Cards Or Insert Mini Booklet 1
Technical Parameters
Power Supply AC 380V/50 HZ
Total Power 5KW
Air Source 6 kg/c㎡ (Dry)
Operator 1 person
Zigzag Card Packaging Machine Automatic For Double Cards Or Insert Mini Booklet 2
Applications
Ideal for packaging various cards including cell phone charge cards, standard and smaller SIM cards in bulk. Also known as Speedy Card Packaging Machine, High-speed Card Wrapping Machine, Card Wrapper or Card Packer YUP-600.
Zigzag Card Packaging Machine Automatic For Double Cards Or Insert Mini Booklet 3
