Name: Automatic Hot Welding Card Packaging Machine PLC Controlled 6000 Pcs/Hr
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YHP-600
Availability: InStock

Detail Information

Control Method:	PLC Programming+ Step System	Dimension:	L2650×W11000×H1800mm
Packaging Material:	BOPP Film Or Similar 0.025mm~0.035 Mm Thick	Card Size:	0.25-0.8mm Thick CR80 Cards
Packaging Size:	Folded Film 105mm Wide Or Single Film Roll 210mm Wide. Film Roll Inner Diameter 3 Inches And External Diameter Less Than 450 Mm,	Speed:	About 6000 Pcs/hr
Highlight:	Automatic Card Packaging Machine , Card Packaging Machine PLC Controlled , Automatic Card Packing Machine

Product Description

Automatic Hot Welding Card Packaging Machine For Single Card Or Multi Card Packing

Product Specifications

Control Method	PLC programming + Step System
Dimension	L2650 × W11000 × H1800mm
Packaging Material	BOPP film or similar 0.025mm~0.035 mm thick
Card Size	0.25-0.8mm thick CR80 cards
Packaging Size	Folded film 105mm wide or single film roll 210mm wide. Film roll inner diameter 3 inches and external diameter less than 450mm
Speed	Approximately 6000 pcs/hr

Product Description

Keywords: card packaging machine, card wrapping machine, card packer, card wrapper, card machine, smart card machine

Machine Overview

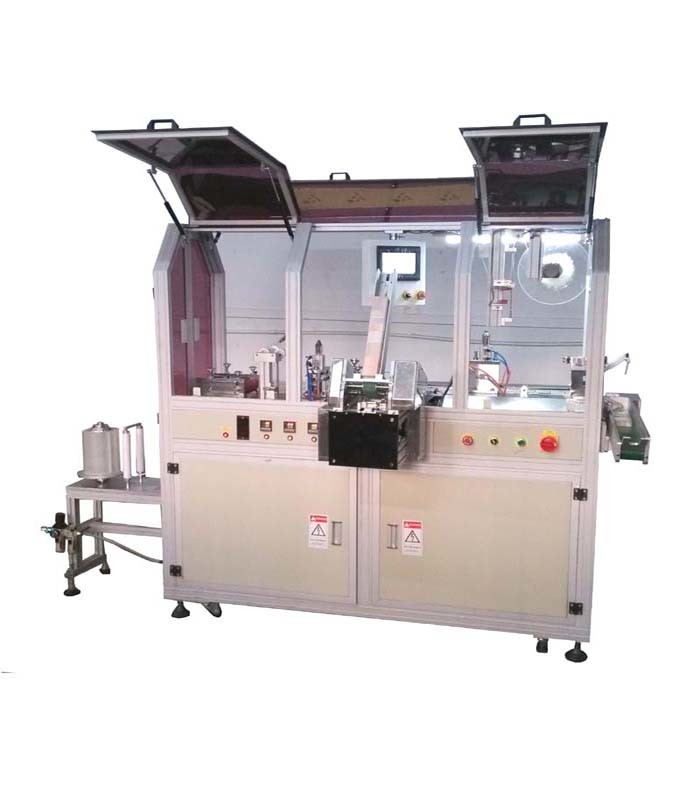

The Automatic Hot-sealing Card Packing Machine YHP-600 is designed for high-volume packaging of standard cards such as telephone charging cards. It utilizes hot-welding and high-pressure packing technology with card feeding and film conveyance controlled by stepping motors. The system features PLC automation with a user-friendly interface and produces straight-line welding patterns.

Key Features

Automatic monitoring and alarm system for card overlapping or absence detection
Compatible with paper or plastic cards over 0.25mm thick
Supports packing film as thin as 0.025mm

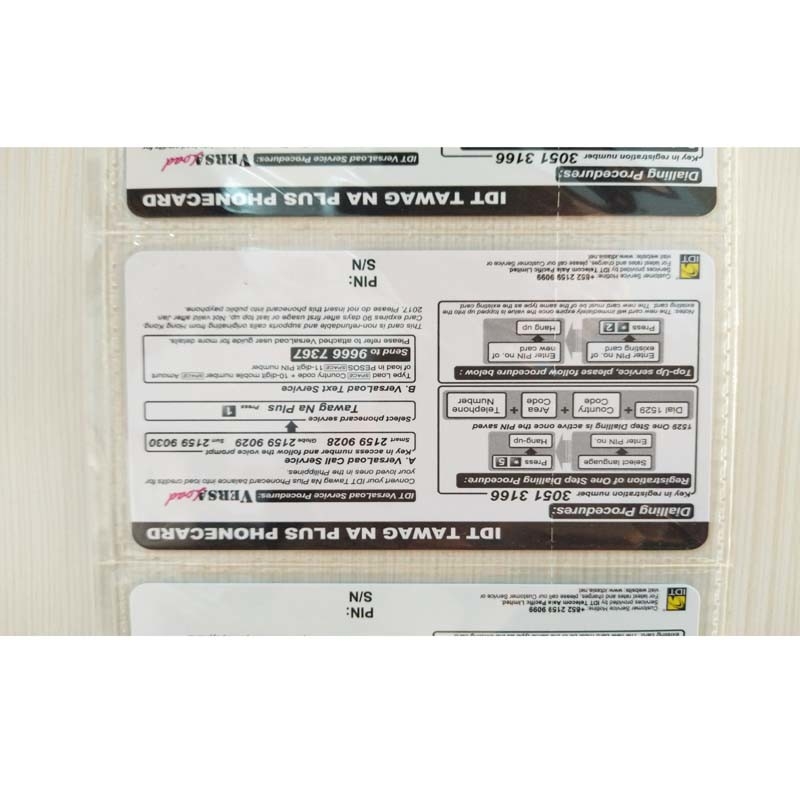

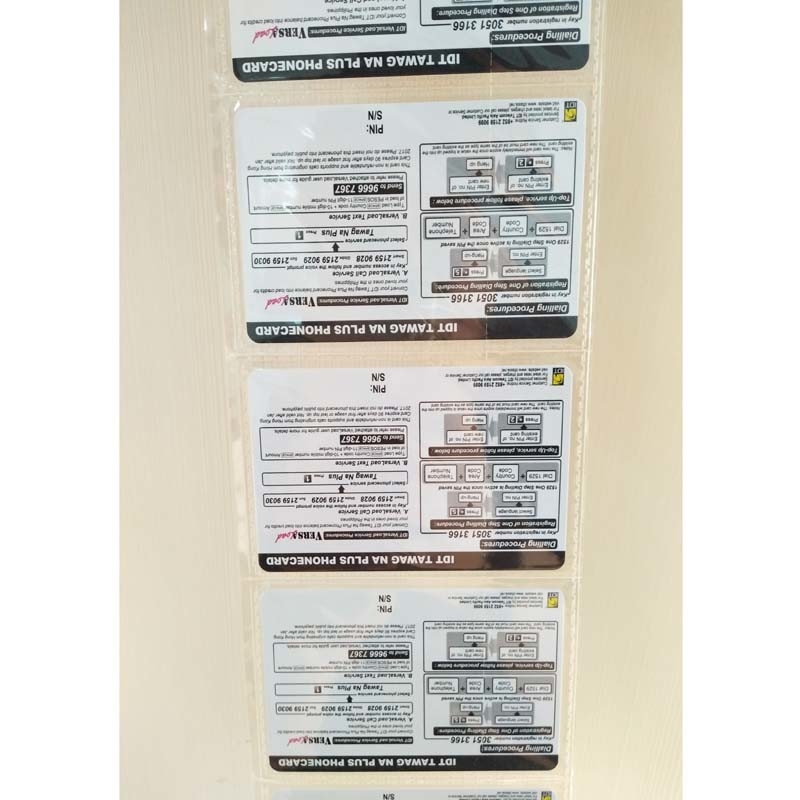

Single-card or multiple-card packing functionality with adjustable chain collection quantity
Double mold welding system with easy mold replacement
Adjustable packing bag dimensions

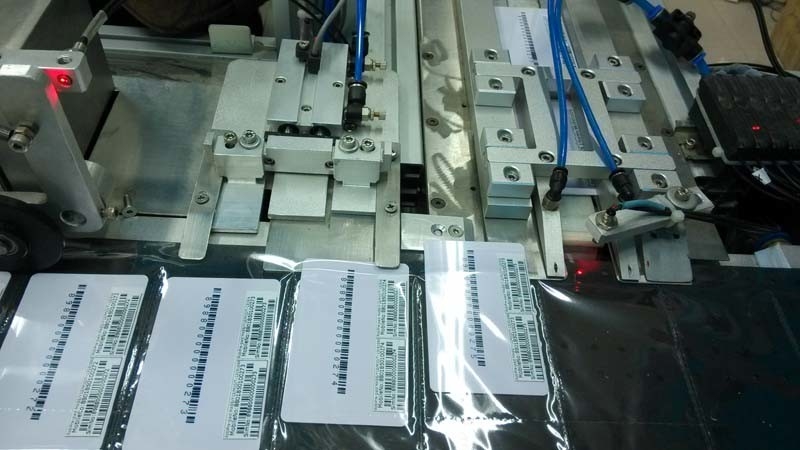

Optional visual inspection system for checking card serial numbers or barcodes

Technical Parameters

Power Supply	AC 380V/50 HZ
Total Power	2.5KW
Air Source	6 kg/cm² (Dry)
Air Consumption	50L/min
Weight	600Kg
Speed	Maximum 6000 pcs/hr
Operator Requirement	1 person

Applications

The YHP-600 is suitable for various card packaging applications, also known as Card Packaging Machine, Card Wrapping Machine, Card Wrapper or Card Packer.

Included Spare Parts

No.	Name	Specification	Quantity
1	Card feeding belt	320X45X5mm	1PCS
2-11	Synchronous belts	Various sizes (width 10-20mm)	10PCS total
12	Spring		1PCS
13	Feeder rubber roller		2PCS
14-15	Relay & Holder	DC24V	2PCS each
16-17	Fuse & Holder	10A	3PCS fuse, 1PCS holder
18-21	Heating components	Various specifications	4PCS total

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YHP-600

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	30-35days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 set per 35 days
