Detail Information

Mag. Stripe Model:	ISO/IEC7811 HiCo/LoCo	Mag. Stripe Width:	12.7mm, Wheel Diameter: 380mm
Mag. Stripes Qty.:	5~8 Tapes Optional	Layout:	3X8, 4X8, 5X5 (optional)
Origin:	China	Productivity:	10-12m/min (film Roll) Or 1000-1300 Sheets/h (sheet)
Applicable Materials:	Plastic Sheet: 0.25~0.8mm Thick Max. Width: 580mm, Roll Film: 0.04-0.2mm Thick Inner Diameter:3 Inch; External Diameter: ＜20 Inches(500mm); Max. Width: 580mm
Highlight:	Automatic Magnetic Stripe Laying System , PLC Control Magnetic Stripe Laying System

Product Description

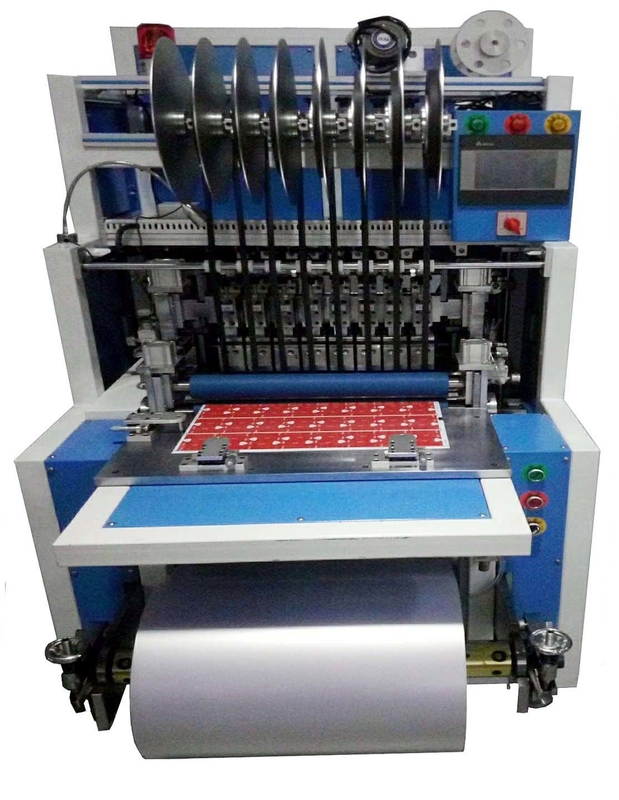

Automatic Magnetic Stripe Laying System / Magnetic Stripe Pasting Machine

Product Overview

The YMSL-1000 Magnetic Stripe Applicator is designed for precise application of magnetic stripes onto plastic sheets or film rolls (including PVC and PET) through controlled heating and pressurization. The system offers three operational modes: roll-to-sheet, roll-to-roll, or sheet-to-sheet, with full automation for reliable performance.

Key Features

PLC-controlled system with intuitive interface
Servo motor control for precise sheet feeding and speed regulation
Rolling wheel clamping devices for accurate magnetic stripe alignment
Automatic tension control for smooth material feeding
Air cylinder-driven film cutting unit
Integrated waste collection system for magnetic stripe back foil
Air shaft loading system for easy roll handling
Precision temperature control (±0.5℃) with imported components
Individually adjustable temperature and pressure for each laying head

Technical Specifications

Power Supply	AC 380V/50 HZ	Magnetic Stripe Model	ISO/IEC7811 HiCo/LoCo
Air Resource	6 kg/c㎡ (dry)	Magnetic Stripe Width	12.7mm, wheel diameter: 380mm
Power	8.5KW	Magnetic Stripes Quantity	5-8 tapes (optional)
Temperature Range	0-400℃ (adjustable)	Layout Options	3X8, 4X8, 5X5 (optional)
Temperature Precision	±0.5℃	Operator Requirement	1
Laying Precision	±0.15mm	Dimensions	L2850×W1200×H1800mm
Weight	Approximately 800Kg	Productivity	10-12m/min (film roll) or 1000-1300 sheets/h (sheet)

Material Compatibility

Plastic Sheets: 0.25-0.8mm thickness, maximum width: 580mm

Roll Film: 0.04-0.2mm thickness, inner diameter: 3 inch, external diameter: <20 inches (500mm), maximum width: 580mm

Also known as: Automatic Magnetic Stripe Pasting Machine, Magnetic Stripe Paster, or Magnetic Stripe Applicator

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YSML-1000

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	20-25days
Payment Terms:	D/A, D/P, T/T, Western Union
Supply Ability:	5sets per month
