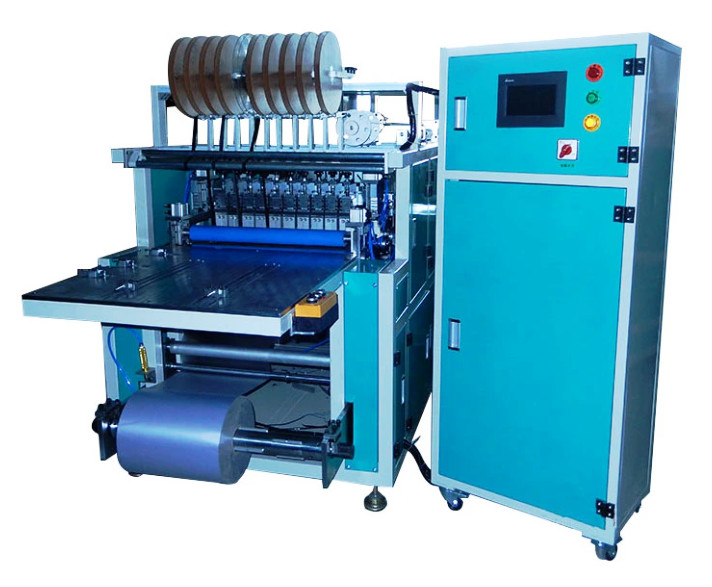

Name: 8.5KW 8 Head Magnetic Stripe Laying Machine For Plastic Cards YMSL-1000
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YMSL-1000
Availability: InStock

Detail Information

Air Resource:	6 Kg/c㎡(dry)	Machine Name:	Magnetic Tape Automatic Magnetic Stripe Laying Machine YMSL-1000
Power:	8.5KW	Mag. Stripes Qty.:	5~8 Tapes Optional
Temperature:	0-400℃(adjustable)	Sheet Layout:	3X8, 4X8, 5X5 (optional)
Highlight:	magnetic cards stripe laying machine , 8.5KW Magnetic Stripe Laying Machine , 8 Heads Magnetic Stripe Laying Machine

Product Description

8 Heads 12.7mm Automatic Magnetic Stripe Laying Machine YMSL-1000 For Cards

Key Specifications

Air resource	6 kg/c㎡(dry)
Power	8.5KW
Mag. stripes Qty.	5~8 tapes optional
Temperature	0-400℃(adjustable)
Sheet layout	3X8, 4X8, 5X5 (optional)

Product Overview

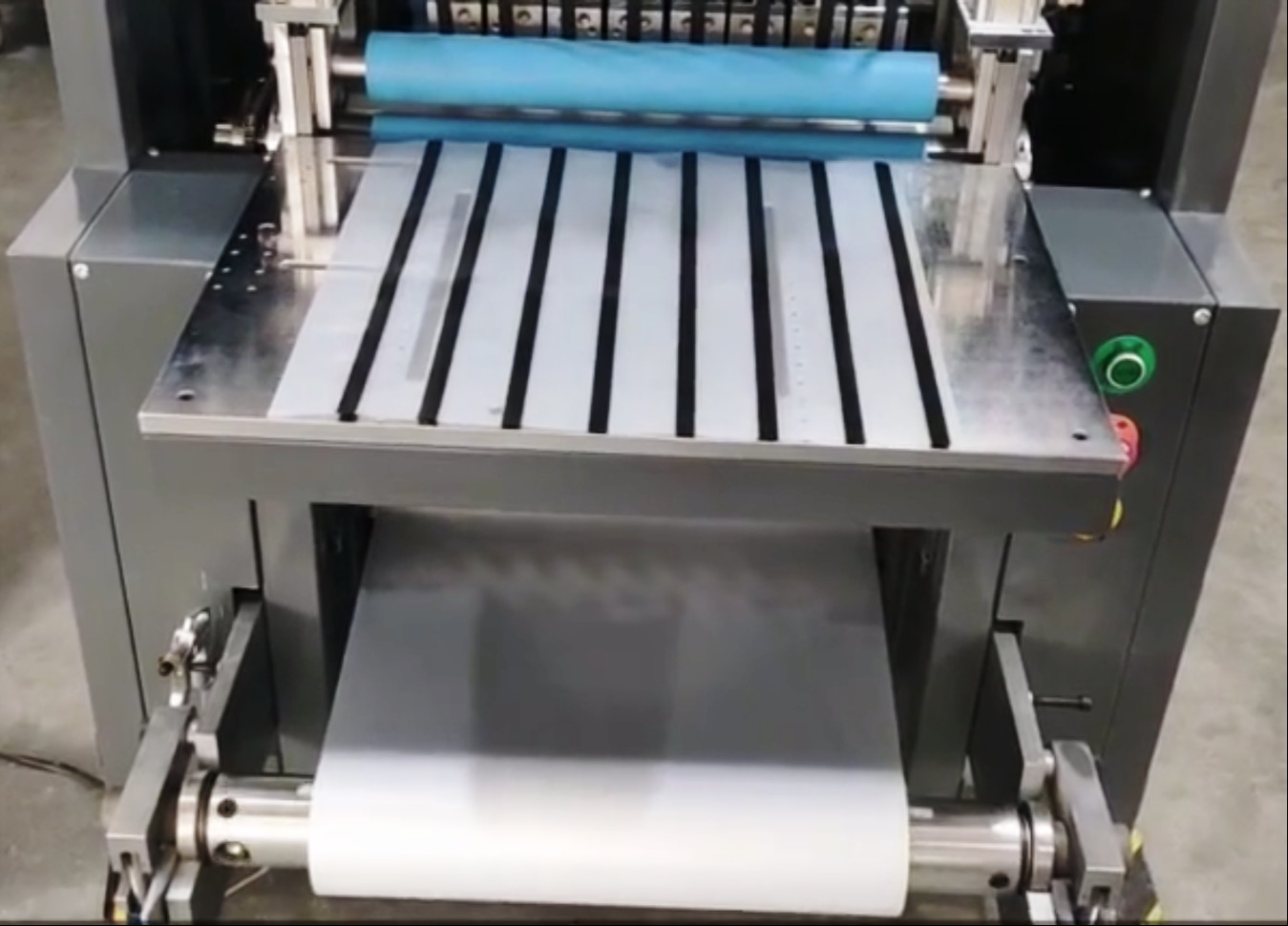

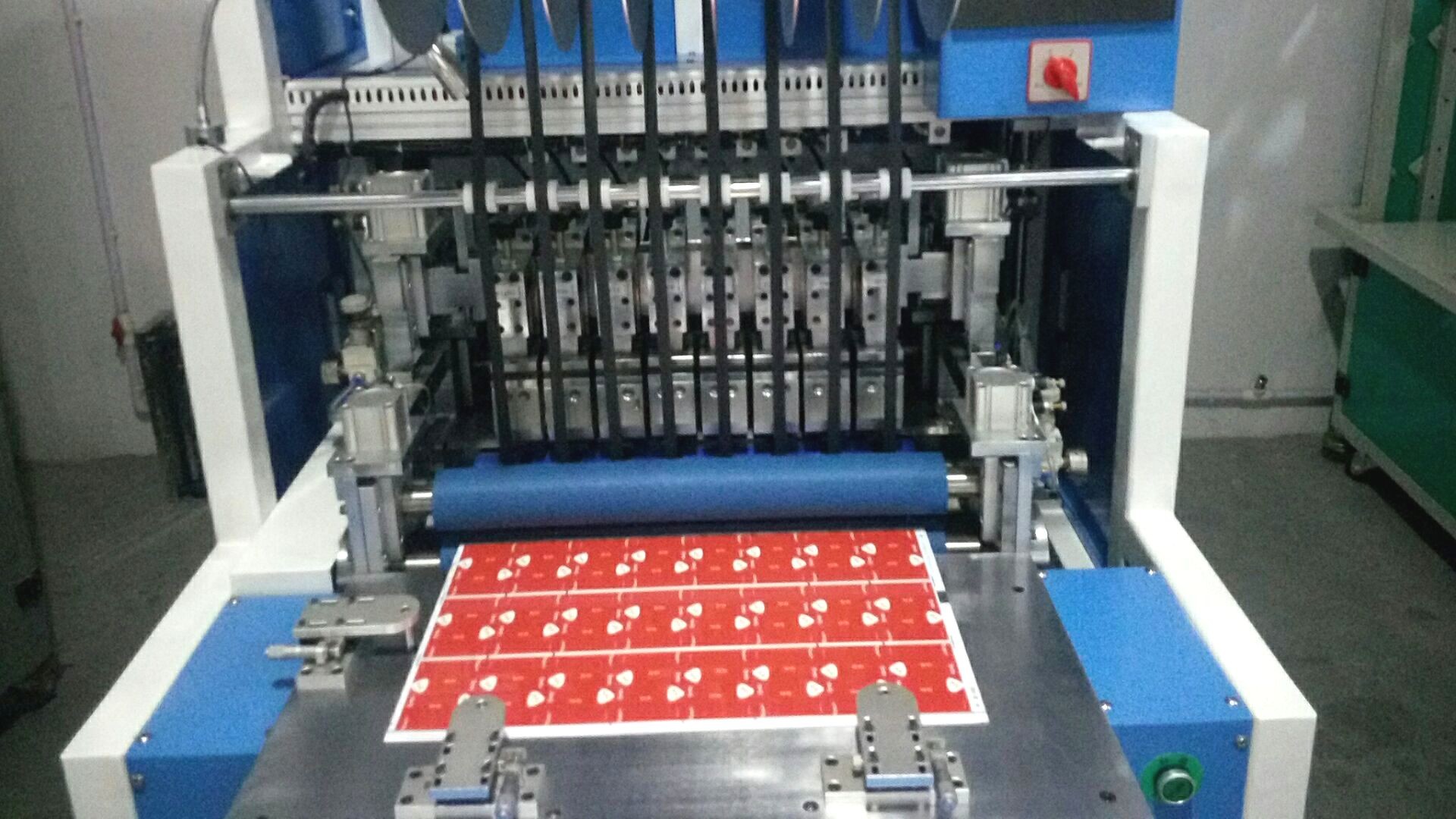

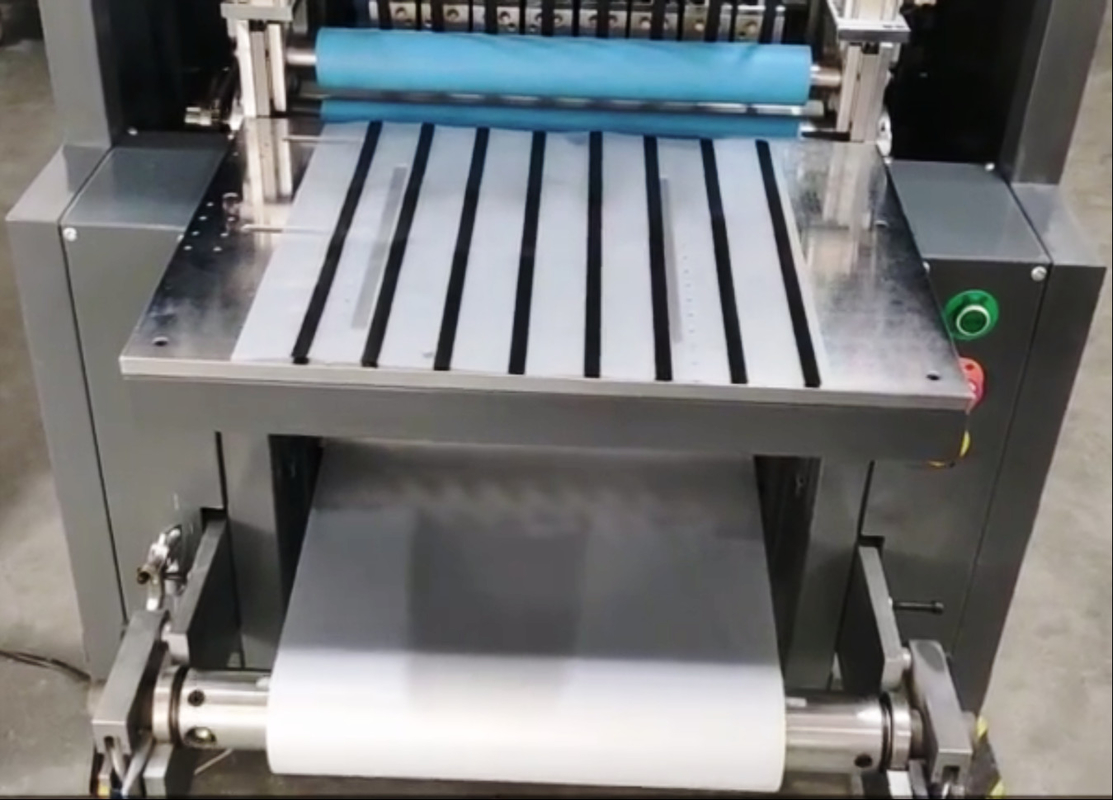

The YMSL-1000 Automatic Magnetic Stripe Laying Machine is designed for precise application of magnetic stripes onto plastic sheets or film rolls (including PVC and PET) through controlled heating and pressure. The machine supports three material handling modes: roll-to-sheet, roll-to-roll, and sheet-to-sheet, with fully automated operation for consistent, reliable performance.

Key Features

PLC-controlled system with intuitive interface for easy operation
Servo motor-driven sheet feeding with adjustable speed control
Rolling wheel clamping system ensures precise magnetic stripe alignment
Automatic tension control maintains smooth material feed
Air cylinder-driven film cutting unit for reliable operation
Integrated waste collection system for magnetic stripe back foil
Air shaft loading system simplifies film roll changes
Precision temperature control (±0.5℃) with imported components
Individual adjustment of temperature and pressure for each laying head

Technical Specifications

Power supply: AC 380V/50 HZ

Total power: 8.5KW

Control system: PLC + servo system

Air source: 6 kg/cm²

Laying accuracy: ±0.15mm

Temperature range: 0-400℃ (±0.5℃ control)

Magnetic tape width: 6.35mm/8.4mm/12.7mm

Productivity: 1000-1300 sheets/hour

Dimensions: 2850×1200×1800mm (L×W×H)

Weight: Approximately 800Kg

Material Compatibility

The YMSL-1000 is compatible with various materials including paper cards, PVC, ABS, PET, and PVC/ABS composite materials. It handles:

Coil film thickness: 0.04-0.2mm
Sheet thickness: 0.25-0.8mm
Maximum material width: 580mm
Film roll inner diameter: 3 inch; external diameter: <500mm

Operation Notes

The machine requires only one operator and features automatic synchronization of magnetic stripe mounting and cutting processes. The recycling system collects magnetic strip foil waste during operation, maintaining a clean working environment.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YMSL-1000

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export Standard plywood case
Delivery Time:	About 30-35days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 set per 35 days
