Name: 380V PLC Control Magnetic Stripe Laying Machine For HiCo LoCo Plastic Cards
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YMSL-1000
Availability: InStock

Detail Information

Power Supply:	AC 380V/50 HZ	Mag. Stripe Model:	ISO/IEC7811 HiCo/LoCo
Productivity:	10-12m/min (film Roll) Or 1000-1300 Sheets/h (sheet)	Applicable Materials:	Plastic Sheet: 0.25~0.8mm Thick Max. Width: 580mm, Roll Film: 0.04-0.2mm Thick Inner Diameter:3 Inch; External Diameter: ＜20 Inches(500mm); Max. Width: 580mm
Dimension:	L2850×W1200×H1800mm	Weight:	Approximately 800Kg
Highlight:	380V Magnetic Stripe Laying Machine , PLC Control Magnetic Stripe Laying Machine

Product Description

PLC Magnetic Stripe Laying Machine Pasting For Hico/Loco Plastic Magnetic Card

Product Specifications

Power supply	AC 380V/50 HZ
Mag. stripe model	ISO/IEC7811 HiCo/LoCo
Productivity	10-12m/min (film roll) or 1000-1300 sheets/h (sheet)
Applicable materials	Plastic sheet: 0.25~0.8mm thick Max. width: 580mm, roll film: 0.04-0.2mm thick Inner diameter:3 inch; external diameter: ＜20 inches(500mm); Max. width: 580mm
Dimension	L2850×W1200×H1800mm
Weight	Approximately 800Kg

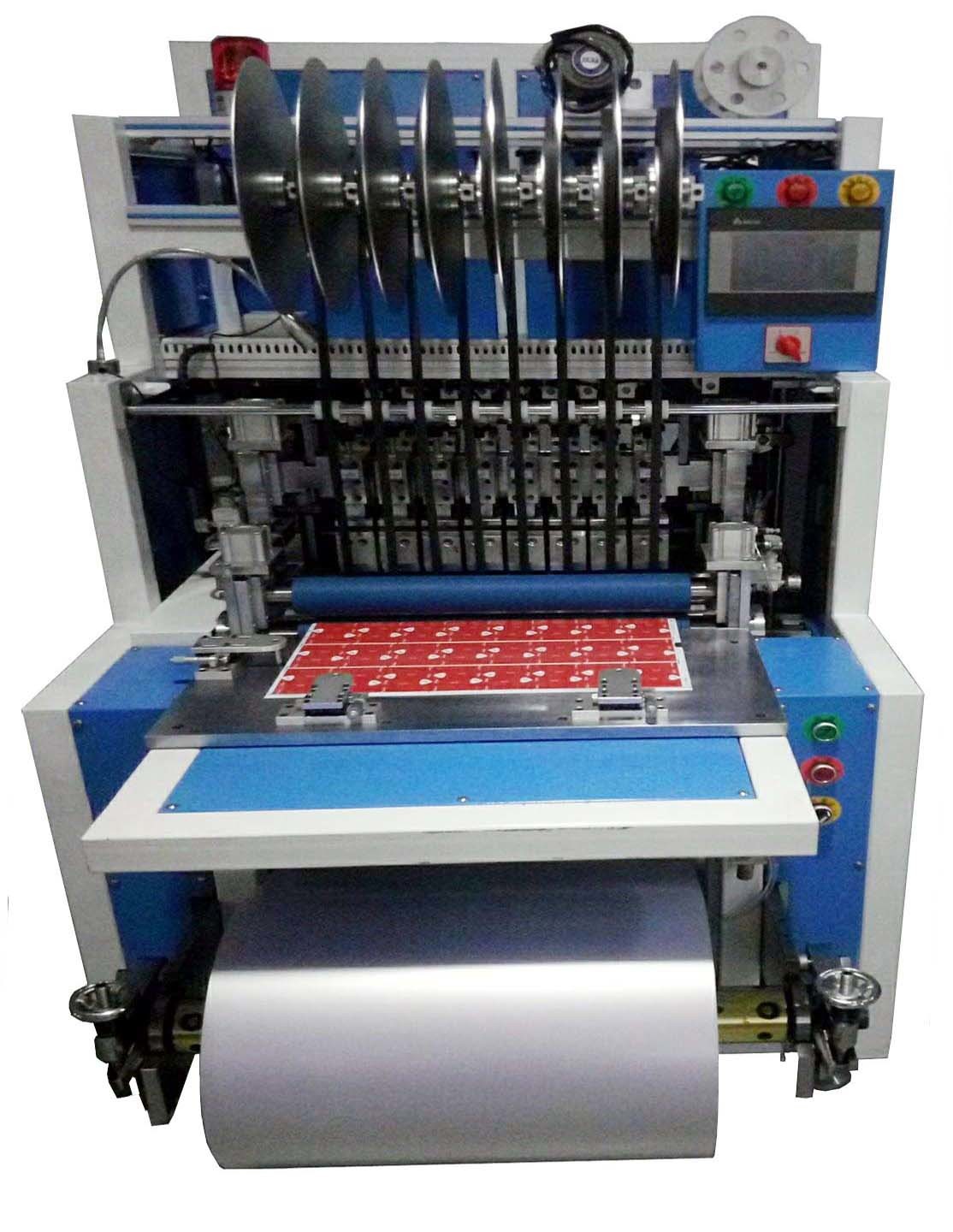

Automatic Magnetic Stripe Laying Machine YMSL-1000

Also known as: Automatic Magnetic Stripe Pasting Machine, Magnetic Stripe Paster, Magnetic Stripe Applicator

Product Overview

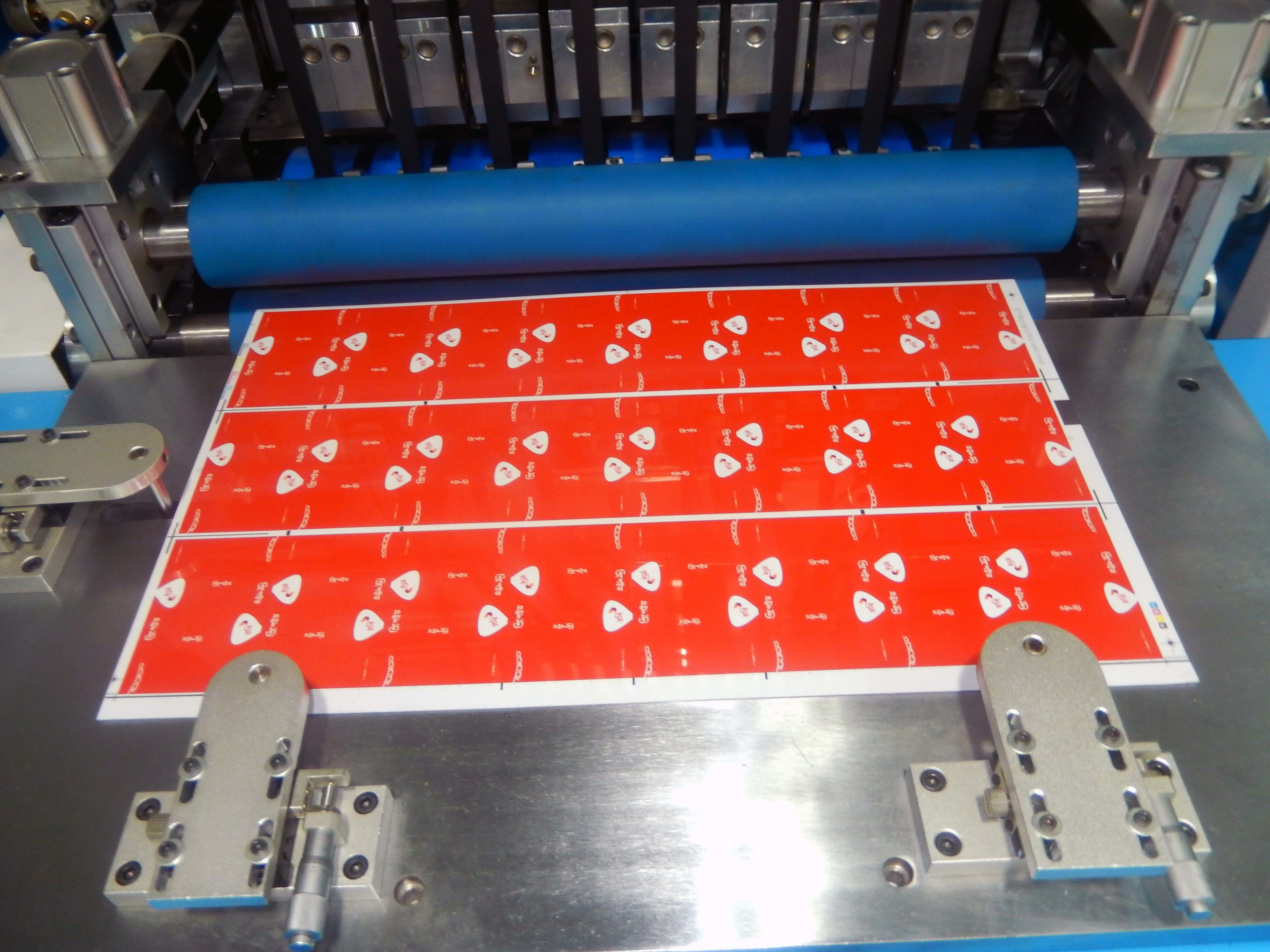

This machine is designed to precisely apply magnetic stripes onto plastic sheets or film rolls (such as PVC and PET) through heating and pressurization. It offers three material feeding and collection modes: roll-to-sheet, roll-to-roll, or sheet-to-sheet. The fully automated process ensures stable and reliable operation for both ordinary and transferable magnetic stripes.

Key Features

PLC-controlled system with user-friendly interface
Servo motor control for sheet feeding, speed, and film movement
Rolling wheel clamping devices with adjustable air cylinder pressure for precise stripe application
Automatic tension control system for smooth material feeding
Air cylinder-driven film cutting unit for reliable operation
Automatic waste collection system for magnetic stripe back foil

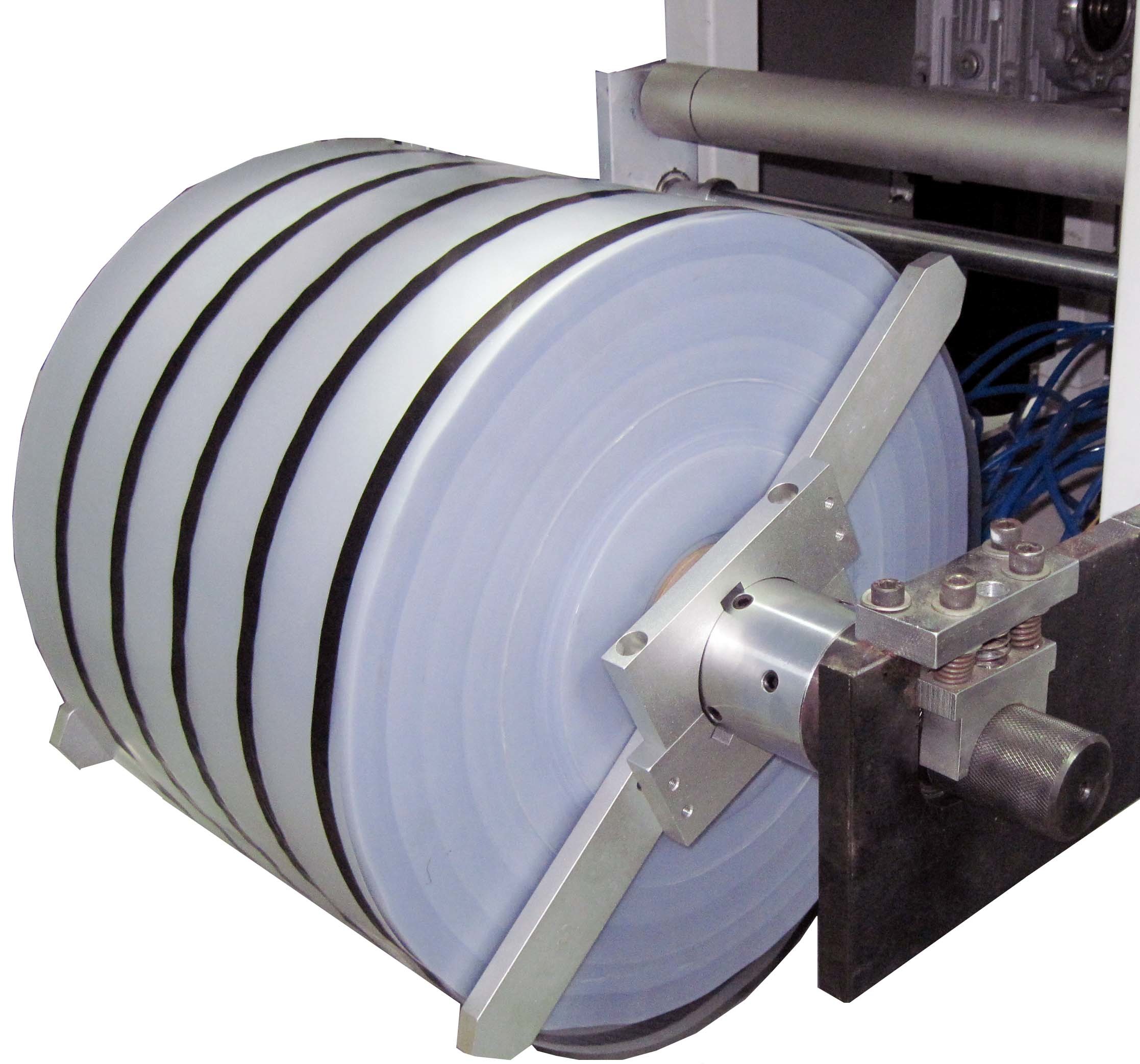

Air shaft loading system for easy film roll handling
Precise temperature control (±0.5℃) with imported temperature probe
Individual temperature and pressure adjustment for each laying head

Technical Parameters

Power supply	AC 380V/50 HZ	Mag. stripe model	ISO/IEC7811 HiCo/LoCo
Air resource	6 kg/c㎡(dry)	Mag. stripe width	12.7mm, wheel diameter: 380mm
Power	8.5KW	Mag. stripes Qty.	5~8 tapes optional

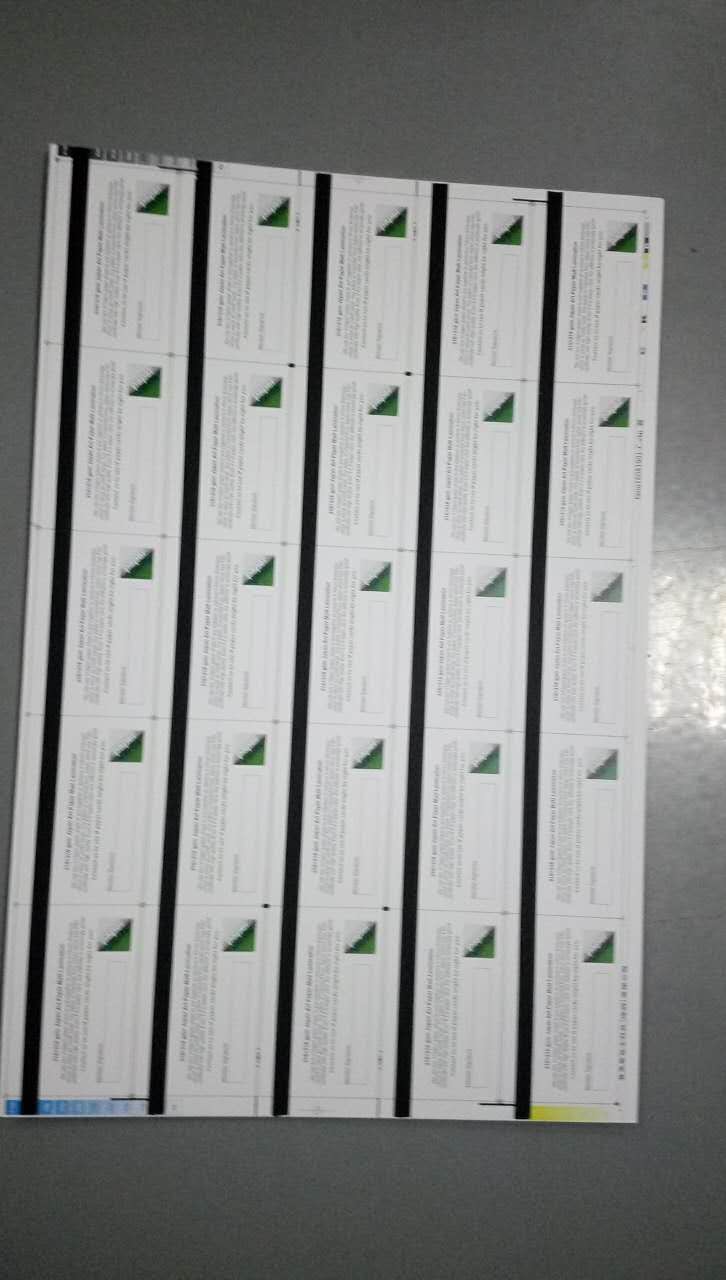

Temperature	0-400℃(adjustable)	layout	3X8, 4X8, 5X5 (optional)
Temp. precision	±0.5℃	Operator number	1
Mag. stripe laying precision	±0.15mm	Dimension	L2850×W1200×H1800mm
Weight	Approximately 800Kg	Applicable materials	Plastic sheet: 0.25~0.8mm thick Max. width: 580mm, roll film: 0.04-0.2mm thick Inner diameter:3 inch; external diameter: ＜20 inches(500mm); Max. width: 580mm
Productivity: 10-12m/min (film roll) or 1000-1300 sheets/h (sheet)

Applications

This machine is ideal for producing various plastic magnetic cards requiring precise magnetic stripe application, including ID cards, access cards, and payment cards.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YMSL-1000

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	30-35days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 set per 35 days
