Name: Manual Magnetic Stripe Bonding Machine 3KW 200 - 400 Sheets/H
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YMSB-1
Availability: InStock

Detail Information

Power Supply:	AC 380V/50 HZ	Air Resource:	6 Kg/c㎡(dry)
Power:	3KW	Temperature:	0-400℃(adjustable)
Temp. Precision:	±2℃	Mag. Stripe Bonding Precision:	±0.2mm
Weight:	150Kg	Productivity:	200-400 Sheets/h
Mag. Stripe Model:	ISO/IEC7811 HiCo/LoCo	Mag. Stripe Width:	12.7mm / 6.35mm, Wheel Diameter: 380mm
Mag. Stripes Qty.:	5~8 Tapes Optional	Layout:	3X8, 4X8, 5X5 (optional)
Operator Number:	1	Dimension:	L800×W700×H1500mm
Applicable Materials:	Plastic Sheet: 0.25~0.8mm Thick
Highlight:	Magnetic Stripe Bonding Machine 3KW , Manual Magnetic Stripe Bonding Machine

Product Description

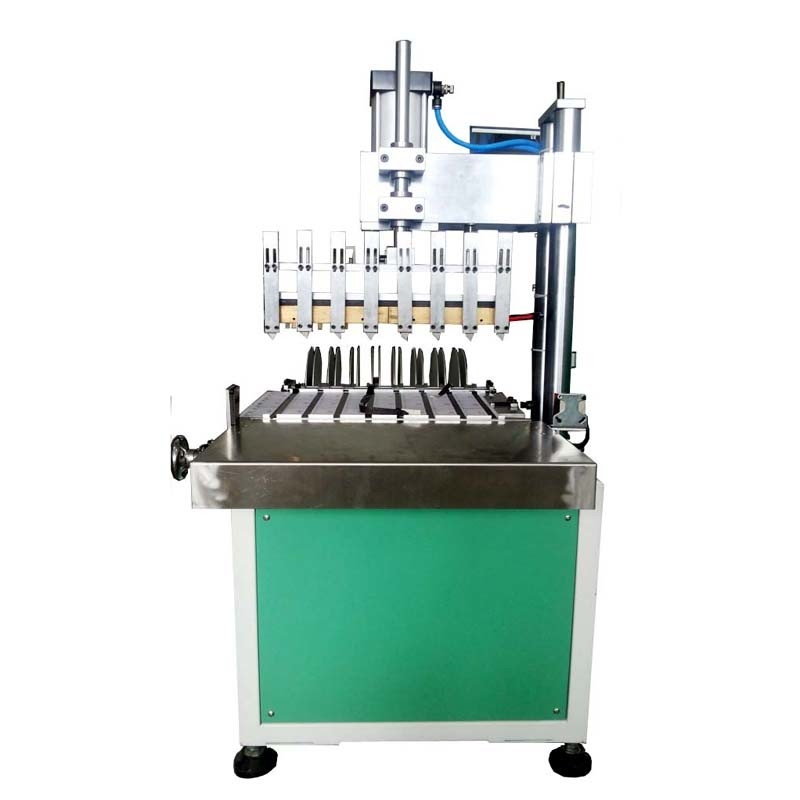

Manual Magnetic Stripe Bonding Machine YMSB-1

Key Specifications

Attribute	Value
Power supply	AC 380V/50 HZ
Air resource	6 kg/c㎡(dry)
Power	3 KW
Temperature	0-400℃ (adjustable)
Temperature precision	±2℃
Magnetic stripe bonding precision	±0.2mm
Weight	150Kg
Productivity	200-400 sheets/h
Magnetic stripe model	ISO/IEC7811 HiCo/LoCo
Magnetic stripe width	12.7mm / 6.35mm, wheel diameter: 380mm
Magnetic stripes quantity	5~8 tapes optional
Layout	3X8, 4X8, 5X5 (optional)
Operator number	1
Dimension	L800×W700×H1500mm
Applicable materials	Plastic sheet: 0.25~0.8mm thick

Product Overview

The Manual Magnetic Stripe Bonding Machine YMSB-1 is designed for precise positioning and bonding of magnetic strips to plastic sheets before lamination.

Key Features

Relay-controlled operation for reliable performance
Precision temperature control with imported temperature controller
Time-controlled operation via time relay
Double air cylinder power system with adjustable bonding head pressure
High-precision bonding with ±0.2mm accuracy
Versatile compatibility with ISO/IEC7811 HiCo/LoCo magnetic stripes
Multiple layout options available (3X8, 4X8, 5X5)

Technical Specifications

The YMSB-1 offers adjustable temperature range (0-400℃) with ±2℃ precision, delivering consistent bonding quality at production rates of 200-400 sheets per hour.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YMSB-1

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	25-30days
Payment Terms:	T/T, Western Union, MoneyGram, Western Union
Supply Ability:	5 sets per quater
