Name: Semi Automatic Magnetic Card Stripe Bonding Machine For 0.25 - 0.8mm thick sheet
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YMSB-1
Availability: InStock

Semi Automatic Magnetic Card Stripe Bonding Machine For 0.25 - 0.8mm thick sheet

Basic Information

Place of Origin:	China
Brand Name:	YL
Model Number:	YMSB-1

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export standard plywood case
Delivery Time:	30-35days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 set per 35 days

Get Best Price

Chat Now

Detail Information

Applicable Materials:	Plastic Sheet: 0.25~0.8mm Thick	Dimension:	L800W700H1500mm
Weight:	About 150kgs	Productivity::	200-400 Sheets/h
Mag. Stripe Model:	ISO/IEC7811 HiCo/LoCo	Mag. Stripe Width::	12.7mm / 6.35mm, Wheel Diameter: 380mm
Highlight:	Semi Automatic Magnetic Card Stripe Machine , Semi Auto Magnetic Card Stripe Machine , 0.8mm Magnetic Stripe Bonding Machine

Product Description

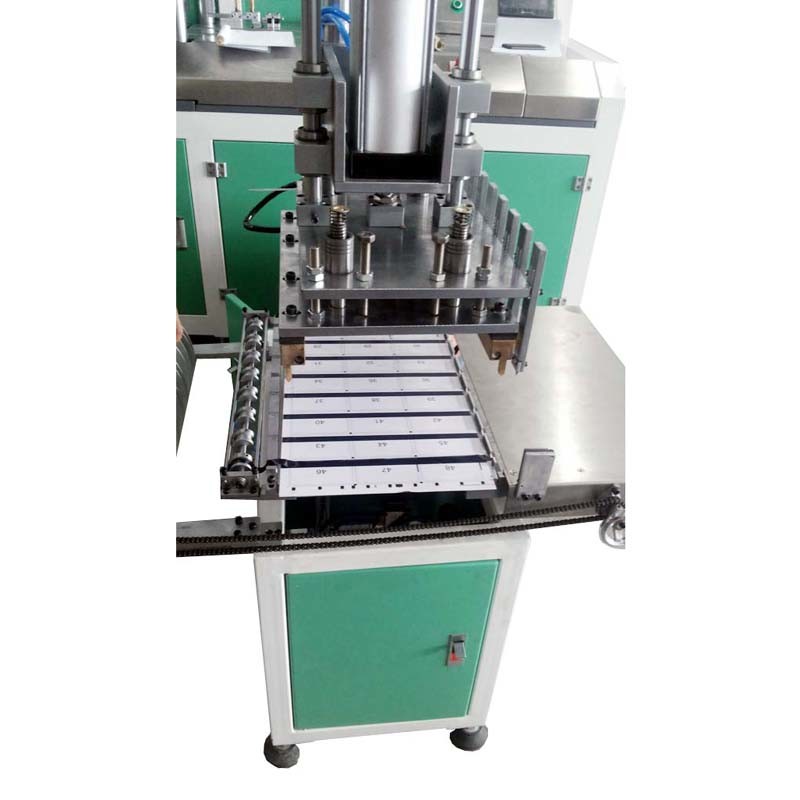

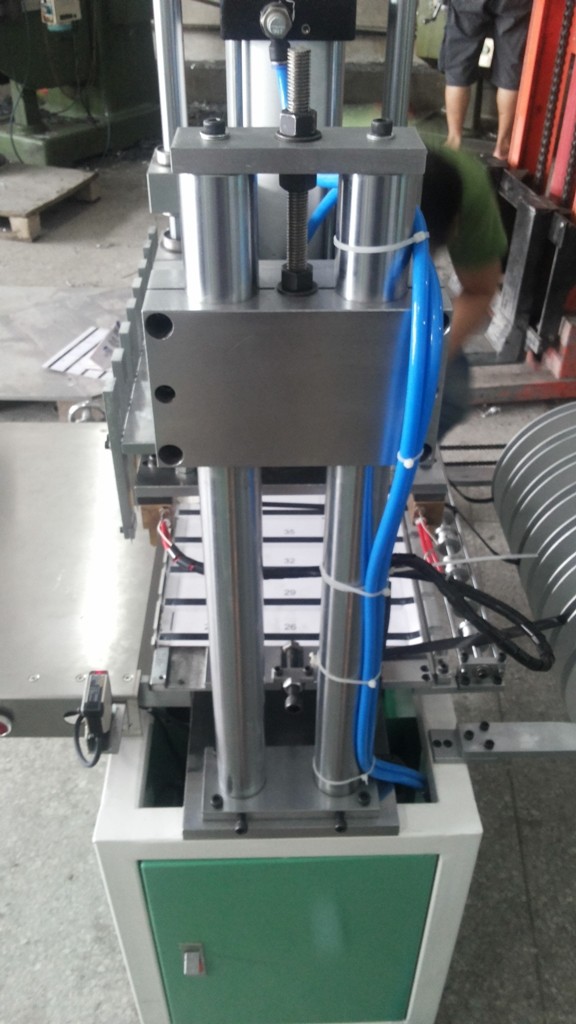

Semi Automatic Magnetic Stripe Bonding Machine YMSB-1

Precision Magnetic Strip To Plastic Sheet (±0.2mm)

Manual Magnetic Stripe Bonding Machine, Card Magnetic Stripe Bonding Machine, Magnetic Stripe Laying Machine, Magnetic Stripe Applicator, Magnetic Stripe Pasting Machine, Card Machine, Smart Card Machine

Product Overview

The Magnetic Stripe Bonding Machine YMSB-1 is designed for precise positioning and bonding of magnetic strips to plastic sheets before lamination, with exceptional ±0.2mm precision.

Key Specifications

Attribute	Value
Applicable materials	Plastic sheet: 0.25~0.8mm thick
Dimension	L800 × W700 × H1500mm
Weight	150kg
Productivity	200-400 sheets/hour
Magnetic stripe model	ISO/IEC7811 HiCo/LoCo
Magnetic stripe width	12.7mm / 6.35mm, wheel diameter: 380mm

Technical Features

Relay-controlled operation with imported temperature controller
Double air cylinder power with adjustable bonding head pressure
Temperature range: 0-400℃ (adjustable) with ±2℃ precision
Power supply: AC380V/50HZ, 3KW
Air resource requirement: 6 kg/cm² (dry)
Magnetic stripes quantity: 5~8 tapes optional
Layout options: 3×8, 4×8, 5×5 (optional)
Single operator operation

Applications

Ideal for manufacturing of cards requiring magnetic stripes, including smart cards, ID cards, and various plastic cards with magnetic encoding capabilities.
