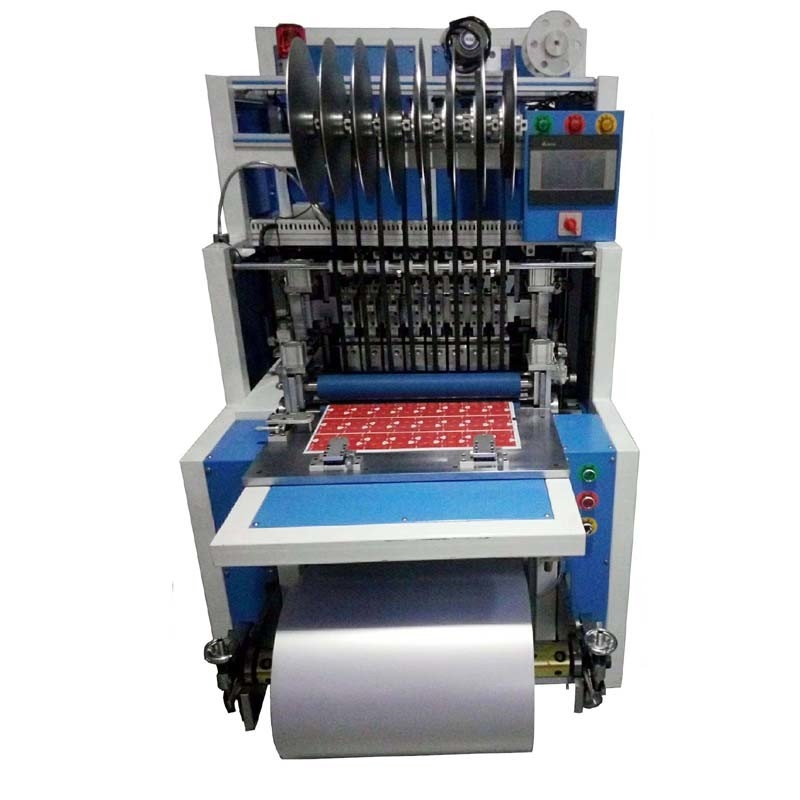

Name: 8.5KW Automatic Magnetic Stripe Laying Machine YMSL-1000 For Plastic Sheets
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YMSL-1000
Availability: InStock

Detail Information

Power Supply:	AC 380V/50 HZ	Air Resource:	6 Kg/c㎡(dry)
Power:	8.5KW	Temperature:	0-400℃(adjustable)
Temp. Precision:	±0.5℃	Mag. Stripe Laying Precision:	±0.15mm
Weight:	Approximately 800Kg	Productivity:	10-12m/min (film Roll) Or 1000-1300 Sheets/h (sheet)
Mag. Stripe Model:	ISO/IEC7811 HiCo/LoCo	Mag. Stripe Width:	12.7mm / 6.35mm, Wheel Diameter: 380mm
Mag. Stripes Qty.:	5~8 Tapes Optional	Layout:	3X8, 4X8, 5X5 (optional)
Operator Number:	1	Dimension:	L2850×W1200×H1800mm
Applicable Materials:	Plastic Sheet: 0.25~0.8mm Thick Max. Width: 580mm, Roll Film: 0.04-0.2mm Thick Inner Diameter:3 Inch; External Diameter: ＜20 Inches(500mm); Max. Width: 580mm
Highlight:	Automatic Magnetic Stripe Laying Machine , 8.5KW Magnetic Stripe Laying Machine

Product Description

Automatically Control Magnetic Stripe Laying Machine Reliable Operation YMSL-1000

Product Specifications

Attribute	Value
Power supply	AC 380V/50 HZ
Air resource	6 kg/c㎡(dry)
Power	8.5KW
Temperature	0-400℃(adjustable)
Temp. precision	±0.5℃
Mag. stripe laying precision	±0.15mm
Weight	Approximately 800Kg
Productivity	10-12m/min (film roll) or 1000-1300 sheets/h (sheet)
Mag. stripe model	ISO/IEC7811 HiCo/LoCo
Mag. stripe width	12.7mm / 6.35mm, wheel diameter: 380mm
Mag. stripes Qty.	5~8 tapes optional
Layout	3X8, 4X8, 5X5 (optional)
Operator number	1
Dimension	L2850×W1200×H1800mm
Applicable materials	Plastic sheet: 0.25~0.8mm thick Max. width: 580mm, roll film: 0.04-0.2mm thick Inner diameter:3 inch; external diameter: ＜20 inches(500mm); Max. width: 580mm

Product Overview

The Automatic Magnetic Stripe Laying Machine YMSL-1000 is designed to precisely apply magnetic stripes onto plastic sheets or film rolls (including PVC and PET) through controlled heating and pressurization. The system supports three material handling modes: roll-to-sheet, roll-to-roll, or sheet-to-sheet, with fully automated operation for consistent, reliable performance. It accommodates both standard and transferable magnetic stripe types.

Key Features

PLC-controlled system with intuitive human-machine interface
Servo motor-driven sheet feeding, speed control, and film movement
Rolling wheel clamping system ensures precise magnetic stripe alignment with adjustable air cylinder pressure
Automatic tension control maintains smooth, even material feed
Air cylinder-driven film cutting unit for reliable operation
Integrated waste system for automatic magnetic stripe back foil collection
Air shaft loading system simplifies film roll handling
Precision temperature control (±0.5℃) using heating tubes with imported probes
Individual temperature and pressure adjustment for each magnetic stripe head

Technical Parameters

Power supply	AC 380V/50 HZ	Mag. stripe model	ISO/IEC7811 HiCo/LoCo
Air resource	6 kg/c㎡(dry)	Mag. stripe width	12.7mm / 6.35mm, wheel diameter: 380mm
Power	8.5KW	Mag. stripes qty.	5~8 tapes optional
Temperature	0-400℃(adjustable)	Layout	3X8, 4X8, 5X5 (optional)
Temp. precision	±0.5℃	Operator number	1
Mag. stripe laying precision	±0.15mm	Dimension	L2850×W1200×H1800mm
Weight	Approximately 800KG	Applicable materials	Plastic sheet: 0.25~0.8mm thick Max. width: 580mm, roll film: 0.04-0.2mm thick Inner diameter:3 inch; external diameter: ＜20 inches(500mm); Max. width: 580mm
Productivity	10-12m/min (film roll) or 1000-1300 sheets/h (sheet)

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YMSL-1000

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	40-45days
Payment Terms:	T/T, Western Union, D/P, D/A, Western Union
Supply Ability:	1 set per 45 days
