Name: Compact Automatic Magnetic Stripe Laying Machine For PVC Sheets 3x8 4x8 Layout
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YASB-1
Availability: InStock

Detail Information

PVC Layout:	3×8, 4×8 And 5×5	Magnetic Strip Number:	Maximum 8 Magnetic Strips
Feature:	Bonding Time And Temperature Are Adjustable	Air Pressure:	6kg/cm3 Square
Control Method:	PLC Program + Servo System	Production Capacity:	400-650 Sheets/hour
Highlight:	3x8 Magnetic Stripe Laying Machine , Compact Magnetic Stripe Laying Machine

Product Description

Automatic Magnetic Stripe Laying Machine Servo Motor For PVC Sheet 3×8 4×8 Layout

Product Specifications

Attribute	Value
PVC layout	3×8, 4×8 and 5×5
Magnetic strip number	Maximum 8 magnetic strips
Feature	Bonding time and temperature are adjustable
Air pressure	6kg/cm3 square
Control method	PLC program + servo system
Production capacity	400-650 sheets/hour

Product Overview

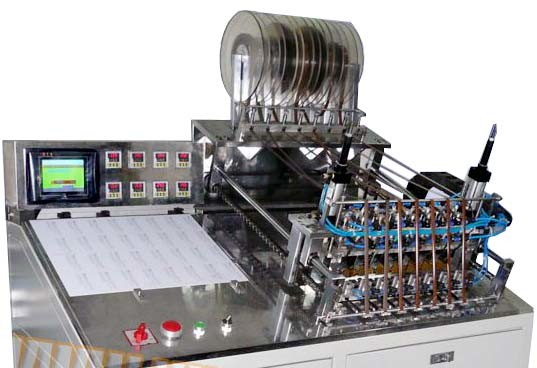

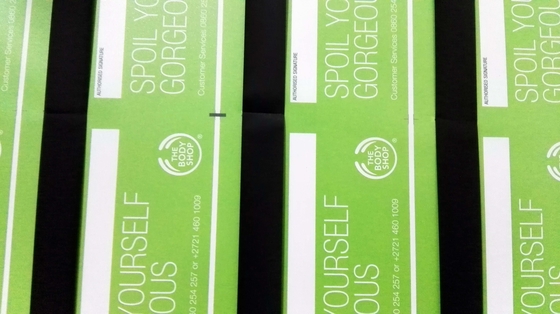

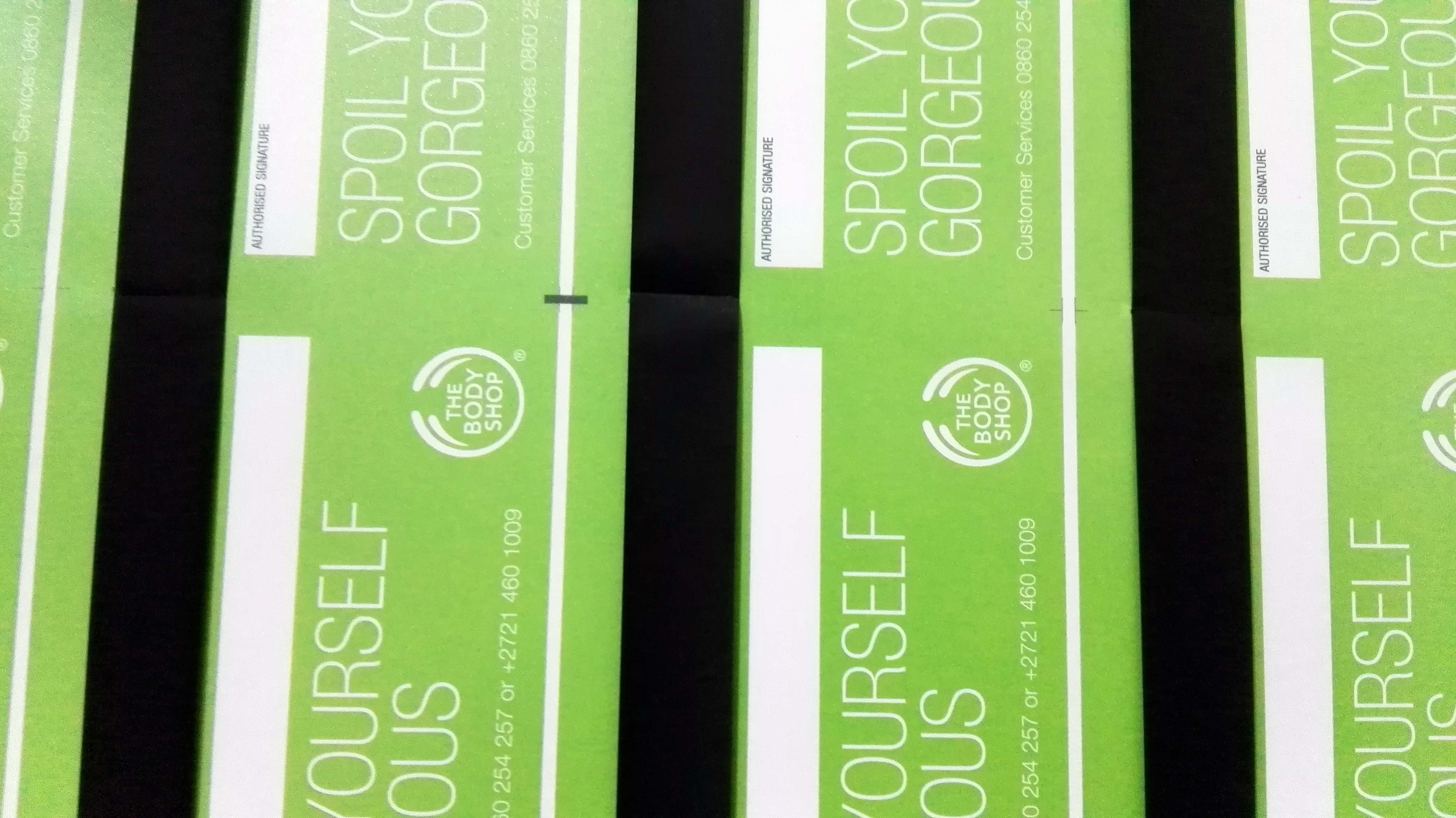

The Automatic Magnetic Stripe Bonding Machine YASB-1 is designed for precise and efficient laying and bonding of magnetic stripes onto coated overlay or printed PVC sheets. Controlled by a PLC system with smart touch screen interface, this machine features automatic material feeding via quality servo motor, enabling simultaneous magnetic stripe laying and bonding.

Key Features

Compact design with easy operation

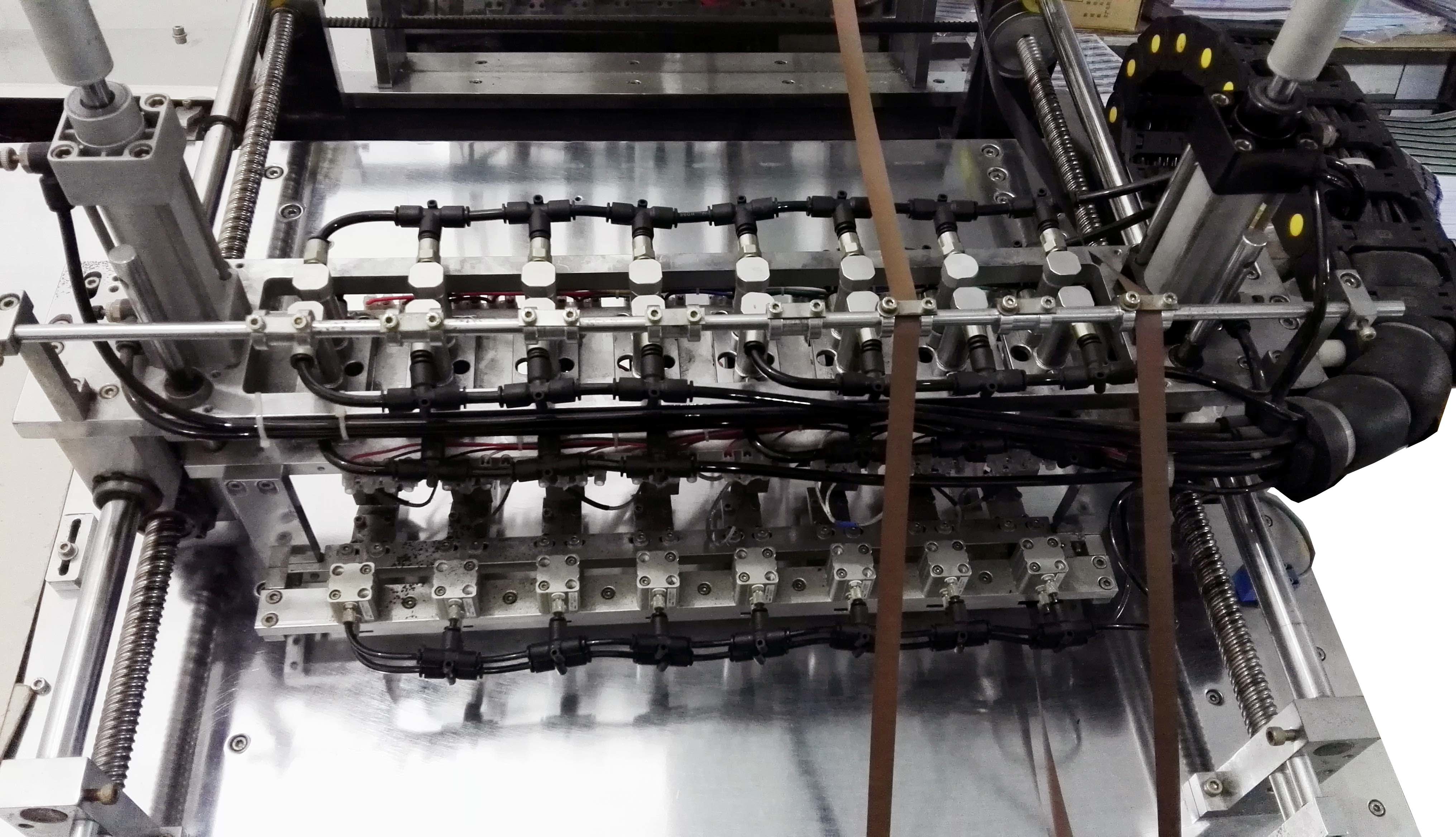

Capable of bonding up to 8 magnetic strips simultaneously
Simultaneous welding of all bonding spots ensures neat finish
PLC-controlled operation with automatic error alarm
Adjustable bonding point position, time, and temperature
Efficient magnetic strip transmission and cutting minimizes waste

Technical Specifications

Power source	AC 380V/50 HZ
Stripe type	ISO/IEC7811 high density and lower density
Air source	6 kg (no water)
Stripe width	12.7mm 6.35mm plate dia.380mm
Total power	8.5KW
Temperature control range	0-400ºC (adjustable)
Temperature control precision	±2ºC
Laying precision	±0.15mm
Overall dimension	L1560xW800xH1500mm
Weight	Approx. 200Kg

Technical Parameters

Parameter	Value
Machine Model	YASB-1
Power supply	AC 220V 50HZ 2.5KW
Air pressure	6kg/cm3 square
Size of work table	L520xW500mm
Production capacity	400-650 plates/hour
Bonding point position precision	±0.1mm
Control method	PLC program + servo system
Operator	1 person
Weight	200kg Approx

Applications

The Automatic Magnetic Stripe Bonding Machine YASB-1 is also known as: Card magnetic stripe bonding machine, magnetic stripe laying machine, magnetic stripe applicator, magnetic stripe pasting machine, card machine, and smart card machine.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YASB-1

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export standard plywood case
Delivery Time:	25-35days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 set per 25-30 days
