Name: Relay Controlled Magnetic Tape Laying Machine For Plastic Sheets
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YMSB-1
Availability: InStock

Detail Information

Applicable Materials:	Plastic Sheet: 0.25~0.8mm Thick	Dimension:	L800W700H1500mm
Weight:	About 150kgs	Productivity::	200-400 Sheets/h
Mag. Stripe Model:	ISO/IEC7811 HiCo/LoCo	Mag. Stripe Width::	12.7mm / 6.35mm, Wheel Diameter: 380mm
Highlight:	Relay Controlled Magnetic Tape Laying Machine , Sheets Magnetic Tape Laying Machine

Product Description

Magnetic Stripe Machine For Positioning And Bonding Magnetic Strip To Plastic Sheet

Product Specifications

Attribute	Value
Applicable materials	Plastic sheet: 0.25~0.8mm thick
Dimension	L800W700H1500mm
Weight	about 150kgs
Productivity	200-400 sheets/h
Mag. stripe model	ISO/IEC7811 HiCo/LoCo
Mag. stripe width	12.7mm / 6.35mm, wheel diameter: 380mm

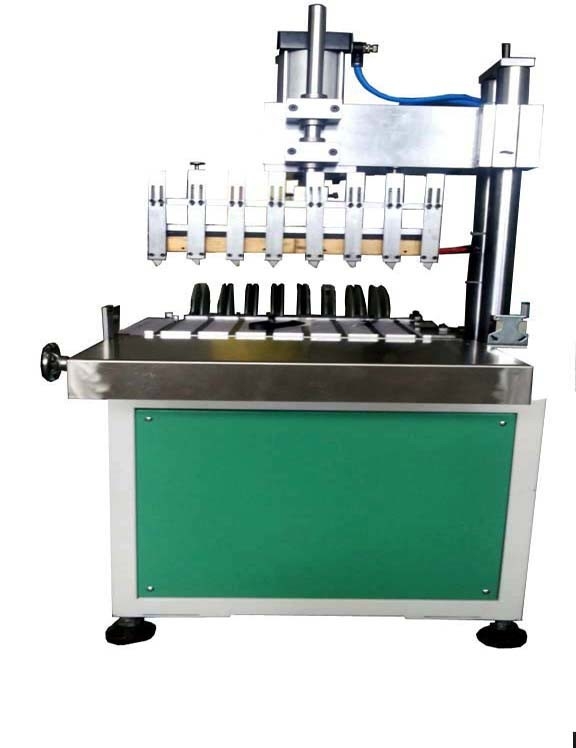

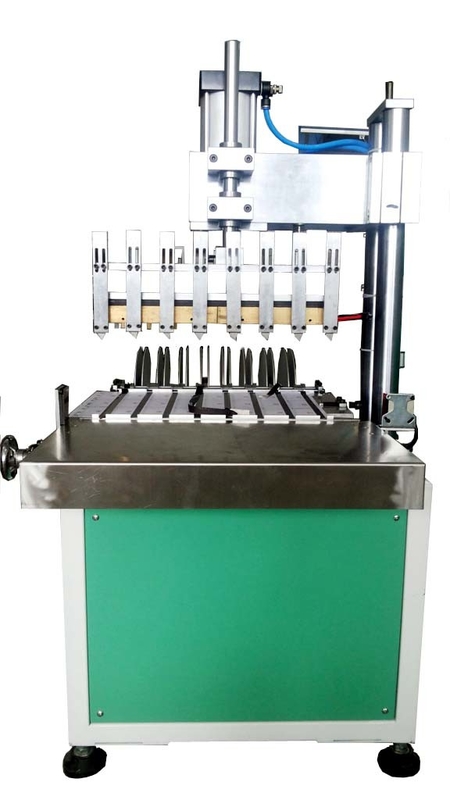

Manual Magnetic Stripe Bonding Machine YMSB-1

card magnetic stripe bonding machine, magnetic stripe laying machine, magnetic stripe applicator, magnetic stripe pasting machine, card machine, smart card machine

Product Overview

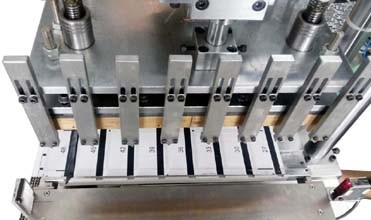

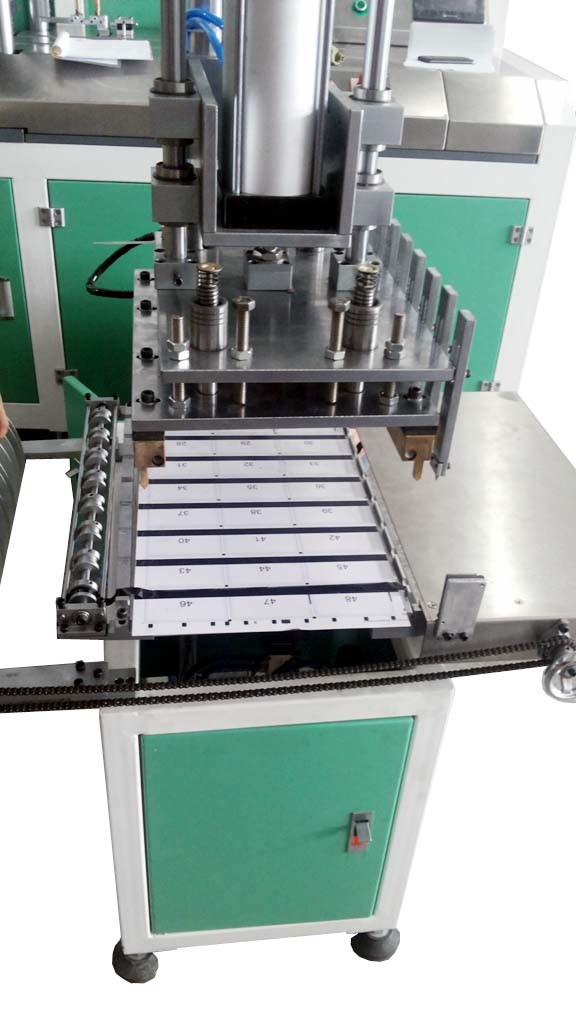

The Magnetic Stripe Bonding Machine YMSB-1 is designed for precise positioning and bonding of magnetic strips to plastic sheets before lamination.

Key Features

Relay-controlled operation for reliable performance
Precision temperature control using imported temperature controller
Time-controlled operation via time relay
Double air cylinder power with adjustable bonding head pressure

Technical Parameters

Power supply: AC380V/50HZ
Air resource: 6 kg/c㎡(dry)
Power: 3 KW
Temperature: 0-400℃(adjustable)
Temp. precision: ±2℃
Mag. stripe bonding precision: ±0.2mm
Weight: 150Kg
Productivity: 200-400 sheets/h
Mag. stripe model: ISO/IEC7811 HiCo/LoCo
Mag. stripe width: 12.7mm / 6.35mm, wheel diameter: 380mm
Mag. Stripes Qty.: 5~8 tapes optional
Layout: 3*8, 4*8, 5*5 (optional)
Operator number: 1
Dimension: L800*W700*H1500mm
Applicable materials: Plastic sheet: 0.25~0.8mm thick

Applications

Ideal for precise magnetic stripe application on plastic sheets in card manufacturing processes.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YMSB-1

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	30-35days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 set per 35 days
