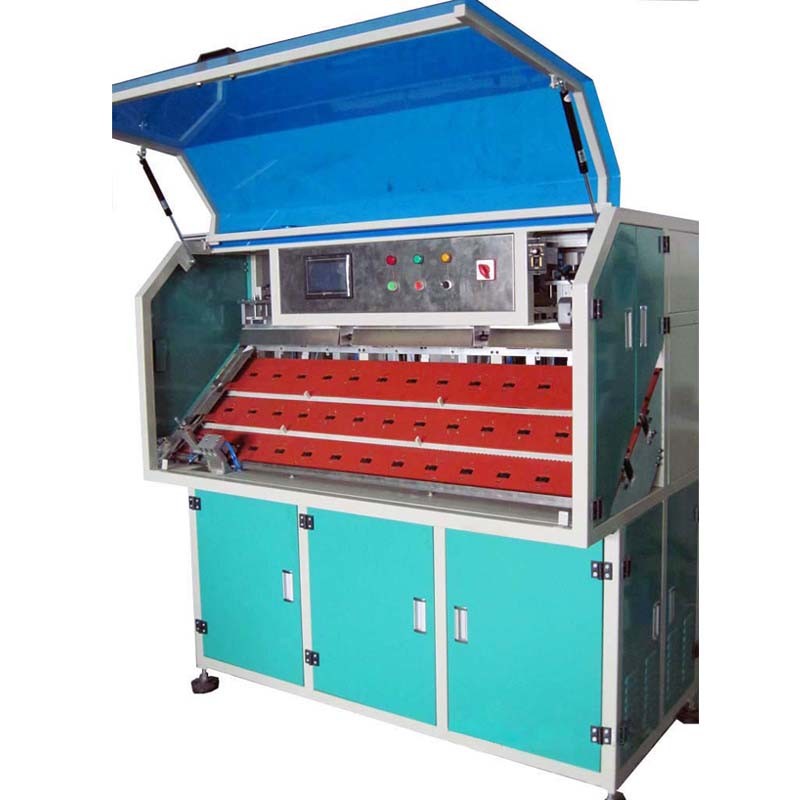

2.5KW Full Auto Card Sheet Collator And Bonder YSCB-1 2000 Sheets/H

2.5KW Full Auto Card Sheet Collator And Bonder YSCB-1 2000 Sheets/H
2.5KW Full Auto Card Sheet Collator And Bonder YSCB-1 2000 Sheets/H
Basic Information
Place of Origin: China
Brand Name: YL
Model Number: YSCB-1
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: 1 plywood case
Delivery Time: 30-35days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 set per 35 days
Get Best Price
Chat Now
Detail Information
Power Supply: AC 380V/50 HZ Air Resource: 6 Kg/c㎡(dry)
Power: 2.5KW Air Consumption: Around 80L/min
Weight: Approximately 300Kg Control Mode: PLC+Servo System
Dimension: L2150×W950×H1650mm Operator Number: 1
Productivity: 2000 Sheets/h
Highlight:

2.5KW Card Sheet Collator And Bonder

,

Full Auto Card Collator And Bonder

Product Description

Sheet Collating and Bonding Machine Full Auto Card Sheet Collator and Bonder YSCB-1
Product Specifications
Attribute Value
Power supply AC 380V/50 HZ
Air resource 6 kg/c㎡(dry)
Power 2.5KW
Air consumption Around 80L/min
Weight Approximately 300Kg
Control mode PLC+Servo system
Dimension L2150×W950×H1650mm
Operator number 1
Productivity 2000 sheets/h
Product Description
Full Auto Card Sheet Collator and Bonder YSCB-1 - An advanced solution for automatic sheet collating and bonding in plastic card production.
Key Features
  1. Utilizes mature ultrasonic bonding technology for perfect bonding quality
  2. PLC program control with large LCD display and servo system for automatic sheet transmission
  3. Easy parameter setting with fast operation speed and high precision
  4. Thickness detection function prevents same sheets from being combined
  5. Works with 2 printed sheets + 1 middle core sheet or just 2 printed sheets (minimum thickness 0.12mm)
  6. Stable and reliable sheet picking without surface scratches
  7. Scratch-free sheet conveying throughout the entire process
Technical Parameters
Power supply AC 380V/50 HZ
Total power 2.5KW
Air Source 6 kg/c㎡
Air consumption About 80L/min
Weight About 300Kg
Productivity 2000sheets/hour
Control mode PLC+Servo system
Dimension L2150×W950×H1650mm
Operator number 1
