Name: S50 S70 RFID Chip Magnetic Card Encoder Compact Data Personalization Machine
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YDE-1
Availability: InStock

Detail Information

RFID Chip Reading Speed:	6000-7000 Cards/hour	Magnetic Encoding Operation Speed:	8000 Cards/hour
Chip Data Writing Operation Speed:	2000- 4000 Cards/hour	Magnetic Record Density:	210 BPI For Track 1; 75 Or 210 BPI For Track 2; And 210 BPI For Track3
Applicable Magnetic Tripe:	HiCo/LoCo, 300 Oe-4000 Oe, 3 Tracks, 12.7mm Wide	Magnetic Writing Head Service Lifetime:	10.200,000 To 300,000 Times
Magnetic Reading Head Service Lifetime:	11.400,000 To 500,000 Times.	Machine Size:	L1400×W400×1300mm
Highlight:	RFID Magnetic Card Encoder , S70 Magnetic Card Encoder , Compact Data Personalization Machine

Product Description

S50 S70 Chip Reading Writing RFID Magnetic Card Encoder Data Personalization Machine YDE-1

Product Overview

The Economic Card Data Personalization Machine YDE-1 is a high-performance solution for RFID and magnetic card processing, offering:

RFID card electrical performance testing
RFID chip data reading and writing
Magnetic stripe encoding with source data files
Magnetic stripe encoding with RFID chip data

Key Specifications

Attribute	Value
RFID Chip Reading Speed	6000-7000 cards/hour
Magnetic Encoding Speed	8000 cards/hour
Chip Data Writing Speed	2000-4000 cards/hour
Magnetic Record Density	210 BPI (track 1 & 3), 75 or 210 BPI (track 2)
Applicable Magnetic Stripe	HiCo/LoCo, 300 oe-4000 oe, 3 tracks, 12.7mm wide
Machine Dimensions	1400×400×1300mm (L×W×H)
Power Requirements	AC220V, 50/60Hz, 1kW
Net Weight	120kg

Product Features

Compact industrial design (1.4×0.4×1.3m) for flexible production
Integrated RFID encoding unit (1-head model) and magnetic stripe encoder
Supports ISO card personalization with multiple optional functions
High durability components: Magnetic writing head (200,000-300,000 cycles), reading head (400,000-500,000 cycles)
Compatible with standard CR80 cards (0.3-1mm thickness)
Operates in ambient temperatures of 0-40°C

RFID Chip Compatibility

Reads UID from most RFID card chips (HF/LF) and writes data to:

Mifare S50, S70
Ultralight, Ultralight-C
Mifare Plus
Ntag203, Ntag213, Ntag216
Icode-2, FM11RF005M
EM4100(ID), ATA5577, EM4305

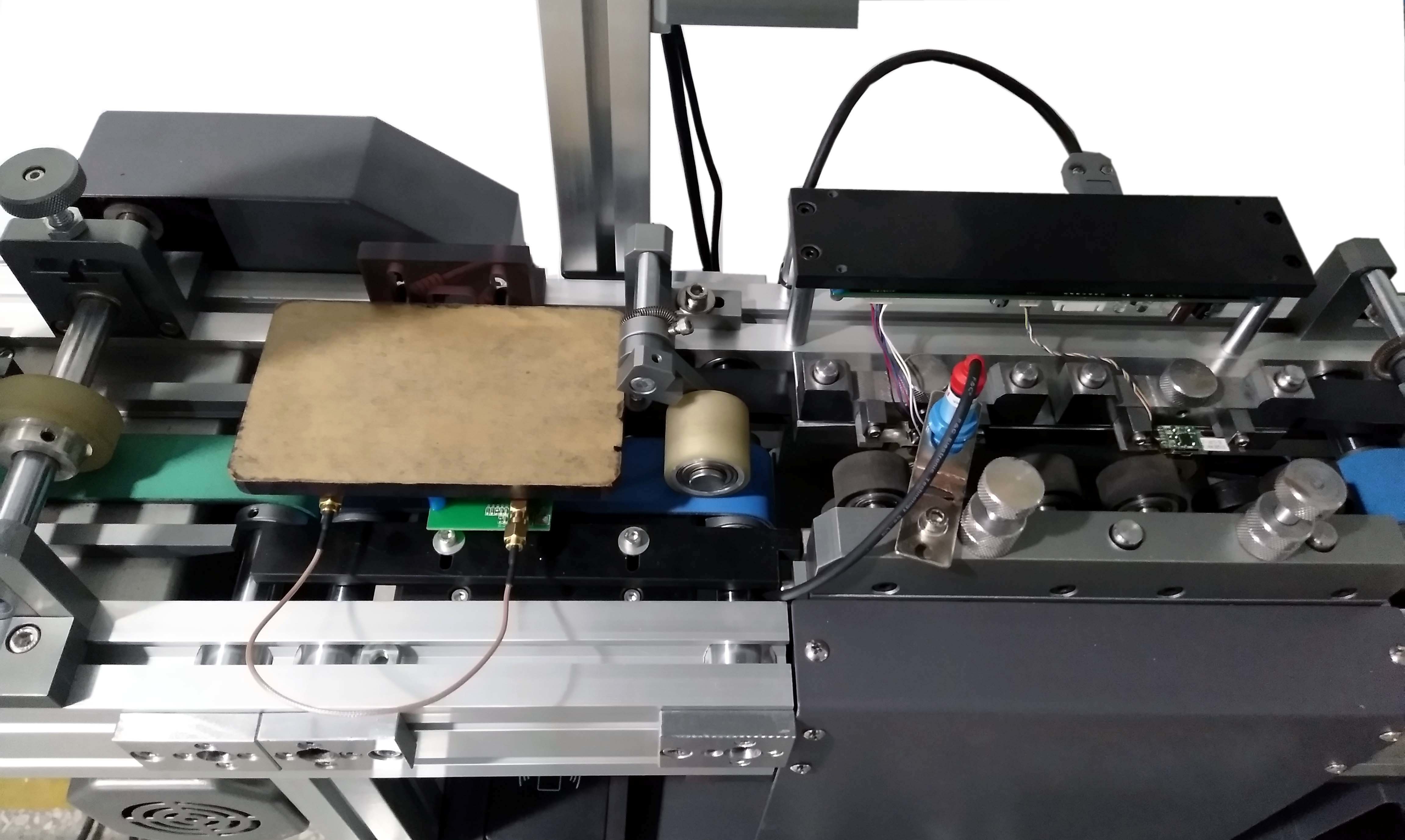

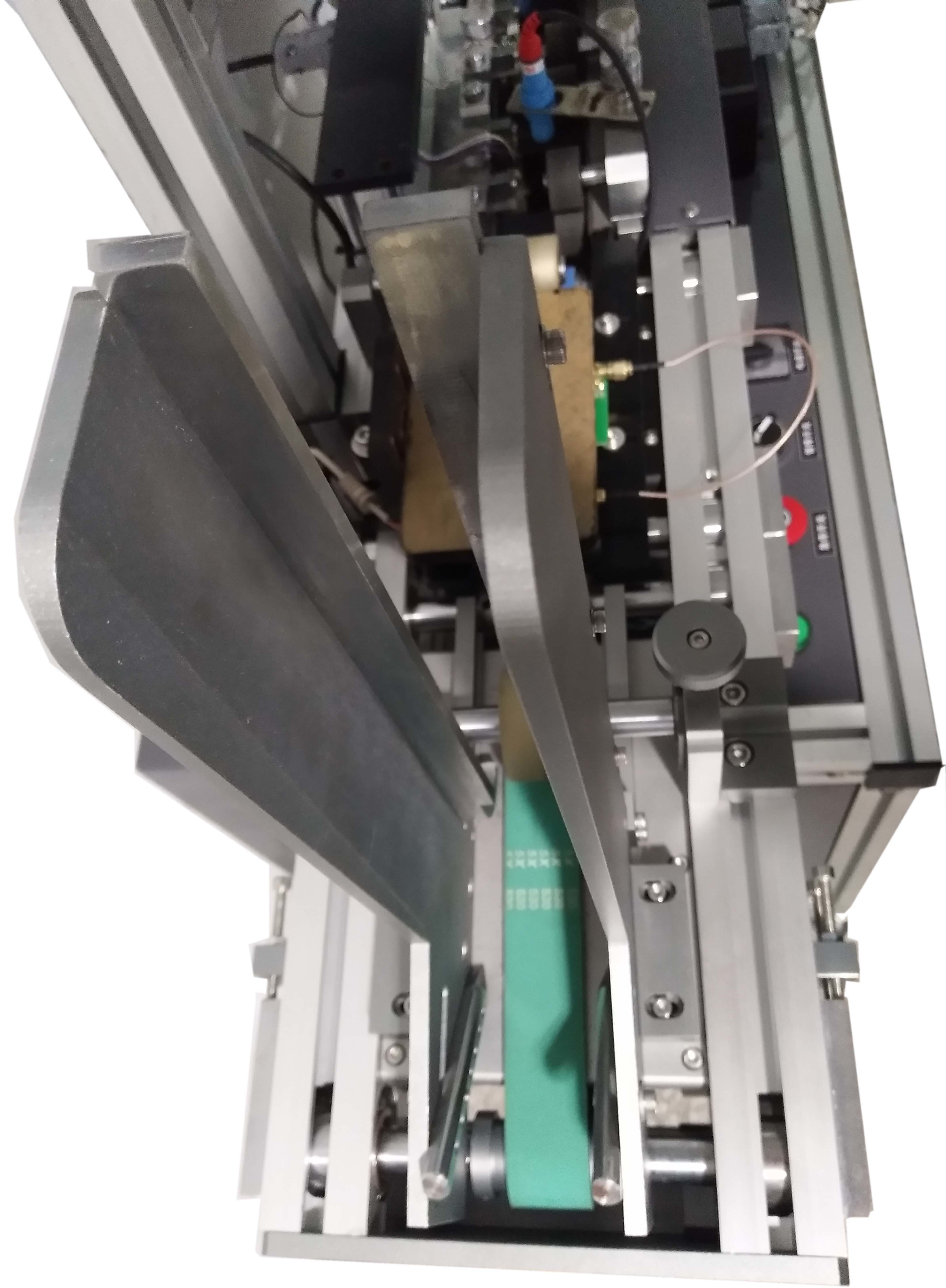

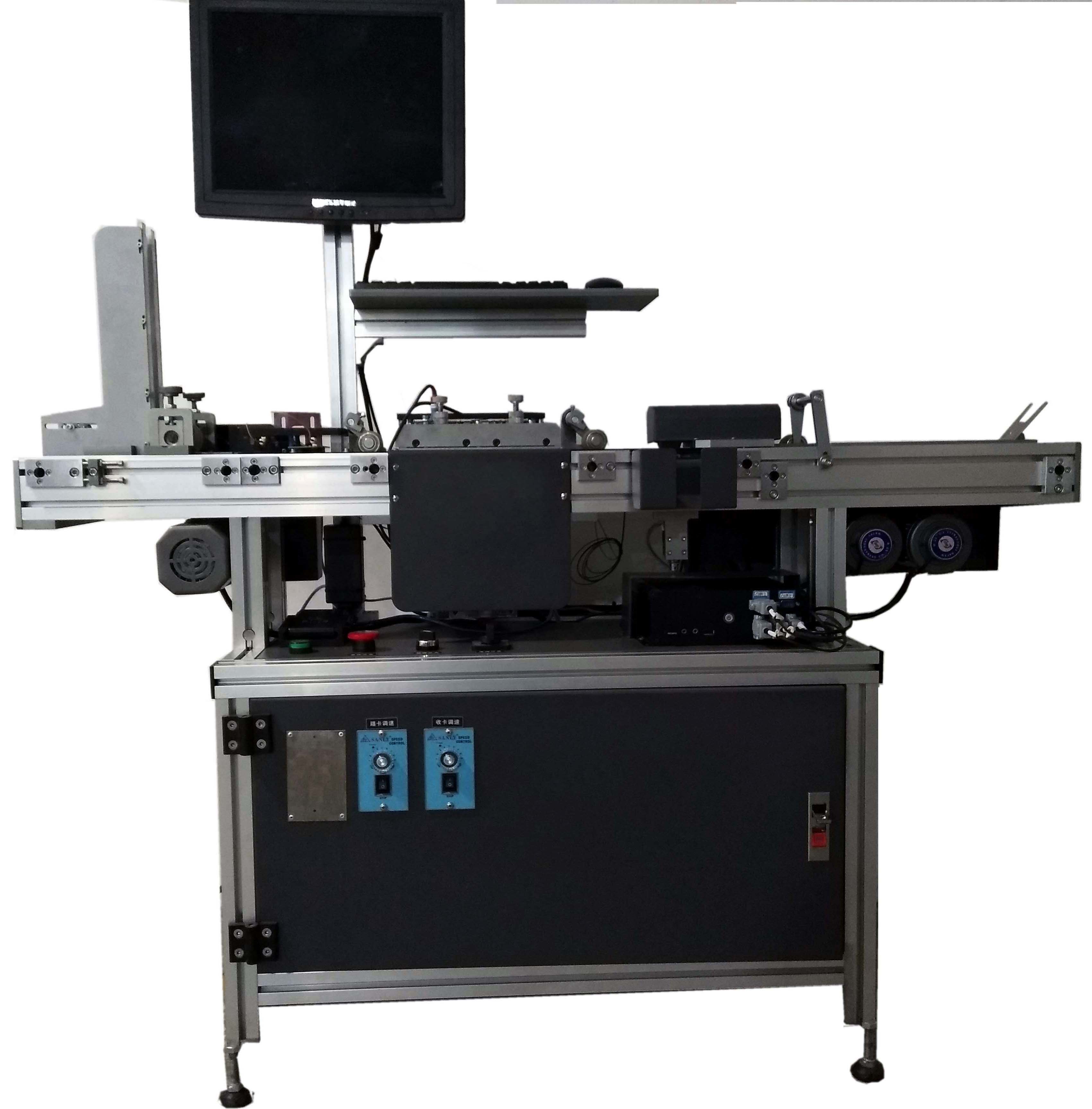

Product Images

Packaging Information

1 plywood case
Gross weight: 165kg
Dimensions: 1550×550×1380mm (L×W×H)

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YDE-1

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export standard plywood case
Delivery Time:	around 25-35 days
Payment Terms:	T/T, Western Union, D/P, D/A
Supply Ability:	1 set per 25 days
