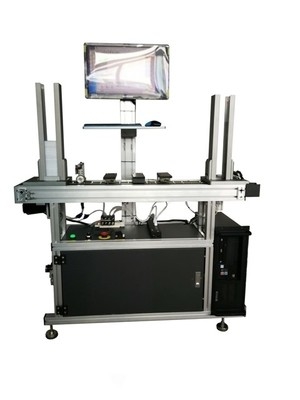

PLC Controlled Magnetic Card Encoder RFID Smart Card Data Personalization Machine

The YRFC-DP-3000 is a high-performance RFID card personalization machine designed for data reading/writing, encryption, and verification operations on various RFID chip cards including HF, LF, and UHF cards (UHF reader optional).

• Card suction type card feeder
• Overlapped card detection
• Low-frequency ID card reading and writing unit
• HF RFID data reading and writing unit
• Ultra-high frequency reading and writing unit (optional)
• Bad card rejection unit
• Good card collection unit

• Card vacuum suction structure: Prevents card surface scratches during processing
• Overlapped card detection: Automatically suspends operation when multiple cards are detected
• Multi-frequency support: Handles LF, HF, and UHF (optional) card operations
• Data verification: Compares card data with original database and rejects erroneous cards

Note: Laser engraving unit can be added per customer requirements. All functional modules are customizable.

• Dimensions: L1300mm × W550mm × H1500mm
• Weight: 120 Kg
• Power supply: 220V 50/60 Hz
• Compressed air: ≤ 6.5KG/CM²
• Control system: PLC + industrial computer
• Material compatibility: ISO standard cards
• Processing speed: >3600 cards/hour

The YRFC-DP-3000 is ideal for high-volume RFID card personalization in various industries including access control, identification, and secure data applications.
