Name: High Speed Magnetic Card Encoder Machine 1KW Magnetic Card Data Writer Machine
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YME-1
Availability: InStock

Detail Information

Speed:	8000-10000 Cards/hour	Operating Program:	Reliable AIO Control Software System For Magnetic Stripe Data Encoding
Magnetic Record Density:	3. 210 BPI For Track 1; 75 Or 210 BPI For Track 2; And 210 BPI For Track3	Applicable Magnetic Tripe:	HiCo/LoCo, 300 Oe-4000 Oe, 3 Tracks, 12.7mm Wide
Applicable Card Type:	Standard Magnetic Stripe Card	Applicable Card Thickness:	0.5mm-0.8mm
Applicable Card Length:	85.47mm-85.72mm	Applicable Card Width:	54.03mm-53.92mm
Applicable Card Corner Radius:	3.18mm	Power Supply:	AC220V, 50/60Hz
Power:	1KW	Net Weight:	8.113kg
Machine Size:	L1400×W400×1300mm	Package Size &weight:	1 Plywood Case, GW 165KG, L1550×W550×1380mm
Magnetic Writing Head Service Lifetime:	200,000 To 300,000 Times	Magnetic Reading Head Service Lifetime:	400,000 To 500,000 Times
Highlight:	High Speed Magnetic Card Encoder , Magnetic Card Encoder 1KW , Magnetic Card Data Writer Machine

Product Description

8000-10000 cards/hour Magnetic Card Encoder Machine

Product Overview

The YME-1 Magnetic Card Data Writer is a high-speed encoder designed for reliable magnetic stripe card encoding. Capable of processing up to 10,000 cards per hour, this industrial-grade machine simultaneously encodes all three tracks with precision and consistency.

Key Features

High-speed operation: 8,000-10,000 cards/hour
Simultaneous 3-track encoding capability
Optimized magnetic writing mechanism for consistent results
Compatible with HiCo/LoCo magnetic stripes (300-4000 oe)
Reliable AIO control software system
Durable components with extended service life

Technical Specifications

Attribute	Specification
Speed	8000-10000 cards/hour
Magnetic Record Density	Track 1: 210 BPI Track 2: 75 or 210 BPI Track 3: 210 BPI
Applicable Magnetic Stripe	HiCo/LoCo, 300 oe-4000 oe, 3 tracks, 12.7mm wide
Card Specifications	Thickness: 0.5mm-0.8mm Length: 85.47mm-85.72mm Width: 54.03mm-53.92mm Corner radius: 3.18mm
Power Requirements	AC220V, 50/60Hz, 1KW
Dimensions & Weight	Machine: 1400×400×1300mm (113kg) Packaged: 1550×550×1380mm (165kg)
Component Lifespan	Writing head: 200,000-300,000 cycles Reading head: 400,000-500,000 cycles

Machine Description

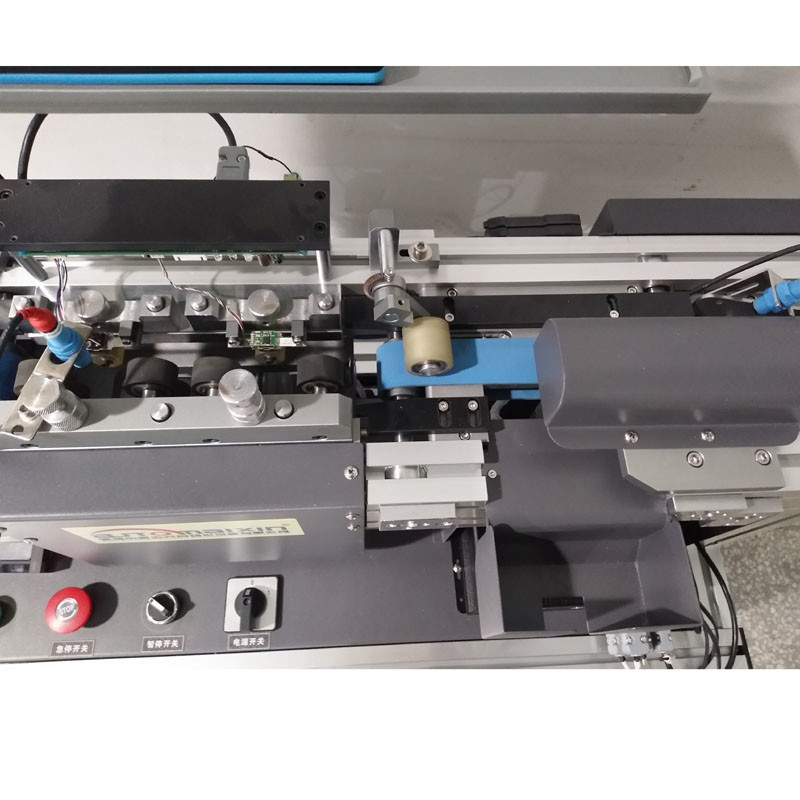

The YME-1 Magnetic Card Encoder features an optimized card handling system with feeding magazine, writing/reading unit, rejection box, and collection unit. The magnetic stripe position is precisely controlled with a 5mm distance from the card's upper edge.

Note

This encoder is designed for standard magnetic stripe cards and is not suitable for financial bank cards due to technical limitations.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YME-1

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	30-35days
Payment Terms:	D/A, D/P, T/T, Western Union
Supply Ability:	1 set per 35 days
