Name: 3 Tracks Magnetic Card Encoder CR80 Magnetic Card Data Writer Machine
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YME-1
Availability: InStock

Detail Information

Speed:	8000-10000 Cards/hour	Operating Program:	2.Reliable AIO Control Software System For Magnetic Stripe Data Encoding.
Magnetic Record Density:	3.210 BPI For Track 1; 75 Or 210 BPI For Track 2; And 210 BPI For Track3	Applicable Magnetic Tripe:	HiCo/LoCo, 300 Oe-4000 Oe, 3 Tracks, 12.7mm Wide
Applicable Card Type:	Standard Magnetic Stripe Card Card Thickness: 0 .5mm-0.8mm Card Length: 85.47mm-85.72mm Card Width: 54.03mm-53.92mm Card Corner Radius: 3.18mm Distance Between Magnetic Stripe Upper Edge And Card Upper Edge: 5mm	Power Supply:	6.AC220V, 50/60Hz
Power:	1kW	Net Weight:	113kg
Machine Size:	L1400×W400×1300mm	Package Size &weight:	1 Plywood Case, GW 165KG, L1550×W550×1380mm
Magnetic Writing Head Service Lifetime:	200,000 To 300,000 Times	Magnetic Reading Head Service Lifetime:	400,000 To 500,000 Times
Highlight:	Magnetic Card Data Writer Machine , magnetic card encoder CR80 , 3 Tracks magnetic card encoder

Product Description

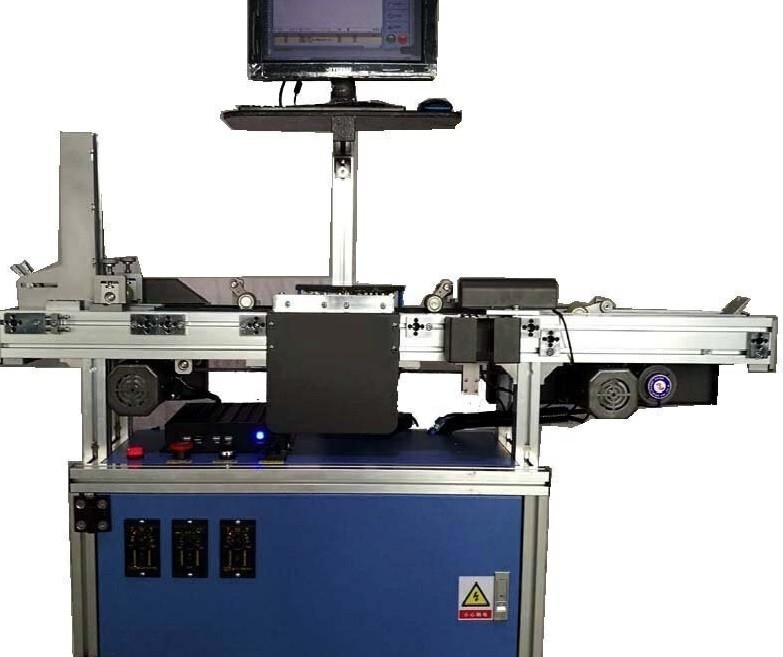

3 Tracks Magnetic Card Encoder CR80 Magnetic Card Data Writer Machine YME-1

Product Specifications

Speed	8000-10000 cards/hour
Operating Program	Reliable AIO control software system for magnetic stripe data encoding
Magnetic Record Density	210 BPI for track 1; 75 or 210 BPI for track 2; 210 BPI for track 3
Applicable Magnetic Stripe	HiCo/LoCo, 300 oe-4000 oe, 3 tracks, 12.7mm wide
Applicable Card Type	Standard magnetic stripe card Card thickness: 0.5mm-0.8mm Card length: 85.47mm-85.72mm Card width: 54.03mm-53.92mm Card corner radius: 3.18mm Distance between magnetic stripe upper edge and card upper edge: 5mm
Power Supply	AC220V, 50/60Hz
Power	1kW
Net Weight	113kg
Machine Size	L1400×W400×1300mm
Package Size & Weight	1 plywood case, GW 165KG, L1550×W550×1380mm
Magnetic Writing Head Service Lifetime	200,000 to 300,000 times
Magnetic Reading Head Service Lifetime	400,000 to 500,000 times

Product Overview

The Speedy Magnetic Card Encoder YME-1 is designed for high-speed, reliable encoding of magnetic stripe cards. Capable of encoding all 3 tracks simultaneously, this machine achieves speeds up to 10,000 cards per hour. Its optimized magnetic writing unit ensures consistent encoding speed and maximizes success rates.

Note: This encoder is suitable for most magnetic card types but is not designed for financial bank magnetic cards due to technical limitations.

Technical Parameters

Feature	Specification	Feature	Specification
Speed	8000-10000 cards/hour	Power	1kW
Operating Program	Reliable AIO control software	Net Weight	113kg
Magnetic Record Density	Track 1: 210 BPI Track 2: 75/210 BPI Track 3: 210 BPI	Machine Size	L1400×W400×1300mm
Applicable Magnetic Stripe	HiCo/LoCo, 300-4000 oe	Package Size & Weight	L1550×W550×1380mm, 165KG
Power Supply	AC220V, 50/60Hz	Writing Head Lifetime	200,000-300,000 cycles
Reading Head Lifetime	400,000-500,000 cycles

Service & Support

Pre-Sale Services

Professional consultation on raw material matching and machine selection
Factory condition assessment and production line feasibility analysis
Optimal machine recommendations based on your requirements
Comprehensive online support
Factory visits arranged with invitation letters

Sales Services

Regular production schedule updates
Strict quality supervision
Product acceptance procedures
Timely shipping arrangements

After-Sales Services

On-site installation guidance by engineers
Setup, troubleshooting, and operational training
Comprehensive operator training until satisfaction
Lifetime technical support
Regular customer follow-ups and feedback collection

Warranty

We provide a 1-year warranty period for our card machines. During this period:

24/7 access to our service department for any inquiries
On-site support available for unsolvable technical issues

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YME-1

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	30-35days
Payment Terms:	D/A, D/P, T/T, Western Union
Supply Ability:	1 set per 35 days
