Smart Card Data Checking Machine 2.5KW RFID Card Data Proofreading Machine

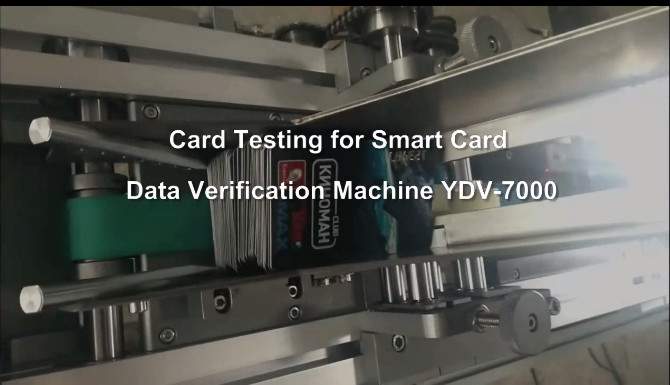

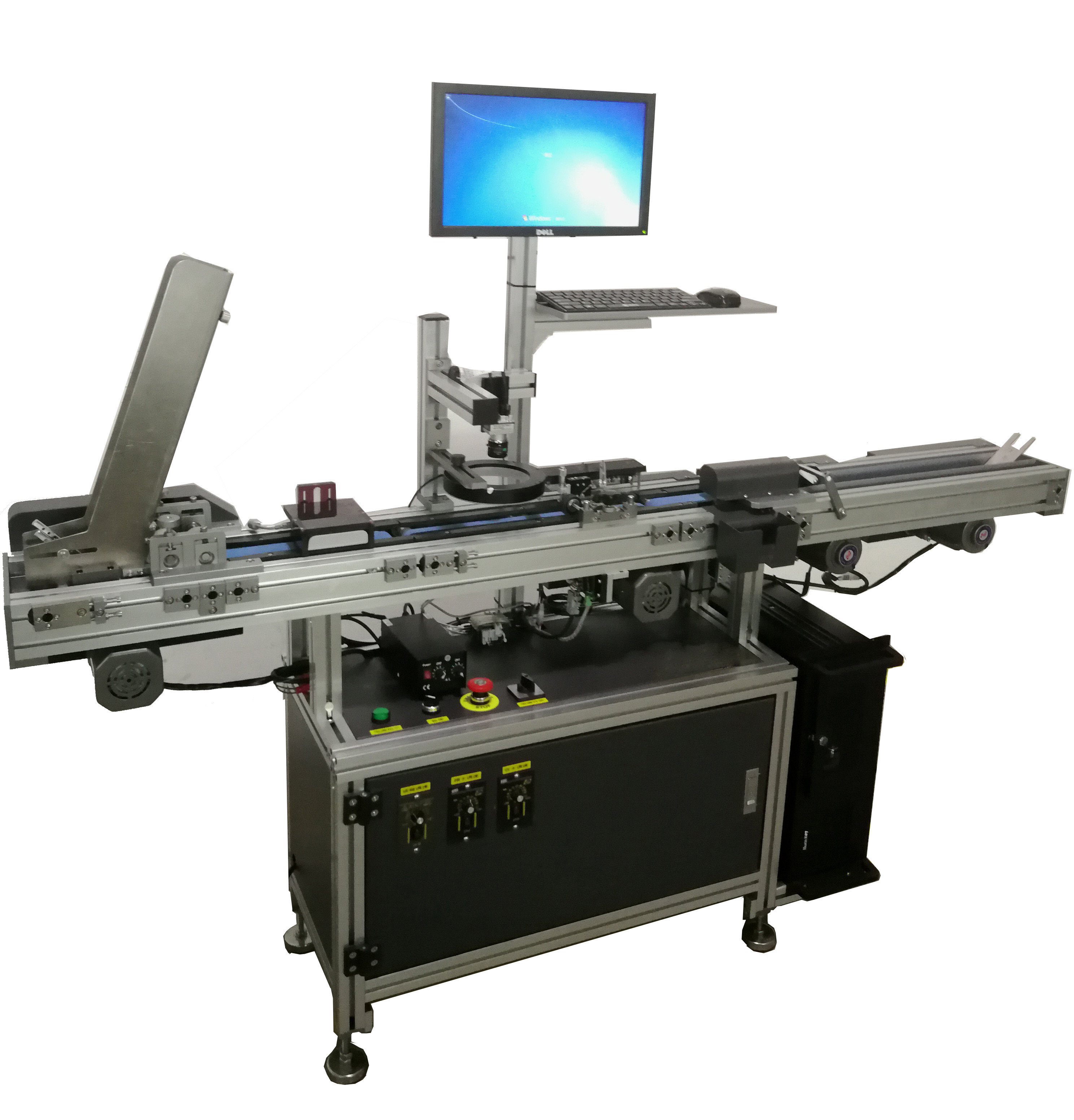

The Smart Card Data Verification Machine YDV-7000 is designed for comprehensive data comparison and verification of RFID card chip data, card surface data, and magnetic stripe data. Also known as Card Data Checking Machine or Smart Data Tester, this industrial-grade solution ensures quality control in smart card production.

Complete processing workflow includes:

• Card feeding magazine (CR80 standard card)
• RFID card chip data verification unit (LF+HF/optional UHF)

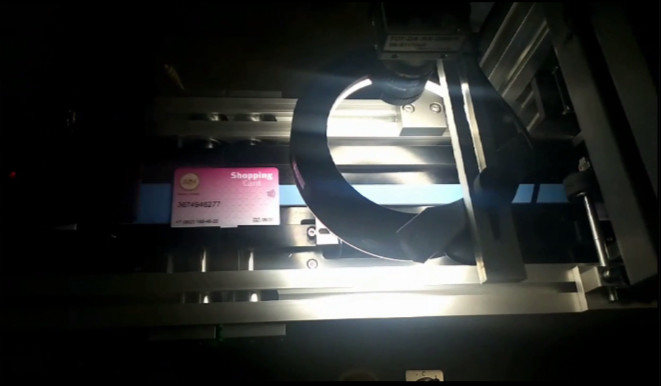

• OCR surface data verification unit
• Magnetic stripe data verification unit (upper+lower side reading)
• Bad Card Rejection Unit
• Good Card Collection magazine

• Frequency: 125KHZ & 13.56MHz, 915MHz (optional)
• Communication protocol: ISO 15693, 14443A/B, ISO18000B/C
• Dual-frequency capability for low-frequency and high-frequency chip cards
• Optional ultra-high-frequency verification unit
• Database comparison for error detection
• Production log saving and power failure data protection

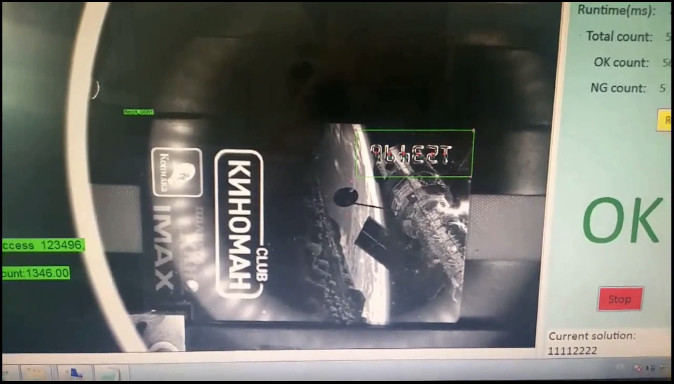

• Advanced optical character recognition technology
• Database comparison for surface data validation
• Duplicate data number and incompleteness analysis
• Supports recognition of 1D barcode, 2D QR code, Arabic numbers, and English characters

• Magnetic reactance degree: 300 OE - 2750 OE
• Reading density: 210 DPI, 75DPI/210 DPI compatible
• Supports all tracks (Track 1/2/3) with HiCo/LoCo capability
• Dual-side reading (upper and lower side of card)
• Database comparison for magnetic stripe data validation

The YDV-7000 is also referred to as Card Data Proofreading Machine, Smart Data Tester, or Smart Card Quality Control Machine, representing the industry standard for comprehensive smart card data verification.
