Name: Industrial Magnetic Card Stripe Encoder 1kW Magnetic Stripe Card Writer High Speed
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YME-1
Availability: InStock

Detail Information

Speed:	8000-10000 Cards/hour	Operating Program:	2.Reliable AIO Control Software System For Magnetic Stripe Data Encoding.
Magnetic Record Density:	3.210 BPI For Track 1; 75 Or 210 BPI For Track 2; And 210 BPI For Track3	Applicable Magnetic Tripe:	HiCo/LoCo, 300 Oe-4000 Oe, 3 Tracks, 12.7mm Wide
Applicable Card Type:	Standard Magnetic Stripe Card Card Thickness: 0 .5mm-0.8mm Card Length: 85.47mm-85.72mm Card Width: 54.03mm-53.92mm Card Corner Radius: 3.18mm Distance Between Magnetic Stripe Upper Edge And Card Upper Edge: 5mm	Power Supply:	AC220V, 50/60Hz
Power:	1kW	Net Weight:	113kg
Machine Size:	L1400×W400×1300mm	Package Size &weight:	1 Plywood Case, GW 165KG, L1550×W550×1380mm
Magnetic Writing Head Service Lifetime:	200,000 To 300,000 Times	Magnetic Reading Head Service Lifetime:	400,000 To 500,000 Times
Highlight:	Magnetic Card Stripe Encoder , Industrial Card Stripe Encoder , 1kW Magnetic Stripe Card Writer

Product Description

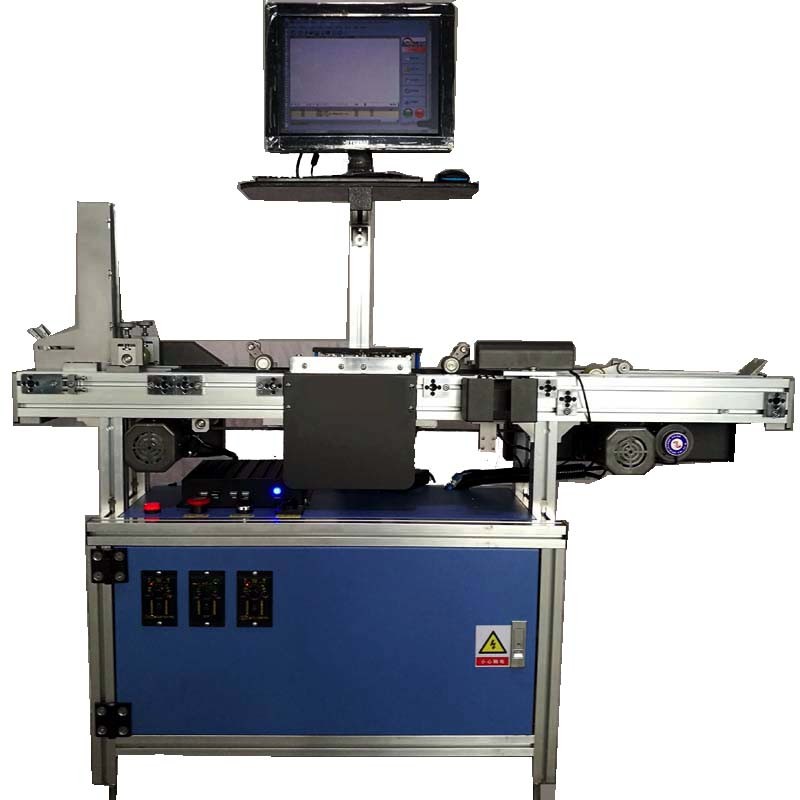

High Speedy Magnetic Stripe Encoding Machine Magnetic Card Data Writer YME-1

Product Overview

The YME-1 Magnetic Card Data Writer is a high-speed encoding machine designed for reliable magnetic stripe card processing. Capable of encoding up to 10,000 cards per hour, this industrial-grade machine handles all standard magnetic card types with precision and efficiency.

Key Features

High-speed processing: 8,000-10,000 cards/hour
Simultaneous 3-track encoding capability
Optimized magnetic writing unit for consistent performance
Comprehensive card handling system: feeding, writing, reading, and sorting
Reliable AIO control software system
Durable components with extended service life

Technical Specifications

Attribute	Specification
Speed	8,000-10,000 cards/hour
Magnetic Record Density	210 BPI (Track 1), 75/210 BPI (Track 2), 210 BPI (Track 3)
Applicable Magnetic Stripe	HiCo/LoCo, 300 oe-4000 oe, 3 tracks, 12.7mm wide
Card Compatibility	Standard magnetic stripe cards (0.5mm-0.8mm thickness, 85.47-85.72mm length, 53.92-54.03mm width)
Power Requirements	AC220V, 50/60Hz, 1kW
Dimensions & Weight	Machine: 1400×400×1300mm (113kg) Packaged: 1550×550×1380mm (165kg)
Component Lifespan	Writing Head: 200,000-300,000 cycles Reading Head: 400,000-500,000 cycles

Operation Notes

The YME-1 encoder is designed for general magnetic card encoding applications. Please note this machine is not suitable for financial bank magnetic cards due to technical limitations. The optimized card handling system ensures smooth operation with minimal jams or misfeeds.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YME-1

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	30-35days
Payment Terms:	D/A, D/P, T/T, Western Union
Supply Ability:	1 set per 35 days
