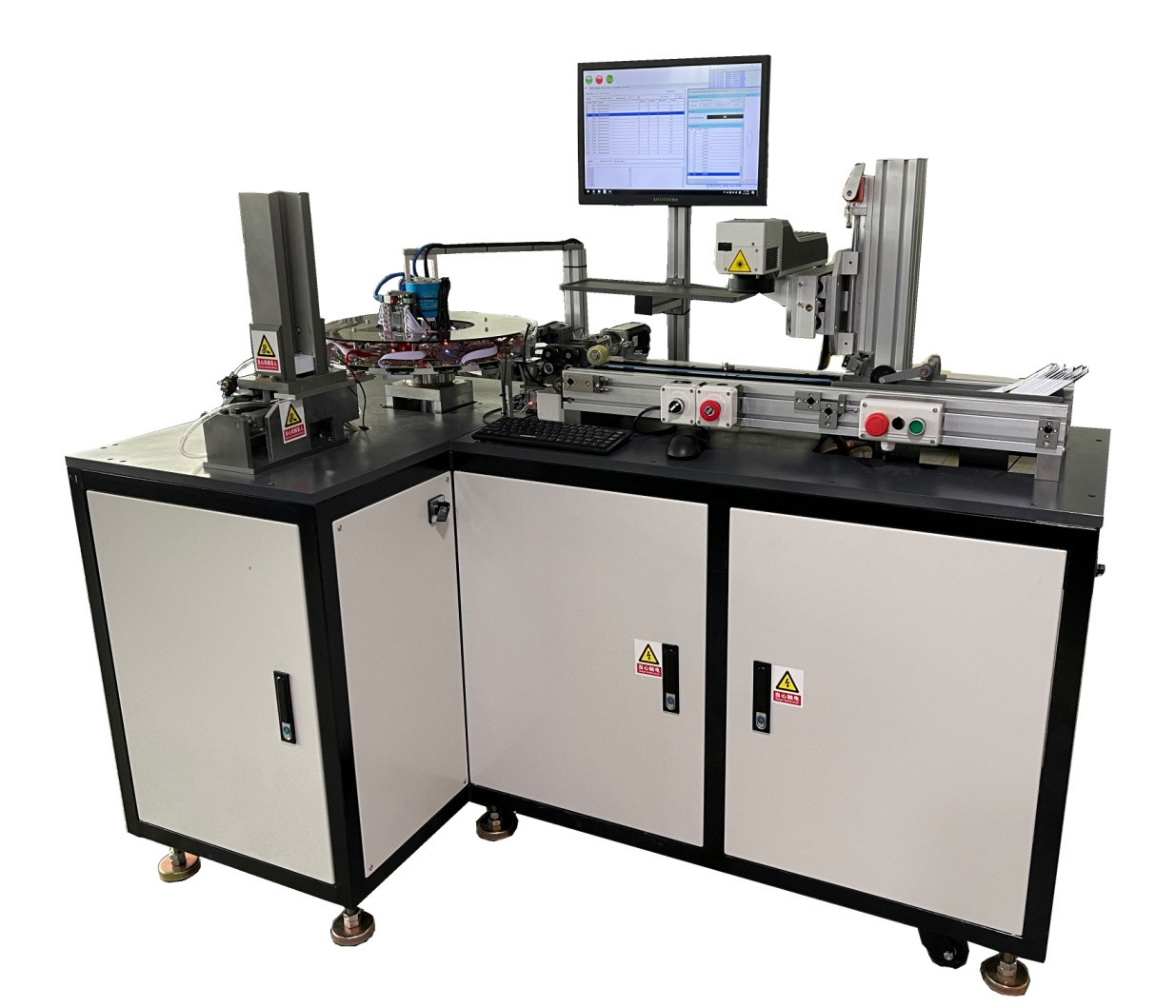

High Speed Smart Card Data Personalization Machine Industrial Smart Card Laser Engraver

The Smart Card Data Personalization and Laser Engraving Machine YDLE-1 is a reliable solution for mass card production, capable of reading and writing both contact and contactless cards (including read, write, encrypt, verify and write COS into chips) using 16 encoding stations while providing high-quality laser engraving.

• Card feeding magazine (CR80 standard card)
• Smart card encoding unit (contact/contactless cards with 16 encoding stations)
• Card turn-over + bad card rejection unit
• Laser engraving unit
• Good card collection magazine

• Card feeding magazine: Uses vacuum absorption technology to prevent card scratches
• Smart card encoding unit: Processes data for both contact and contactless cards with 16 encoding stations
• Card turn-over + bad card rejection unit: Enables card flipping and rejects defective cards
• Laser engraving unit: Offers three laser types (carbon dioxide, optical fiber, ultraviolet) for engraving text, logos, QR codes, and images
• Good card collection unit: Collects successfully processed cards

• Device size: L1800*W1000*H1700mm
• Power supply: AC220, 50/60 Hz
• Equipment air source: ≤6.5Kg/CM2, 30L/M
• Control mode: industrial control machine
• Weight: around 300KG
• Speed: >3600 cards/hour

This versatile equipment offers optional modules including OCR inspection and magnetic stripe encoding units, providing flexible configuration to meet specific customer requirements.
