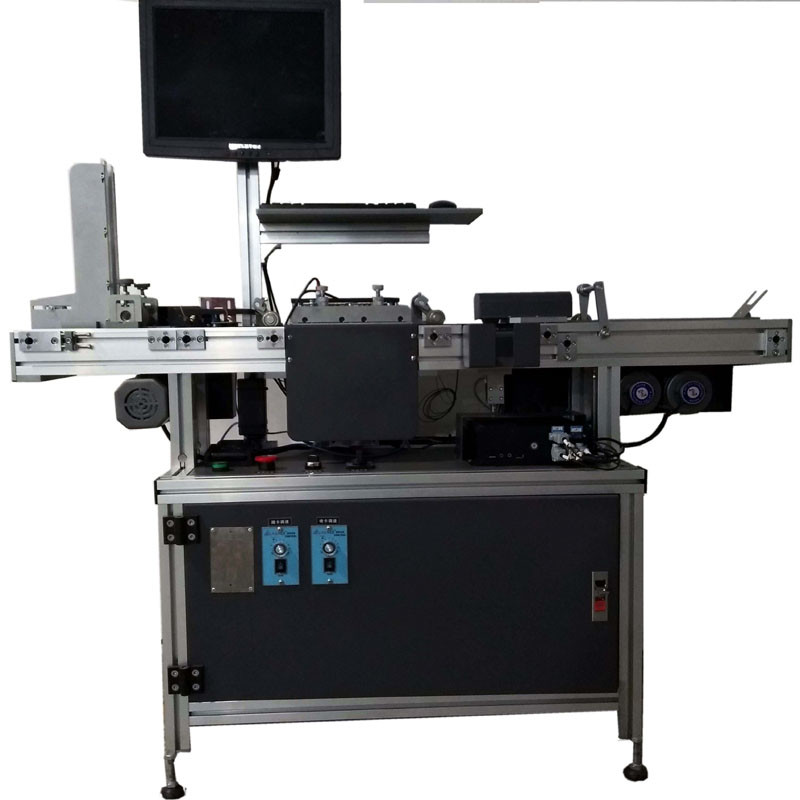

Name: Full Automatic RFID Magnetic Card Encoder Machine 6.1kW 8000 Cards/Hour YDE-1
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YDE-1
Availability: InStock

Detail Information

Speed:	8000 Cards/hour For Magnetic Encoding Operation 6000-7000 Cards/hour For RFID Chip Reading Operation. 2000- 4000 Cards/hour For Chip Data Writing Operation.	Magnetic Record Density:	2.210 BPI For Track 1; 75 Or 210 BPI For Track 2; And 210 BPI For Track3
Applicable Magnetic Tripe:	HiCo/LoCo, 300 Oe-4000 Oe, 3 Tracks, 12.7mm Wide	Applicable Card Type:	Standard CR80 Card, 0.3mm-1mm Thickness
Power Supply:	AC220V, 50/60Hz	Power:	6.1kW
Net Weight:	7.120kg	Machine Size:	L1400×W400×1300mm
Package Size &weight:	9.1 Plywood Case, GW 165KG, L1550×W550×1380mm	Magnetic Writing Head Service Lifetime:	10.200,000 To 300,000 Times
Magnetic Reading Head Service Lifetime:	11.400,000 To 500,000 Times.
Highlight:	Full Automatic Magnetic Card Encoder , Magnetic Card Encoder 6.1kW , RFID Card Encoder Machine

Product Description

RFID And Magnetic Card Encoder Machine Full Automatic 8000 Cards/Hour YDE-1

Product Specifications

Attribute	Value
Speed	8000 cards/hour for magnetic encoding operation 6000-7000 cards/hour for RFID chip reading operation 2000-4000 cards/hour for Chip data writing operation
Magnetic Record Density	2.210 BPI for track 1; 75 or 210 BPI for track 2; and 210 BPI for track3
Applicable Magnetic tripe	HiCo/LoCo, 300 oe-4000 oe, 3 tracks, 12.7mm wide
Applicable Card type	Standard CR80 card, 0.3mm-1mm thickness
Power supply	AC220V, 50/60Hz
Power	6.1kW
Net Weight	7.120kg
Machine size	L1400×W400×1300mm
Package size & weight	9.1 plywood case, GW 165KG, L1550×W550×1380mm
Magnetic writing head service lifetime	10.200,000 to 300,000 times
Magnetic reading head service lifetime	11.400,000 to 500,000 times

Product Description

RFID and Magnetic Card Encoder YDE-1 is a versatile card data personalization machine that combines RFID testing and magnetic encoding capabilities in one efficient unit.

Key Features

Performs RFID card electrical performance testing (identifies and rejects defective cards)
Reads, writes, and modifies data on RFID chips (supports HF/LF chips including Mifare S50/S70, Ultralight, Ntag series, Icode-2, and more)
Encodes magnetic stripes using source data files
Encodes magnetic stripes using data read from RFID chips
High-speed operation with throughput up to 8000 cards/hour for magnetic encoding
Compatible with standard CR80 cards (0.3mm-1mm thickness)
Supports both HiCo and LoCo magnetic stripes (300 oe-4000 oe)

Performance Specifications

Magnetic Encoding Speed	8000 cards/hour
RFID Reading Speed	6000-7000 cards/hour
Chip Writing Speed	2000-4000 cards/hour

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YDE-1

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	30-35days
Payment Terms:	T/T, Western Union, D/P, D/A
Supply Ability:	1 set per 35 days
