Name: RFID Card Magnetic Stripe Card Encoder And Reader Machine 1kW YDE-1
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YDE-1
Availability: InStock

Detail Information

Speed:	8000 Cards/hour For Magnetic Encoding Operation 6000-7000 Cards/hour For RFID Chip Reading Operation 2000- 4000 Cards/hour For Chip Data Writing Operation	Magnetic Record Density:	2.210 BPI For Track 1; 75 Or 210 BPI For Track 2; And 210 BPI For Track3
Applicable Magnetic Tripe:	HiCo/LoCo, 300 Oe-4000 Oe, 3 Tracks, 12.7mm Wide	Applicable Card Type:	Standard CR80 Card, 0.3mm-1mm Thickness
Power Supply:	AC220V, 50/60Hz	Power:	1kW
Net Weight:	120kg	Machine Size:	L1400×W400×1300mm
Package Size &weight:	9.1 Plywood Case, GW 165KG, L1550×W550×1380mm	Magnetic Writing Head Service Lifetime:	200,000 To 300,000 Times
Magnetic Reading Head Service Lifetime:	400,000 To 500,000 Times
Highlight:	RFID Card Magnetic Stripe Card Encoder , Magnetic Stripe Card Encoder 1kW , Magnetic Card Encoder And Reader 1kW

Product Description

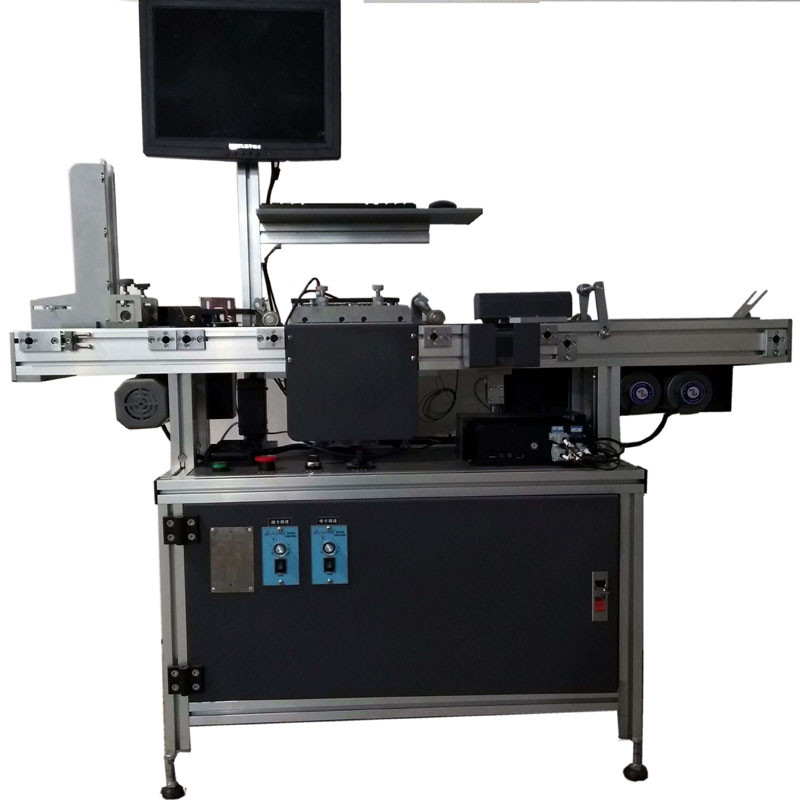

RFID Card Magnetic Stripe Card Encoder and Reader Machine YDE-1

Product Overview

The Mini Card Data Encoder YDE-1 Model 2017 is a professional-grade machine designed for reliable RFID chip encoding and magnetic stripe card processing. This industrial solution combines high-speed operation with precision data handling for secure card production.

Key Capabilities

RFID card electrical performance testing with automatic bad card rejection
Comprehensive RFID chip operations including reading, writing, and password changes
Magnetic stripe encoding from source data files or RFID chip data
Supports wide range of RFID chips including Mifare, Ntag, Icode, and EM series

Standard Configuration

Card feeding magazine
RFID encoding unit (1-head model)
Magnetic stripe encoding unit
Card rejection box
Good card collection unit

Technical Specifications

Attribute	Value
Processing Speed	8,000 cards/hour (magnetic encoding) 6,000-7,000 cards/hour (RFID reading) 2,000-4,000 cards/hour (chip writing)
Magnetic Record Density	Track 1: 210 BPI Track 2: 75 or 210 BPI Track 3: 210 BPI
Applicable Magnetic Stripe	HiCo/LoCo, 300 oe-4000 oe, 3 tracks, 12.7mm wide
Card Compatibility	Standard CR80 card, 0.3mm-1mm thickness
Power Requirements	AC220V, 50/60Hz, 1kW
Dimensions (Machine)	L1400 × W400 × H1300mm
Dimensions (Packaged)	L1550 × W550 × H1380mm
Weight	Net: 120kg, Gross: 165kg (9.1 plywood case)
Service Lifetime	Magnetic writing head: 200,000-300,000 cycles Magnetic reading head: 400,000-500,000 cycles

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YDE-1

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	25-35days
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 set per year
