YSCB-1 Auto Sheet Bonding Machine with Ultrasonic Technology 2000 sheets/h

YSCB-1 Auto Sheet Bonding Machine with Ultrasonic Technology 2000 sheets/h
YSCB-1 Auto Sheet Bonding Machine with Ultrasonic Technology 2000 sheets/h YSCB-1 Auto Sheet Bonding Machine with Ultrasonic Technology 2000 sheets/h YSCB-1 Auto Sheet Bonding Machine with Ultrasonic Technology 2000 sheets/h
Basic Information
Place of Origin: China
Brand Name: YL
Model Number: YSCB-1
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: 1 plywood case
Delivery Time: 30-35days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 1 set per 35 days
Get Best Price
Chat Now
Detail Information
Control Mode: PLC+Servo System Dimension: L2150×W950×H1650mm
Weight: About 300kgs Power: 2.5kw
Power Supply: AC 380V/50 HZ Productivity: 2000 Sheets/h
Highlight:

Automatic Ultrasonic Bonding Machine

,

Ultrasonic Bonding Machine 2000 Sheets/H

Product Description

YSCB-1 Auto Sheet Picking Collating And Bonding Machine with Ultrasonic Bonding Technology
Key Specifications
Attribute Value
Control mode PLC+Servo system
Dimension L2150×W950×H1650mm
Weight Approximately 300kg
Power 2.5kw
Power supply AC 380V/50 HZ
Productivity 2000 sheets/h
Product Overview
This automatic sheet collating and bonding machine is designed for efficiently picking, collating and bonding sheets (2 printed sheets + 1 middle core sheet or just 2 printed sheets), significantly enhancing plastic card production efficiency.

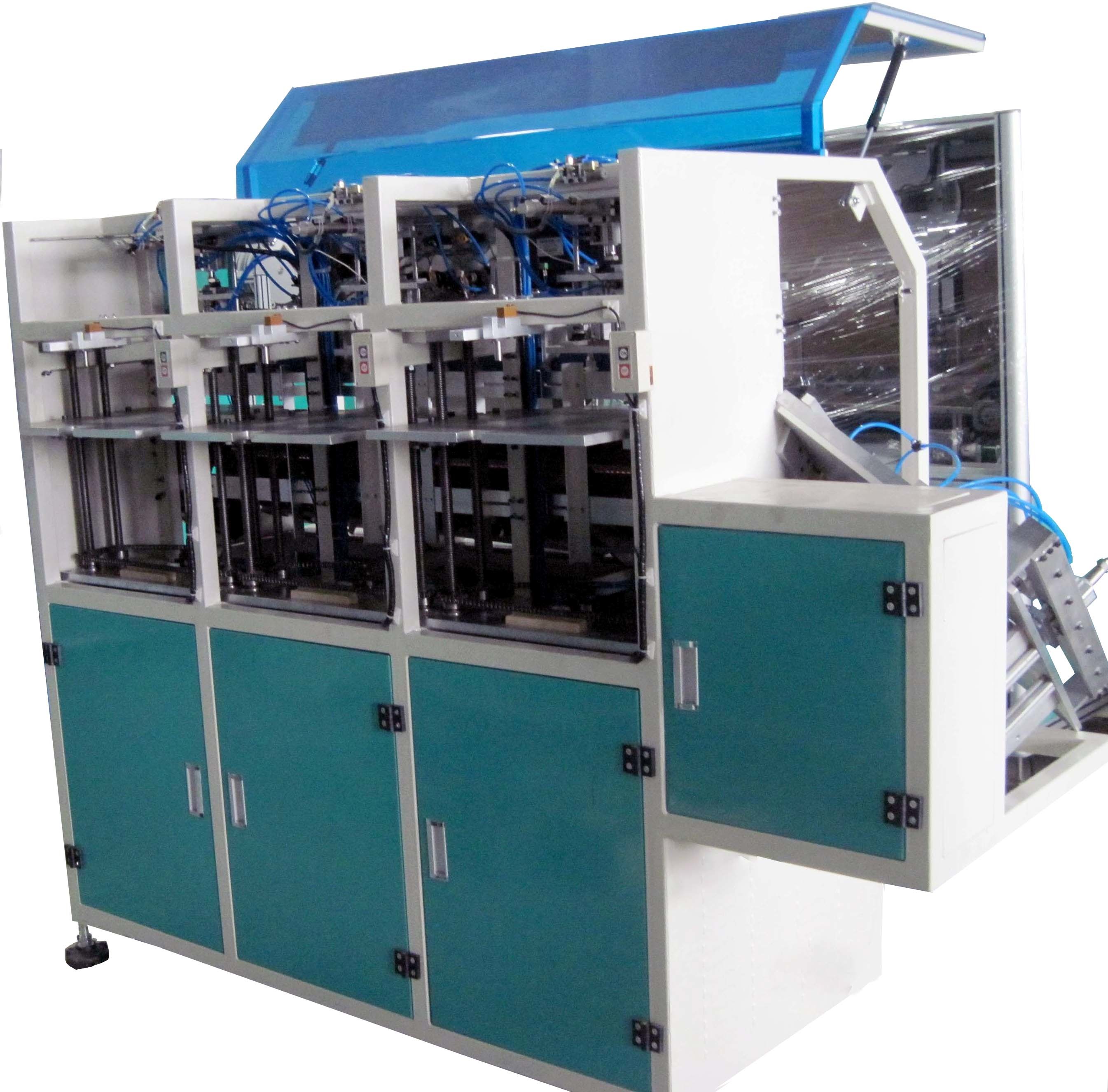

YSCB-1 Auto Sheet Bonding Machine with Ultrasonic Technology 2000 sheets/h 0
Key Features
  • Utilizes mature ultrasonic bonding technology for superior bonding quality
  • PLC-controlled with large LCD display and servo system for automatic sheet transmission
  • Easy parameter setting with fast operation speed and high precision
  • Thickness detection prevents incorrect sheet combinations
  • Works with 2 printed sheets + 1 middle core sheet or just 2 printed sheets (minimum sheet thickness: 0.12mm)
  • Stable, reliable sheet picking without surface scratches
  • Scratch-free sheet conveying throughout the entire process

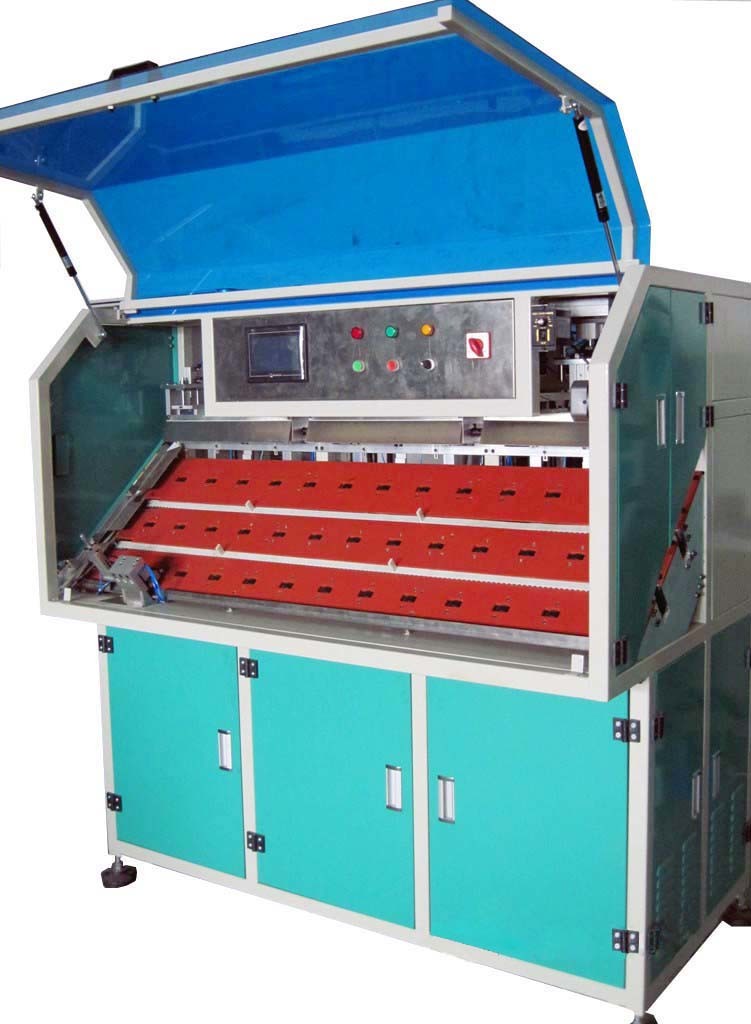

YSCB-1 Auto Sheet Bonding Machine with Ultrasonic Technology 2000 sheets/h 1
Technical Parameters
Power supply AC 380V/50 HZ
Control mode PLC+Servo system
Air resource 6 kg/c㎡(dry)
Dimension L2150×W950×H1650mm
Power 2.5KW
Operator number 1
Air consumption Around 80L/min
Productivity 2000 sheets/h
Weight Approximately 300Kg
Applications

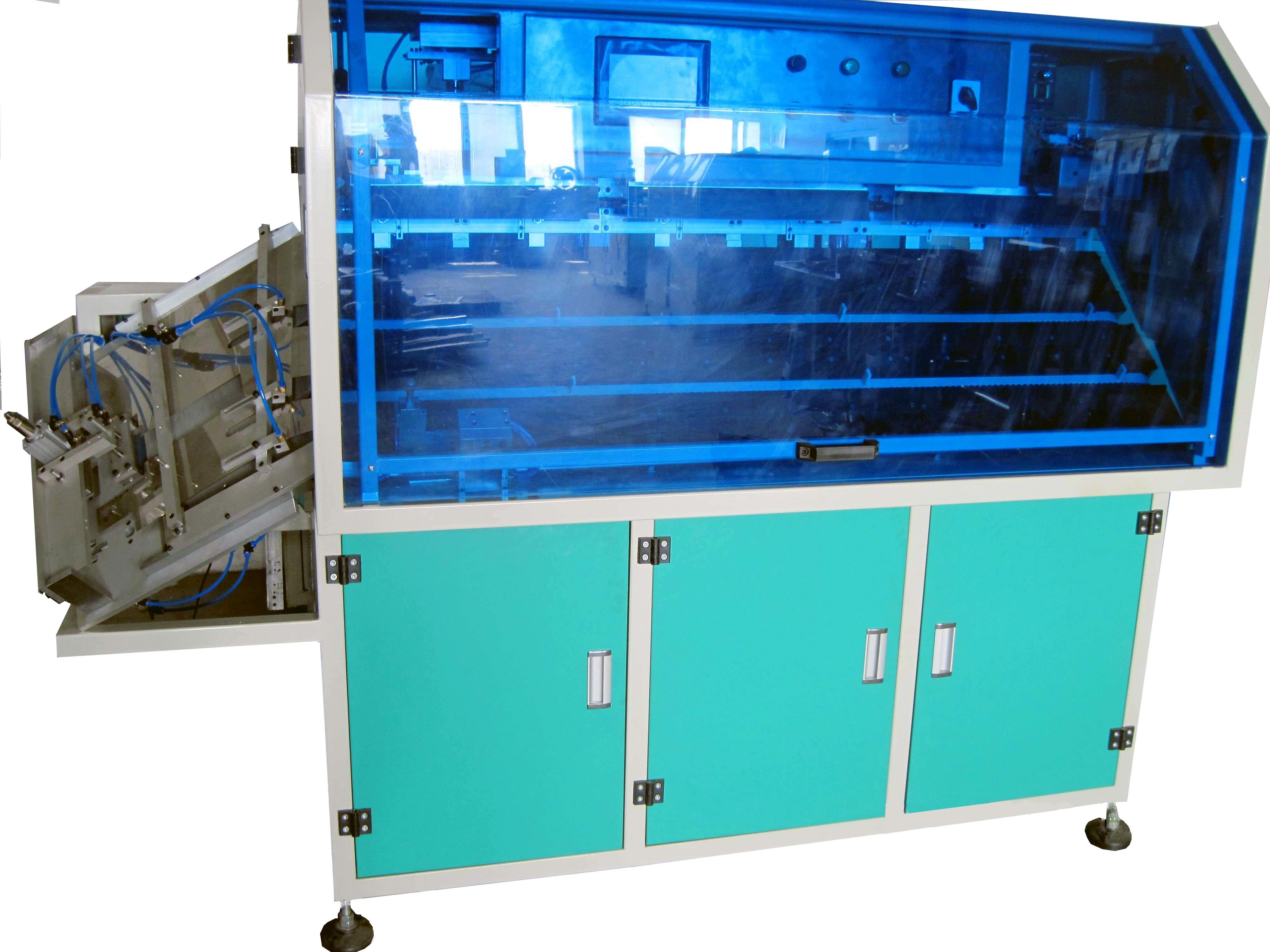

YSCB-1 Auto Sheet Bonding Machine with Ultrasonic Technology 2000 sheets/h 2
