Name: YEDU-1E Card DOD Printer Data Encoder 6000 Cards/Hour
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YEDU-1E
Availability: InStock

Detail Information

Power Supply:	AC 220 V50/60 Hz	Material Specifications:	ISO Standard Card, No Deformation, No Sharpening, No Static Electricity
Equipment Size:	L 2380 Mm W 7 00 Mm H 1 5 00 Mm	Working Speed:	Induction Card Speed ≤ 6000 Cards /hour Printing Speed ≤ 80 000 Sheets/hour
Compressed Air:	≤ 6.5 Kg / CM2	Control Mode:	Computer + PLC Program Control
Highlight:	Card Drop On Demand Printer Data Encoder , Economic Type smart card machines , PLC Program Control smart card machines

Product Description

Economic Type Card Drop On Demand Printer And Data Encoder PLC Program Control YEDU-1E

Product Specifications

Attribute	Value
Power supply	AC 220 V50/60 Hz
Material specifications	ISO standard card, no deformation, no sharpening, no static electricity
Equipment size	L 2380 mm W 700 mm H 1500 mm
Working speed	Induction card speed ≤ 6000 cards/hour Printing speed ≤ 80,000 sheets/hour
Compressed air	≤ 6.5 Kg/CM²
Control mode	Computer + PLC program control

Product Overview

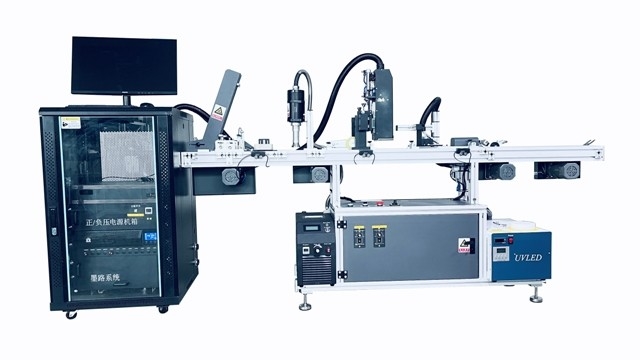

The Economic Type Card Drop-on-Demand Printer and Data Encoder YEDU-1E is a high-performance card personalization machine offering exceptional value. Also known as Card DOD Data Personalization Machine or Speedy Card DOD Printing Machine, it delivers reliable drop-on-demand printing after reading UID from RFID cards, featuring the robust RICOH G5 printer.

Key Features

High-speed, high-resolution inkjet printing (Japanese Ricoh G5) with plasma treatment and LED UV drying
Maximum printing width of 45mm with 600 DPI (vertical) and 1200 DPI (horizontal) resolution
Adjustable printing speed up to 80 meters/minute for various content types including barcodes, QR codes, and images
Standard high-frequency HF reader with optional UHF reader available
User-friendly operating software compatible with multiple chip manufacturers
Advanced RFID card data encoding, encryption, and tracking functions
Optional modular upgrades including laser marking and OCR visual inspection units

Technical Parameters

Specification	Detail
Print head	Japanese Ricoh G5 54mm UV Printing System
Printing resolution	600 DPI (vertical), 1200 DPI (horizontal)
Speed	Induction: ≤6000 cards/hour Printing: ≤80,000 sheets/hour
Power requirements	AC 220 V50/60 Hz
Dimensions	L 2380 × W 700 × H 1500 mm

Applications

The YEDU-1E is ideal for high-volume card personalization applications including ID cards, membership cards, and secure access cards. Its versatile printing capabilities make it suitable for various industries requiring reliable card encoding and printing solutions.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YEDU-1E

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	1 plywood case
Delivery Time:	35 working days
Payment Terms:	T/T, Western Union, D/P, D/A
Supply Ability:	1 set per 35days
