Name: YDPV-2 Automatic RFID Smart Card Personalization Machine 6000 Cards/Hour
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YDPV-2
Availability: InStock

Detail Information

Device Size:	L2100W550H1500mm	Power Supply:	AC220, 50/60 Hz
Equipment Air Source:	6.5Kg/CM2, 30L/M	Control Mode:	Industrial Control Machine +PLC;
Gross Weight:	Around 120KG.	Speed:	3500-6000 Cards/hour
Highlight:	Automatic Smart Card Personalization Machine , Smart Card Personalization Machine 6000 Cards/Hour

Product Description

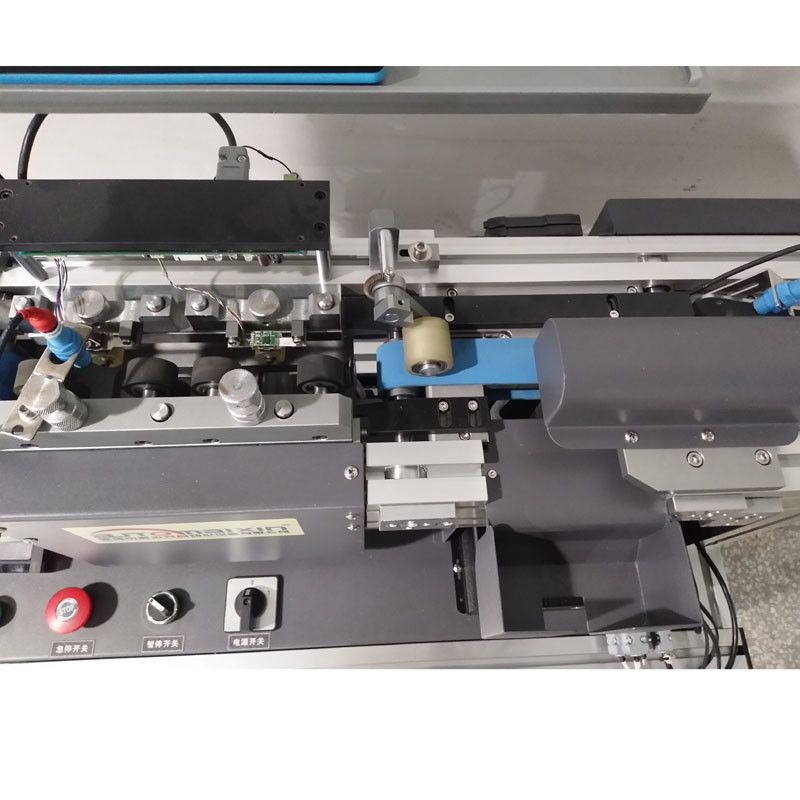

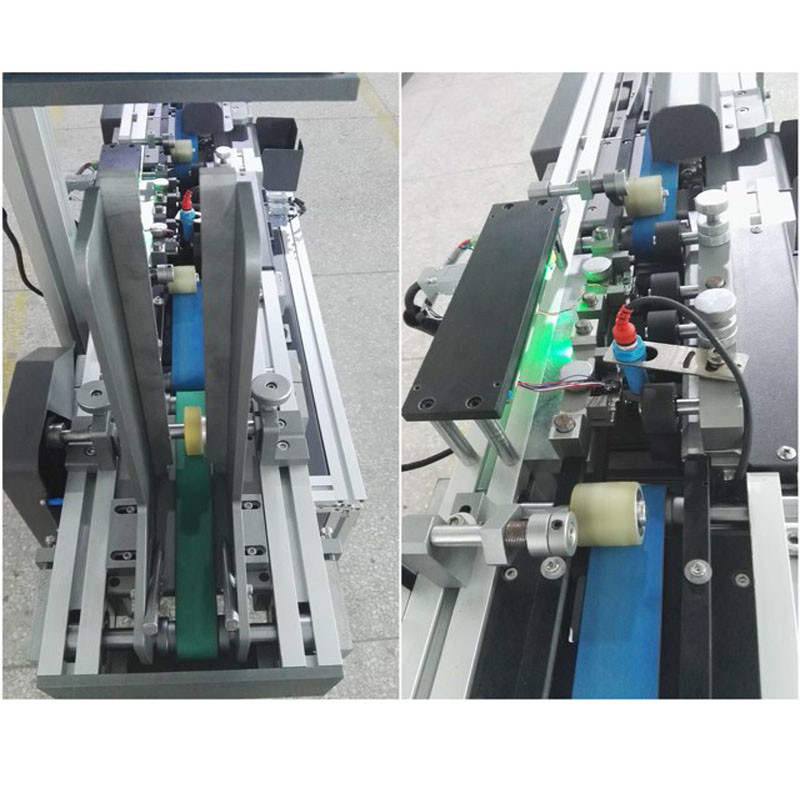

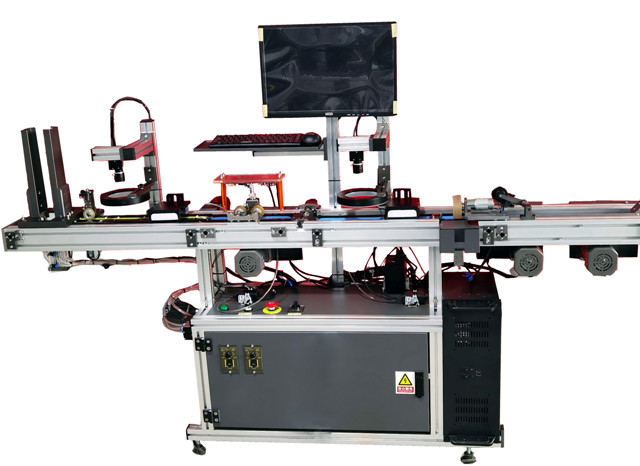

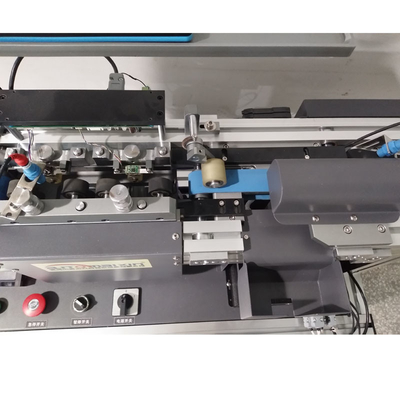

RFID Smart Card Data Personalization And Verification Machine YDPV-2

Product Specifications

Attribute	Value
Device size	L2100W550H1500mm
Power supply	AC220, 50/60 Hz
Equipment air source	6.5Kg/CM2, 30L/M
Control mode	Industrial control machine + PLC
Gross weight	Approximately 120KG
Speed	3500-6000 cards/hour

Product Overview

The RFID Smart Card Data Personalization and Verification Machine YDPV-2 is designed for comprehensive smart card processing, including RFID chip and magnetic stripe reading/writing, with OCR inspection and card turn-over capabilities.

Key Features

RFID card electrical performance testing
HF/LF RFID chip reading/writing (supports multiple card types including Mifare S50, S70, Ultralight, etc.)
Magnetic stripe encoding (HICO/LOCO, non-financial cards only)
Comprehensive quality control through OCR, RFID, and magnetic stripe data verification
Optional laser engraving module for card surface marking

Technical Parameters

Device size: L2100*W550*H1500mm
Power supply: AC220, 50/60 Hz
Equipment air source: 6.5Kg/CM2, 30L/M
Control mode: Industrial control machine + PLC
Weight: Approximately 120KG
Processing speed: 3500-6000 cards/hour

Applications

The YDPV-2 machine is ideal for smart card personalization and quality control in various industries requiring secure card production.

Note: The magnetic stripe encoding unit processes standard magnetic cards (HiCo/LoCo, 300oe-4000oe, 3 tracks) but may not meet ISO 7811 specifications for high-end financial bank cards.

Also known as: Smart Card Data Personalization Machine, Smart Card Data Inspection Machine, Smart Card Data Verification Machine, or Smart Card Quality Control Machine YDPV-2.
