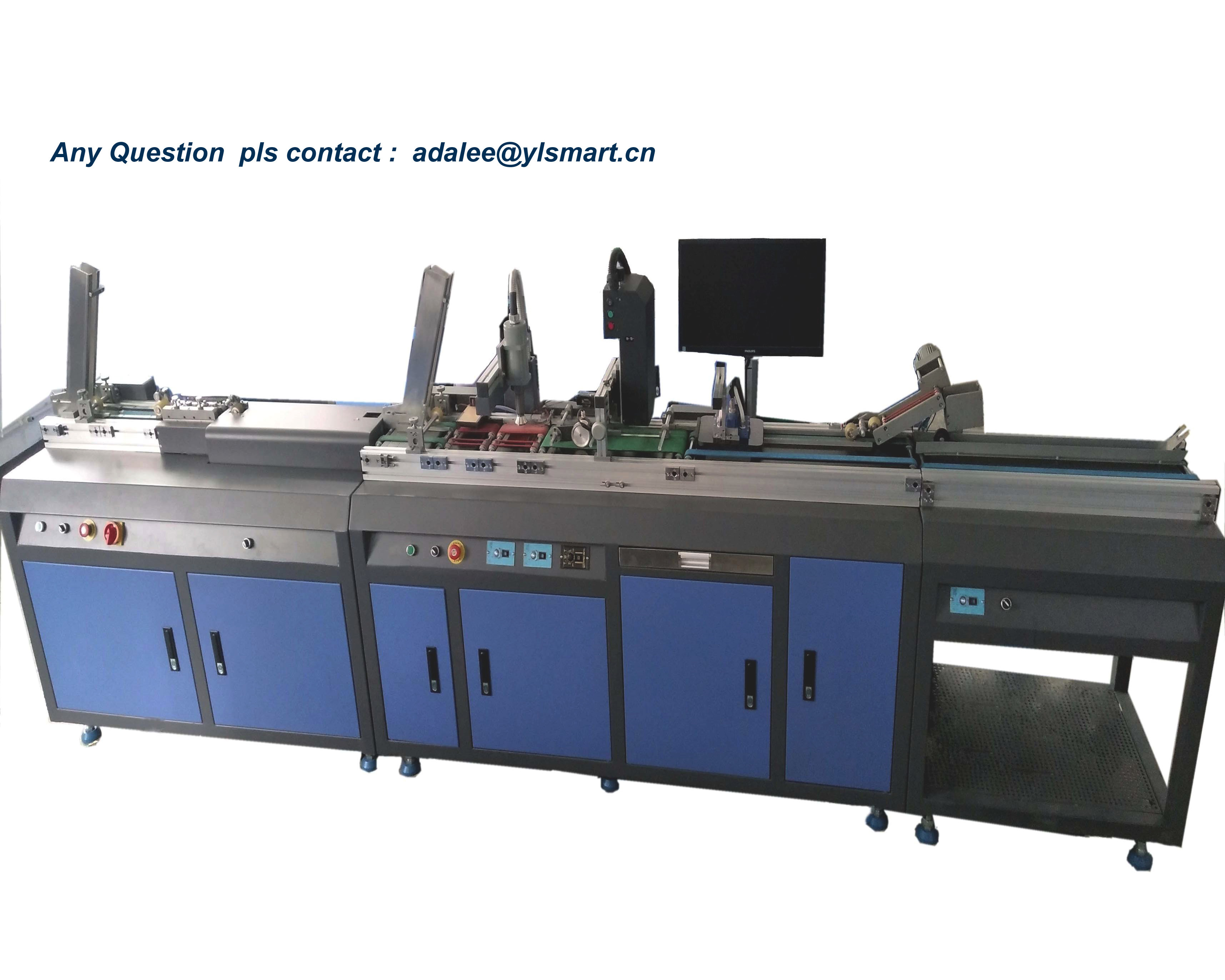

YEDU-1B 72mm DOD Inkjet Card Printer For Smart Card Personalization

The YEDU-1B Card DOD Personalization Machine is designed for high-quality personalization of various smart cards including loyalty cards, magnetic cards, RFID cards, and dual-interface cards. It features drop-on-demand inkjet printing with optional RFID chip encoding, magnetic stripe encoding, scratch card labeling, and laser engraving capabilities.

Standard configuration includes:

• Card feeder (CR80 size)
• RFID card encoder (HF/LF)
• Plasma treatment unit
• DOD Black/White printing unit (72mm wide by SEIKO)
• LED UV solidification unit
• Bad card rejection unit
• Good card collection unit

• RFID Chip Encoding Unit: Supports various RFID chips including Mifare S50, S70, Ultralight, and more with speeds up to 7000 cards/hour
• Magnetic Stripe Encoder: Encodes three tracks or any single/two tracks at 7000-8000 cards/hour
• OCR Inspection Unit: Verifies printed numbers, barcodes, and QR codes at 7000-8000 cards/hour
• Scratch Labeling Unit: Applies multiple scratch-off labels simultaneously at 7000-8000 cards/hour
• Laser Engraving Unit: Available in CO2, optical fiber, or ultraviolet types for precise marking

• Modular design allows for easy upgrades and function expansion

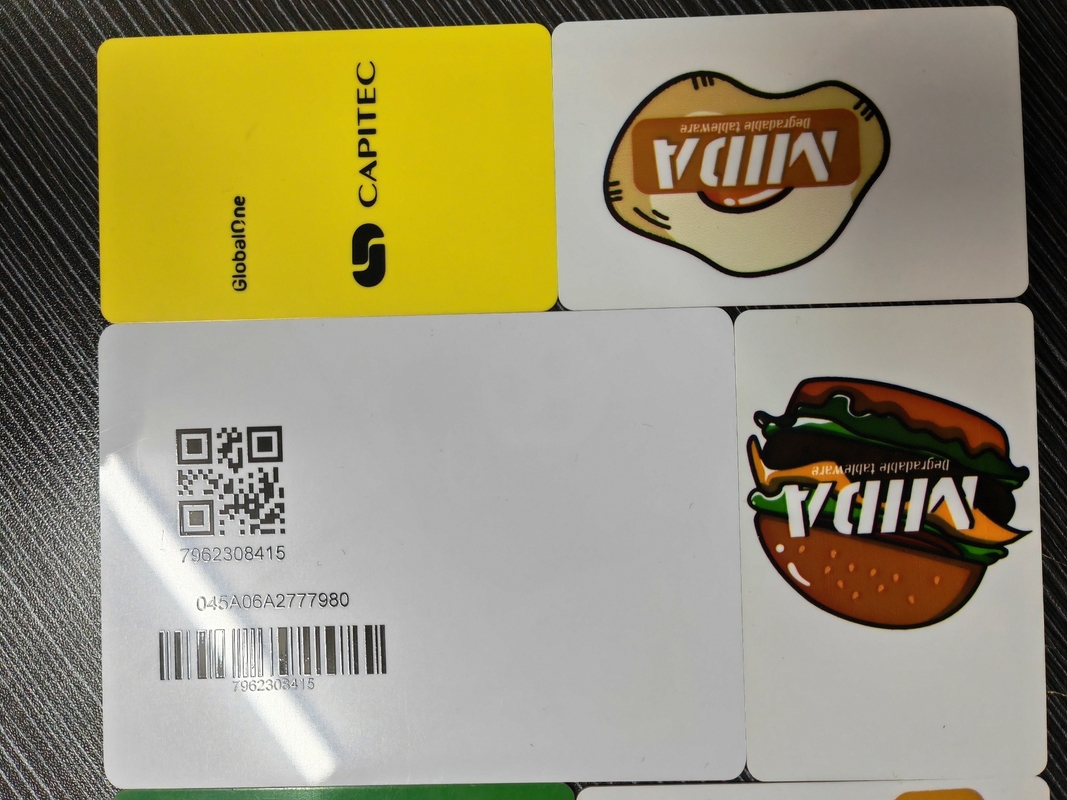

• High-resolution DOD printing produces durable, lightfast results resistant to water, wear, and solvents
• Full-width printing capability (72mm) for complete card coverage
• Industrial computer + motion control system for precise operation
• SDK and DLL provided for custom software development

The YEDU-1B features a 72mm SEIKO print head for full-width card printing, while the YEDU-1A uses a 36mm Konica print head for partial-width printing. For two-side printing in one pass, consider the YEDU-2A or YEDU-2B models.
