DOD Smart Card Personalization Machine 6KW 36mm Printer Two Side Printing

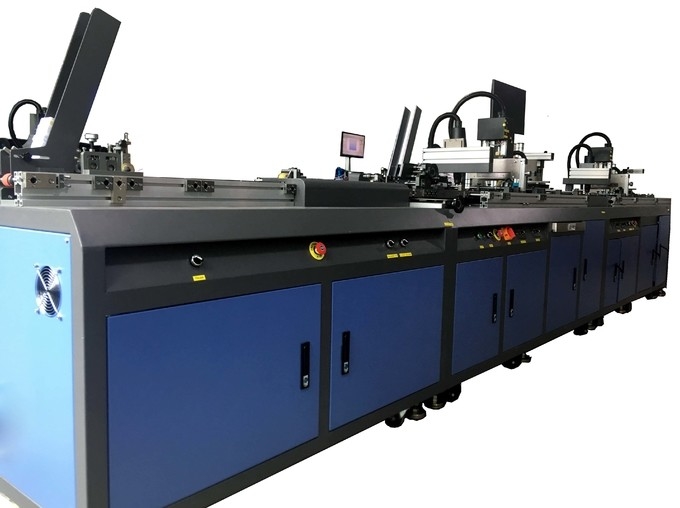

The Card DOD Personalization Machine YEDU-2A is a high-performance system designed for two-side card printing in one pass, working with various functional modules. It offers comprehensive smart card personalization through:

• High-quality DOD (drop-on-demand) inkjet printing with KONICA 36mm print head
• RFID chip encoding (optional)
• Magnetic stripe encoding (optional)
• Scratch card labeling (optional)
• Laser engraving unit (optional)

Standard configuration includes:

• Card feeder (CR80 size)
• RFID card encoder (HF/LF)
• Plasma treatment unit
• DOD black ink printing unit (36mm wide KONICA)
• LED UV solidification unit
• Card turn-over unit
• DOD white ink printing unit (36mm wide KONICA)
• Bad card rejection unit
• Good card collection unit

• Speed: 8000-10000 cards/hour (Read UID+DOD printing), 2000-4000 cards/h (chip data writing), 7000-8000 cards/h (magnetic stripe encoding)
• Print head: KONICA 36mm black/white ink
• Printing resolution: 360-720 DPI adjustable
• Max. printing speed: 25 meters/min
• Optimal printing speed: 20 meters/min
• Compressed air: 6KG/CM2,10L/min
• Power supply: AC220V, 50/60HZ, 6KW
• LED UV: 395NM, 400W
• Control system: Industrial computer + motion control
• Net weight: 1000-1500kg (configuration dependent)
• Dimensions: L(5000-7500mm)×W650mm×H1680mm

The YEDU series includes four models:

• YEDU-1A/YEDU-1B: Single-side printing (36mm/72mm print width)
• YEDU-2A/YEDU-2B: Dual-side printing in one pass (36mm/72mm print width)

The 72mm models (YEDU-1B/YEDU-2B) feature SEIKO print heads for full-width card printing capability.
