Name: CMYK 4 Color DOD Inkjet Smart Card Personalization Machine YDP-MC
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YDP-MC
Availability: InStock

Detail Information

Speed:	8000-10000 Cards/hour (print-only Mode)	Print Head And Max. Printing Width:	RICOH Z5, 54mm, CMYK 4 Colors
Equipment Size:	Around L(3000-7000)mm×W650mm×H1680 Mm	Power:	AC220V, 50/60HZ, 10KW
Compressed Air:	6KG/CM2, 30L/min	Control Mode:	Industrial Computer + Motion Control System
Highlight:	4 Color Smart Card Personalization Machine , CMYK Smart Card Personalization Machine , DOD Inkjet Smart Card Machine

Product Description

Colorful Inkjet Smart Card Personalization Machine For Magnetic And RFID Card YDP-MC

Key Specifications

Attribute	Value
Speed	8000-10000 cards/hour (print-only mode)
Print head and Max. printing width	RICOH Z5, 54mm, CMYK 4 colors
Equipment size	around L(3000-7000)mm×W650mm×H1680 mm
Power	AC220V, 50/60HZ, 10KW
Compressed air	6KG/CM2, 30L/min
Control mode	Industrial computer + motion control system

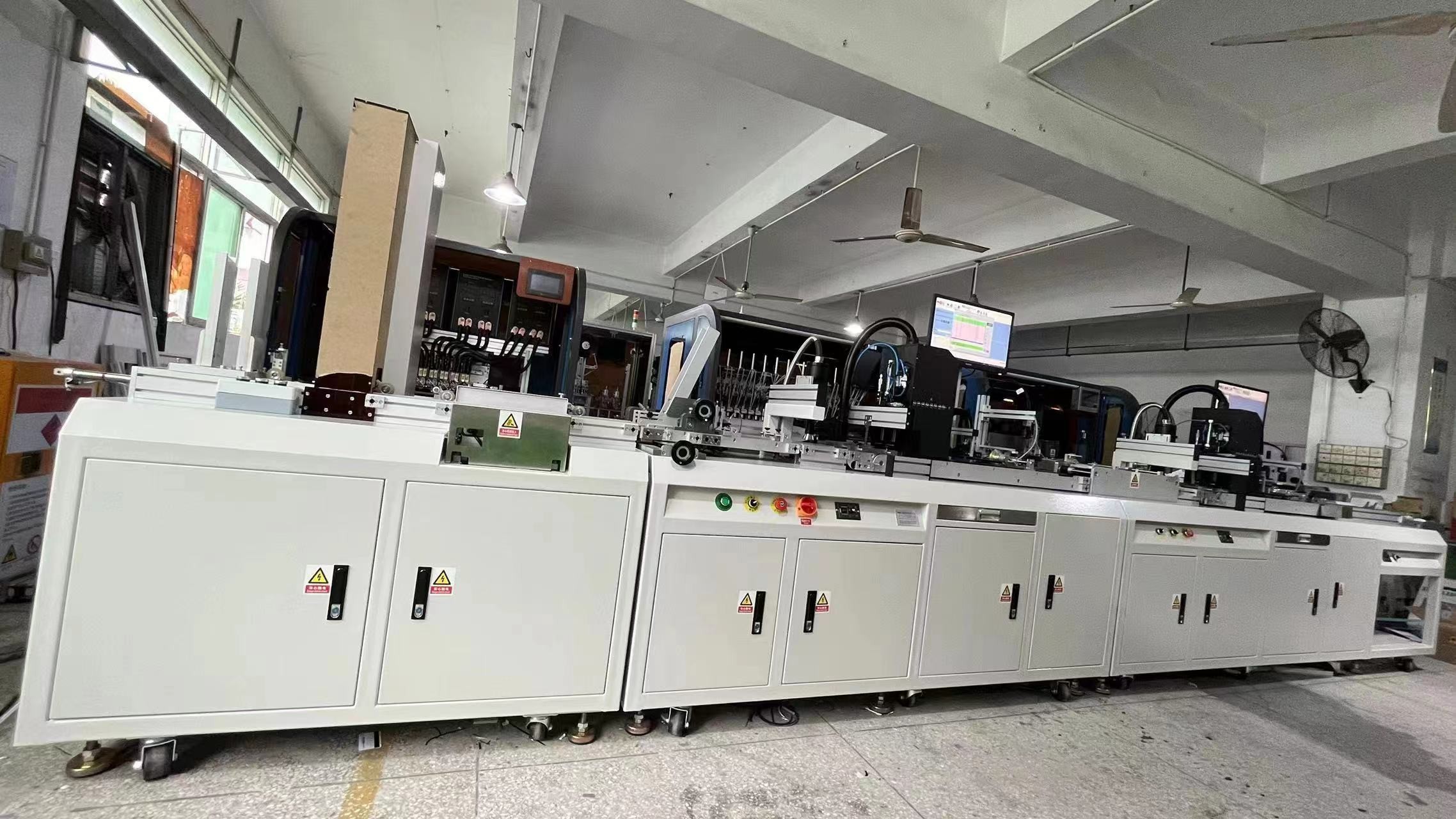

Multicolor DOD Card Personalization Machine YDP-MC

High-precision 4-color CMYK inkjet printing system with Japanese RICOH print head technology for magnetic and RFID card personalization.

Machine Functional Configuration

Card feeder (CR80 standard size)
RFID Chip Encoding Unit
Plasma treatment unit
DOD 4-color inkjet Printing unit (54mm wide RICOH)
LED UV Solidification unit
Card Collection unit

Note: Modular design allows for optional functional modules including magnetic stripe encoding, RFID encoding, OCR inspection, scratch labeling, and laser engraving.

Optional Modules

RFID Chip Encoding: Supports HF/LF chips including Mifare, Ntag, Icode series (7000 cards/h reading, 2000-4000 cards/h writing)
Magnetic Stripe Encoder: Encodes 3 tracks (7000-8000 cards/hour)
OCR Inspection: Verifies printed numbers, barcodes (7000-8000 cards/hour)
Scratch Labeling: Applies multiple scratch-off labels simultaneously
Laser Engraving: CO2, fiber, or UV laser options for precise marking

Technical Parameters

Print resolution: 360-720 DPI adjustable
Max printing speed: 25 meters/min (30 meters/min for best quality)
LED UV: 395NM, 400W
Net weight: 600-1500kg (configuration dependent)

Applications

Ideal for high-volume card personalization including ID cards, membership cards, and secure access cards with optional encoding features.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YDP-MC

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	1-2 plywood case
Delivery Time:	50 working days
Payment Terms:	T/T, Western Union, D/P, D/A, Western Union
Supply Ability:	1 set per 45 days
