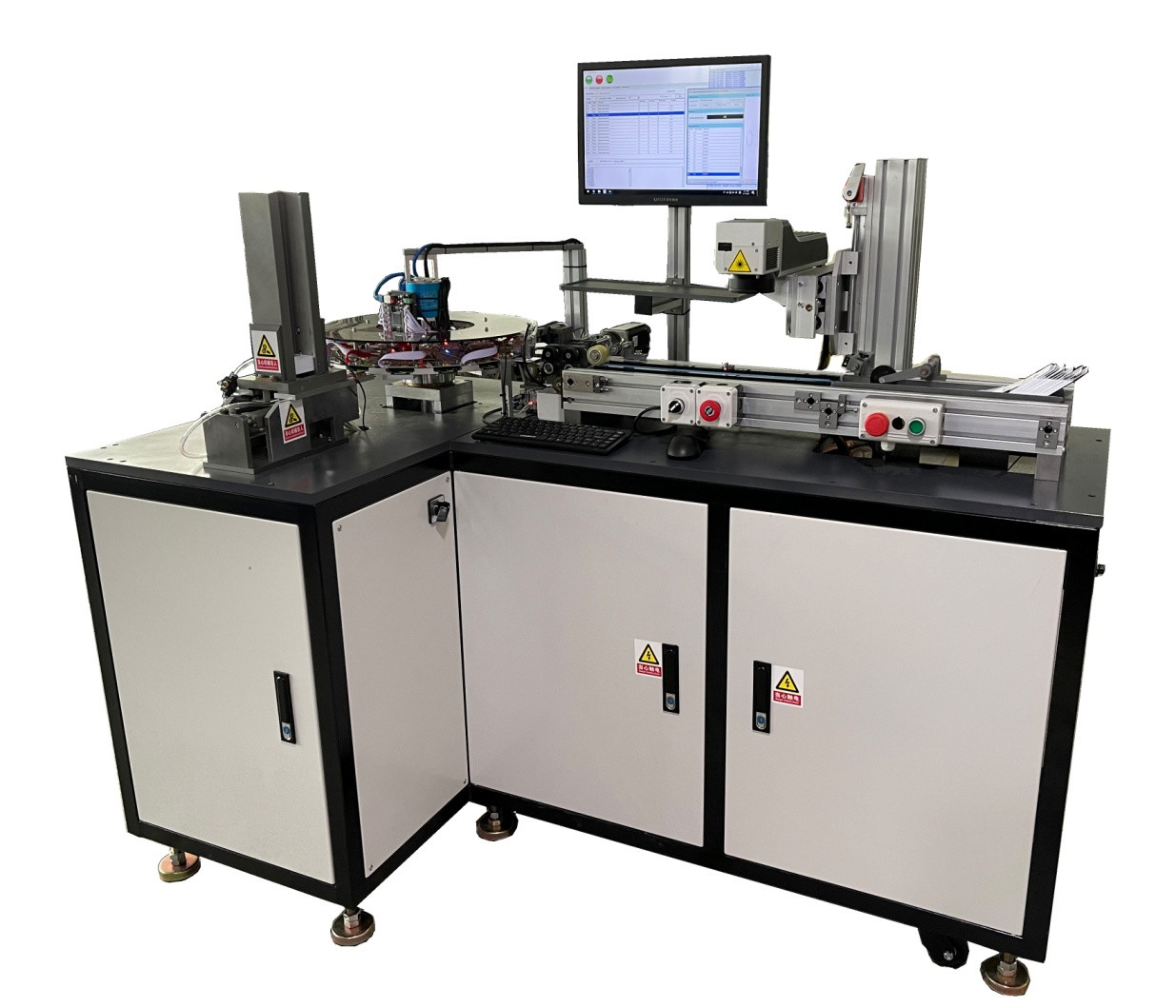

Name: 3500 - 6000 Cards/Hour Smart Card Personalization Machine AC220V 50/60 Hz Power Supply
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YDPV-2
Availability: InStock

Detail Information

Dimension:	L2100W550H1500mm	Power Supply:	AC220, 50/60 Hz
Equipment Air Source:	6.5Kg/CM2, 30L/M	Control Mode:	Industrial Control Machine +PLC
GW:	Around 120KG	Speed:	3500-6000 Cards/hour
Highlight:	6000 Cards/Hour Smart Card Personalization Machine 6000 Cards/Hour , 3500 Cards/Hour Smart Card Personalization Machine 6000 Cards/Hour , Card Personalization Machine AC220V

Product Description

Smart Card Data Personalization And Verification Machine 3500-6000 Cards/Hour

Product Specifications

Attribute	Value
Dimension	L2100W550H1500mm
Power supply	AC220, 50/60 Hz
Equipment air source	6.5Kg/CM2, 30L/M
Control mode	Industrial control machine + PLC
GW	Around 120KG
Speed	3500-6000 cards/hour

Product Overview

The Smart Card Data Personalization and Verification Machine YDPV-2 is designed for comprehensive smart card processing, featuring RFID chip and magnetic stripe reading/writing capabilities with OCR inspection and card turn-over functionality.

Key Features

RFID card electrical performance testing
HF/LF RFID card chip reading/writing (supports multiple card types including Mifare S50, S70, Ultralight, Ntag series, Icode-2, and more)
Magnetic stripe encoding (HICO/LOCO for non-financial cards)
Comprehensive quality control through OCR, RFID, and magnetic stripe data verification
Optional laser engraving module for card surface marking

System Configuration

The machine features a complete processing line including card feeding magazine, multi-card feeding check unit, dual OCR inspection units, RFID encoding/reading units, magnetic stripe encoding, card flipper, and bad card rejection system.

Note: The magnetic stripe encoding unit processes standard magnetic cards (HiCo/LoCo, 3 tracks) but may not meet strict ISO 7811 specifications for high-end financial bank cards.

Technical Parameters

Device size	L2100W550H1500mm
Power supply	AC220, 50/60 Hz
Equipment air source	6.5Kg/CM2, 30L/M
Control mode	Industrial control machine + PLC
GW	Around 120KG
Speed	3500-6000 cards/hour

Comprehensive Service Package

Pre-Sale Services:

Professional consultation on raw materials and machine selection
Customized equipment recommendations
Factory visits and invitation assistance
Detailed company and product documentation

Sales Services:

Production scheduling updates
Quality supervision and product acceptance
Timely shipping coordination

After-Sale Support:

On-site installation and commissioning
Comprehensive operator training
Lifetime technical support
Regular customer follow-up and feedback collection

Warranty & Support

We provide a 1-year warranty with efficient service response. For complex technical issues, we offer on-site support within the warranty period.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YDPV-2

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export plywood case
Delivery Time:	30-45days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 sets per quarter
