YEDU-1B DOD Inkjet Card Printer 36mm 54mm 72mm SEIKO Head Smart Card Personalization

YEDU-1B DOD Inkjet Card Printer 36mm 54mm 72mm SEIKO Head Smart Card Personalization
YEDU-1B DOD Inkjet Card Printer 36mm 54mm 72mm SEIKO Head Smart Card Personalization YEDU-1B DOD Inkjet Card Printer 36mm 54mm 72mm SEIKO Head Smart Card Personalization YEDU-1B DOD Inkjet Card Printer 36mm 54mm 72mm SEIKO Head Smart Card Personalization YEDU-1B DOD Inkjet Card Printer 36mm 54mm 72mm SEIKO Head Smart Card Personalization YEDU-1B DOD Inkjet Card Printer 36mm 54mm 72mm SEIKO Head Smart Card Personalization
Basic Information
Place of Origin: China
Brand Name: YL
Model Number: YEDU-1B
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1-2 plywood case
Delivery Time: around 45-55 working days
Payment Terms: T/T, Western Union, D/P, D/A, Western Union, MoneyGram
Supply Ability: 1 set per 45 days
Get Best Price
Chat Now
Detail Information
Model NO.: YEDU-1B Print Head And Max. Printing Width: SEIKO 72mm Black Ink (or White Ink).
Origin: China Ambient Temperature: 0-40degree
Compressed Air: 6KG/CM2,10L/min. Transport Package: Transport Package
Dimesion: Around L(2300/4300/5600mm)×W650mm×H1600 Mm Weight: About 500-950kgs
Highlight:

DOD Card printer 72mm

,

DOD Card printer 54mm

,

DOD Card printer 36mm

Product Description

YEDU-1B Drop On Demand Inkjet DOD Card Printer
36mm, 54mm, 72mm Printing Length Card DOD Personalization Line
Product Specifications
Attribute Value
Model NO. YEDU-1B
Print head and Max. printing width SEIKO 72mm black ink (or white ink)
Origin China
Ambient Temperature 0-40°C
Compressed air 6KG/CM², 10L/min
Transport Package Standard export packaging
Dimension L(2300/4300/5600mm) × W650mm × H1600mm
Weight 500-950kg
Product Overview
YEDU-1B DOD Inkjet Card Printer 36mm 54mm 72mm SEIKO Head Smart Card Personalization 0
The YEDU-1B Card DOD Personalization Machine is designed for high-quality personalization of various smart cards including loyalty cards, magnetic cards, RFID cards, and dual-interface cards. It features:
  • High-quality DOD (drop-on-demand) inkjet printing
  • RFID chip encoding (optional)
  • Magnetic stripe encoding (optional)
  • Scratch card labeling (optional)
  • Laser engraving unit (optional)
Ideal for financial cards, social security cards, and membership cards, with functions including magnetic stripe encoding, contactless encoding, double side DOD printing, and OCR detection.
Technical Specifications
Parameter Value
Throughput 10,000 cards/h (print-only mode)
Standard card size 85.6×54×(0.5-0.8)mm
Total Power 6KW
Power Supply AC 220V, 50/60Hz
Working temperature 0-40°C
Compressed air supply 0.6-0.8 MPA
Working relative humidity 15-90%
Key Features
RFID Chip Encoding Unit
Reads UID from most RFID card chips (HF/LF) and writes data to various chip types including Mifare S50, S70, Ultralight, Ntag series, and more. Speed: 2,000-7,000 cards/h depending on data size.
Magnetic Stripe Encoder
Encodes three tracks or any single/two tracks on magnetic cards (excluding financial bank cards) at 7,000-8,000 cards/hour. German magnetic card encoder available for financial bank cards.
OCR Inspection Unit

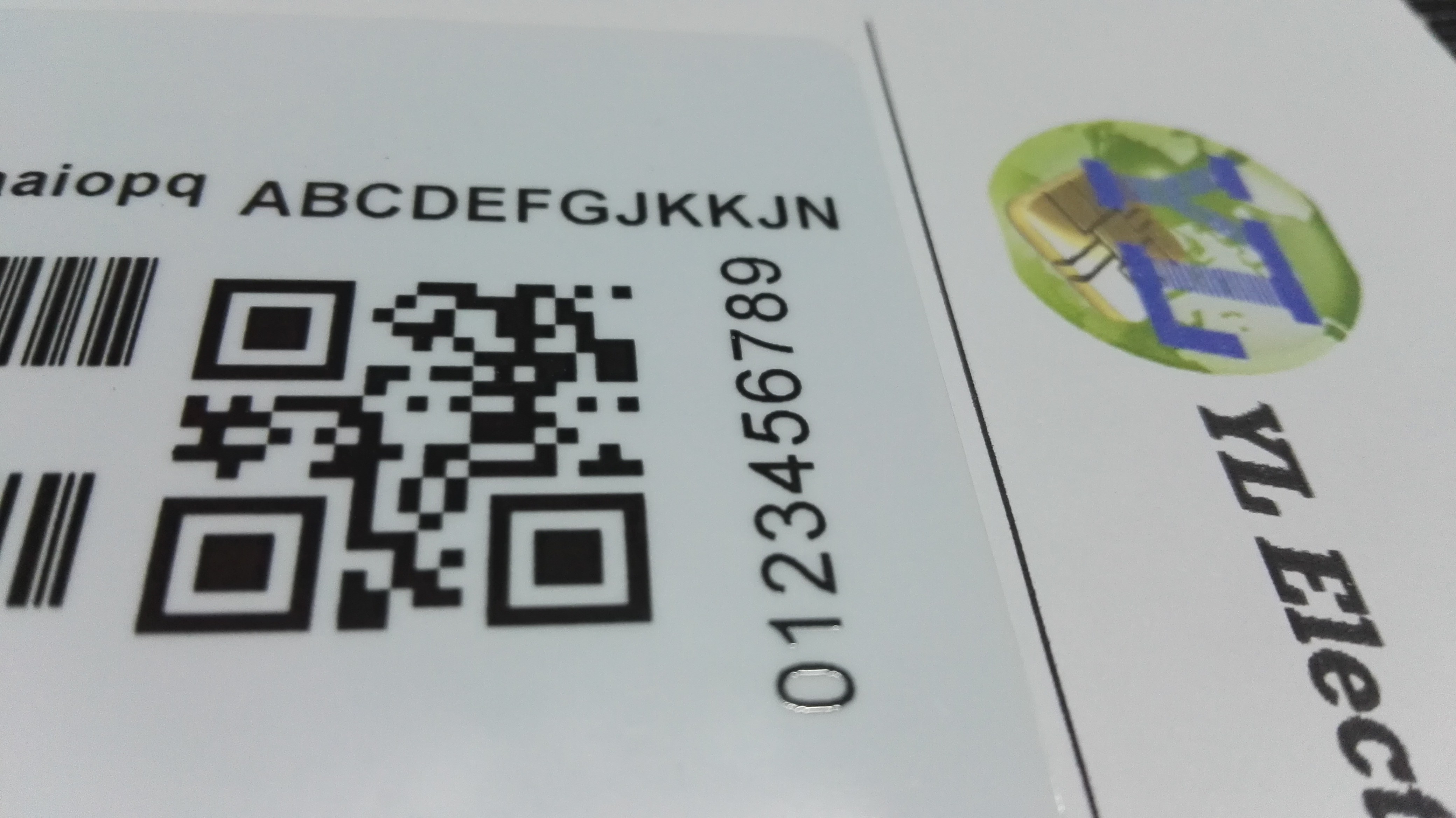

Verifies printed numbers, barcodes, and QR codes against database records at 7,000-8,000 cards/hour.
Scratch Labeling Unit
Applies multiple scratch-off labels simultaneously at 7,000-8,000 cards/hour.
Laser Engraving Unit
Available in CO2, optical fiber, or ultraviolet types for precise marking of serial numbers, logos, QR codes, etc.
Performance Specifications
  • Speed: 8,000-10,000 cards/h (print-only mode)
  • Print head: SEIKO 72mm black/white ink
  • Printing resolution: 360-720 DPI adjustable
  • Max printing speed: 25 meters/min
  • Optimal quality speed: 20 meters/min
  • LED UV: 395NM, 400W
  • Control: Industrial computer + motion control system
YEDU-1B DOD Inkjet Card Printer 36mm 54mm 72mm SEIKO Head Smart Card Personalization 1
Additional Features
Modular Design: Allows for easy upgrades and function expansion. The system includes mechanical configuration, electronic control, and data processor components with SDK and DLL provided for custom software development.
Full-Width Printing: Unlike the YEDU-1A (36mm print width), the YEDU-1B features a 72mm SEIKO print head for full-width card printing.
YEDU-1B DOD Inkjet Card Printer 36mm 54mm 72mm SEIKO Head Smart Card Personalization 2
