Name: Automatic Hot Sealing Card Packaging Equipment High Speed Card Flow Wrap Machine
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YHP-600
Availability: InStock

Detail Information

Production Speed:	Max 6000 Pcs /hr	Packaging Material:	BOPP Film Or Similar 0.025mm~0.035 Mm Thick
Air Consumption:	50L/min	Card Size:	0.25-0.8mm Thick CR80 Cards
Weight:	600kgs	Power Supply:	AC 380V/50 HZ
Highlight:	Card Packaging Equipment High Speed , Automatic Flow Wrap Machine , Card Flow Wrap Machine

Product Description

High Pressure Technology Card Packing Machine, Card Flow Wrap Machine Adjustable

Product Attributes

Attribute	Value
Production Speed	Max 6000 pcs/hr
Packaging Material	BOPP film or similar 0.025mm~0.035 mm thick
Air Consumption	50L/min
Card size	0.25-0.8mm thick CR80 cards
Weight	600kgs
Power supply	AC 380V/50 HZ

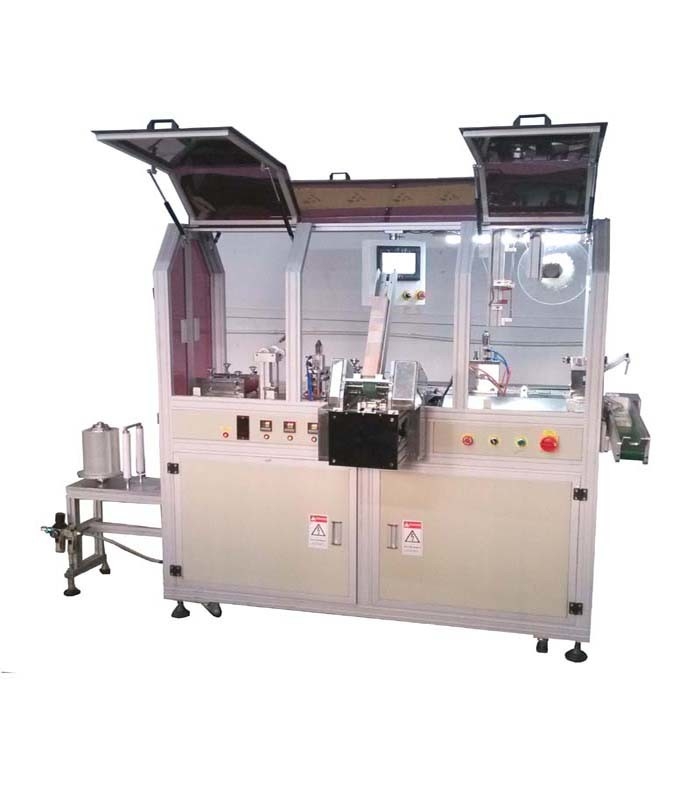

Automatic Hot-sealing Card Packing Machine YHP-600

The Automatic Hot-sealing Card Packing Machine YHP-600 (also known as Card Packaging Machine, Card Wrapping Machine, Card Wrapper or Card Packer YHP-600) is designed for high-volume packaging of standard cards such as telephone charging cards. It utilizes hot-welding and high-pressure packing technology with PLC-controlled automation and a user-friendly interface.

Key Features

Automatic monitoring and alarm system for card overlapping or absence
Capable of wrapping paper or plastic cards with thickness over 0.25mm
Minimum packing film thickness of 0.025mm
Single-card or multiple-card packing functionality
Adjustable packed chain card collection quantity
Double mould welding with easy replacement
Adjustable packing bag size
Optional visual inspection system for card serial number or barcode verification

Technical Specifications

Power Supply	AC 380V/50 HZ	Control Method	PLC programming + Step System
Total Power	2.5KW	Operator	1 person
Air Source	6 kg/cm² (Dry)	Dimension	L2650 × W11000 × H1800mm
Air Consumption	50L/min	Packaging Material	BOPP film or similar 0.025mm~0.035 mm thick
Weight	600Kg	Card size	0.25-0.8mm thick CR80 cards
Speed	Max 6000 pcs/hr	Packaging Size	Folded film 105mm wide or single film roll 210mm wide. Film roll inner diameter 3 inches and external diameter less than 450 mm

Included Spare Parts

Item	Description	Specification	Quantity
1	Card feeding belt	320X45X5mm	1PCS
2-11	Synchronous belts	Various sizes (width 10mm-20mm)	1PCS each
12	Spring		1PCS
13	Feeder rubber roller		2PCS
14	Relay	DC24V	2PCS
15	Relay Holder	DC24V	2PCS
16	Fuse	10A	3PCS
17	Fuse holder		1PCS
18	Thermocouple	3m 1/4"	1PCS
19-21	Heater tubes	Various sizes (200W-300W, 220V)	1PCS each

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YHP-600

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	export standard plywood case
Delivery Time:	25-30days
Payment Terms:	D/A, D/P, T/T, Western Union, Western Union, MoneyGram
Supply Ability:	1 set per 35 days
