Name: CR80 Smart Card Laser Engraving And Data Coding Machine Stable Performance
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YDLE-1
Availability: InStock

Detail Information

Machine Type:	Smart Card Personalization Machine	Card Size:	CR80 Standard Card
Speed:	>3600 Cards/hour	Equipment Air Source:	≤6.5Kg/CM2, 30L/M
Application:	Card Laser Engraving And Data Personalization	Control Mode:	Industrial Control Machine
Highlight:	CR80 Data Coding Machine , Smart Card Data Coding Machine

Product Description

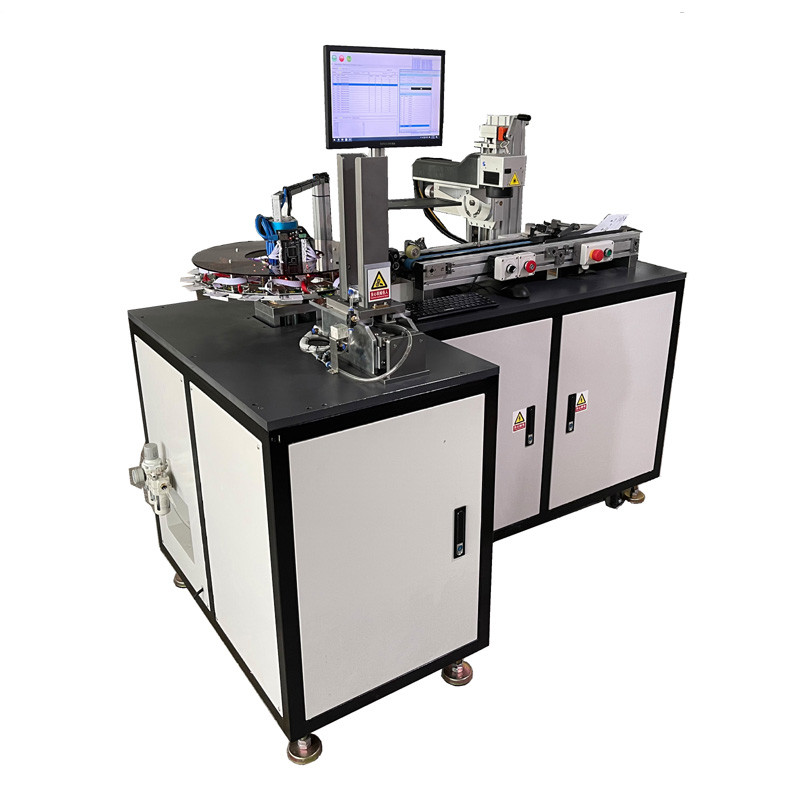

Stable Performance CR80 Smart Card Laser Engraving and Data Coding Machine YDLE-1

Product Specifications

Attribute	Value
Machine type	Smart card personalization machine
Card size	CR80 standard card
Speed	>3600 cards/hour
Equipment air source	≤6.5Kg/CM2, 30L/M
Application	Card Laser Engraving and Data personalization
Control mode	Industrial control machine

Product Overview

The YDLE-1 is a reliable smart card personalization machine designed for high-volume card production. It combines laser engraving capabilities with advanced data encoding functionality for both contact and contactless cards, featuring 16 encoding stations for efficient processing.

Key Features

Card feeding magazine with vacuum absorption to prevent scratches

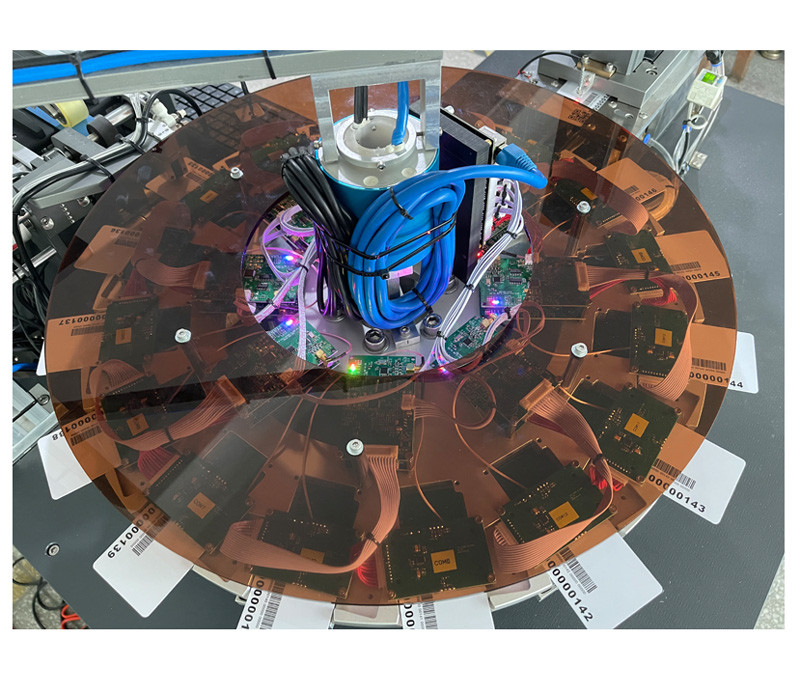

16 encoding stations for high-speed data processing (read, write, encrypt, verify)
Card turn-over and bad card rejection system

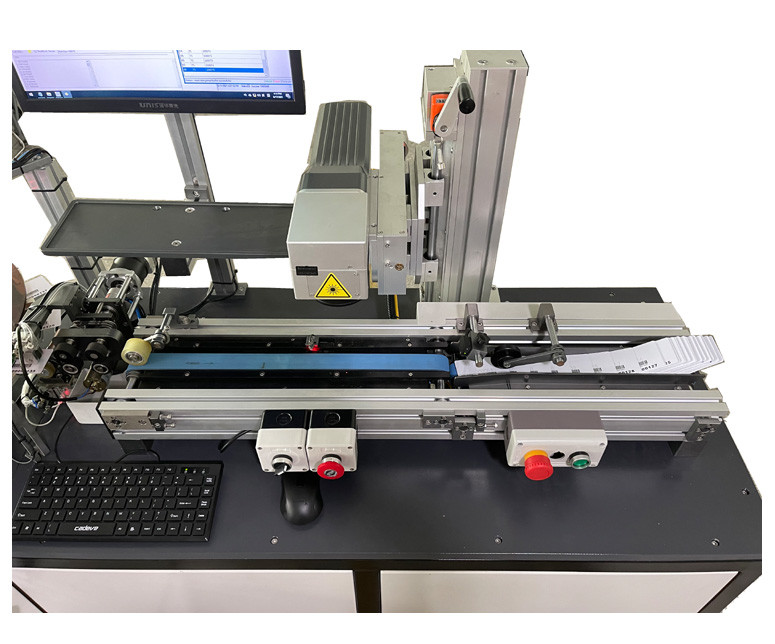

Laser engraving unit with three optional models (carbon dioxide, optical fiber, ultraviolet)
Good card collection unit for organized output

Technical Parameters

Dimensions: L1800 × W1000 × H1700mm

Weight: Approximately 300kg

Power supply: AC220, 50/60 Hz

Speed: >3600 cards/hour

Air source: ≤6.5Kg/CM2, 30L/M

Advanced Functionality

Card rejecting feature for quality control
Double card detection for enhanced security
Optional OCR inspection and magnetic stripe encoding modules
Flexible configuration to meet specific customer requirements

Key Advantages

Proven experience in smart card manufacturing equipment
Independent R&D for flexible, cost-effective solutions
Comprehensive after-sales support
PC & servo control for stable performance
Supports 16 contact/contactless processing stations
Optional OCR inspection capabilities

Experience efficiency and precision with our advanced card personalization system, designed to meet the demands of high-volume smart card production.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YDLE-1

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export standard plywood case
Delivery Time:	30-35days
Payment Terms:	D/P, Western Union, T/T, D/A
Supply Ability:	1 set per 35 days
