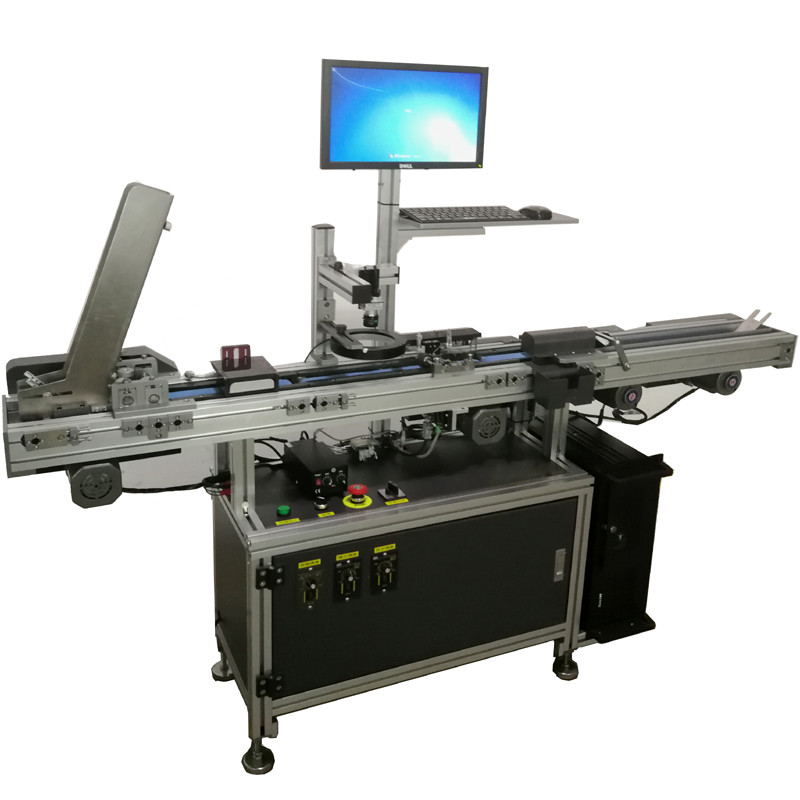

Industrial Magnetic Card Encoder 2.5kw Smart Card Data Verification Machine

The Smart Card Data Verification Machine YDV-7000 is designed for comprehensive data comparison and verification of RFID card chip data, card surface data, and magnetic stripe data on smart cards. It features three key functional units for complete data validation.

• Frequency: 125KHZ & 13.56MHz, 915MHz (optional)
• Communication protocol: ISO 15693, 14443A/B, ISO18000B/C
• Data reading and detection for both low-frequency and high-frequency chip cards
• Optional ultra-high-frequency card data verification
• Database comparison for data validation
• Production log saving function
• Data retention during power failure

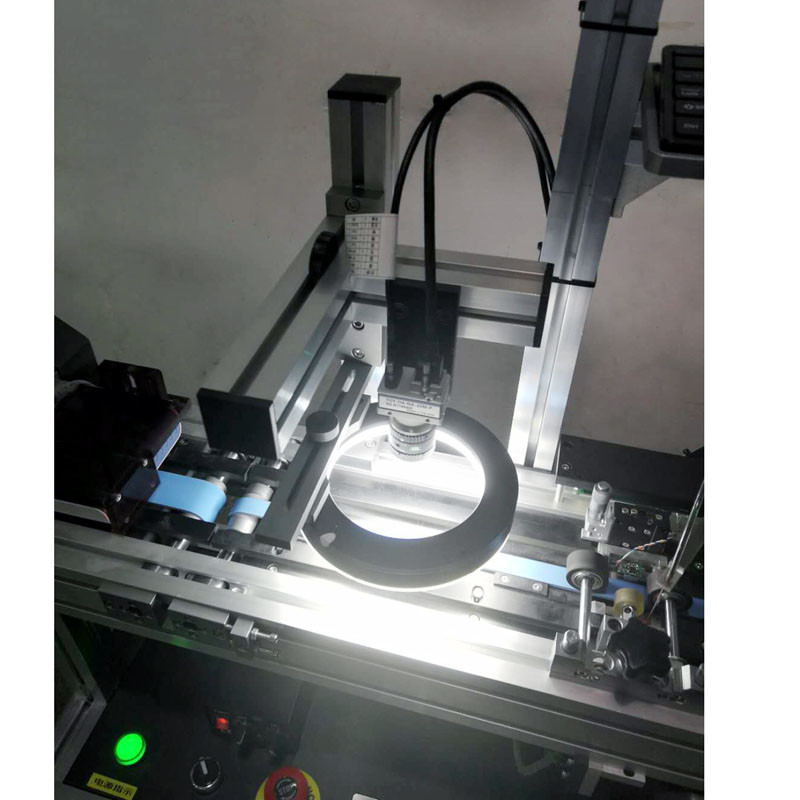

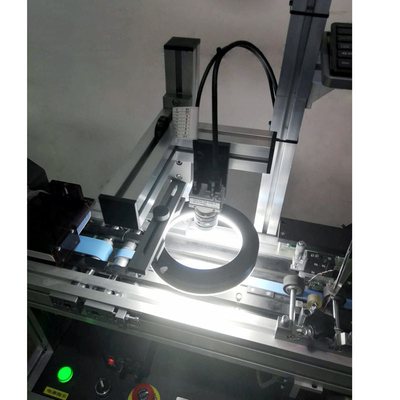

• Card surface data recognition through OCR photography
• Database comparison for surface data validation
• Analysis for duplicate data numbers and data incompleteness
• Recognition capability: 1D barcode, 2D QR code, Arabic numbers, English characters

• Magnetic reactance degree: 300 OE - 2750 OE
• Reading magnetic density: 210 DPI, 75DPI/210 DPI, compatible 210 DPI
• Magnetic stripe tracks: Track 1/2/3, HiCo/Loco, standard width 12.7mm
• Dual-side reading capability (upper and lower sides)
• Database comparison for magnetic stripe data validation

• Machine size: L1800*W600*H1600mm
• Power supply: AC220, 50/60 Hz
• Control mode: Industrial control machine + PLC
• General power: 2.5KW
• Speed: 6000-7000 cards/hour

Also known as Card Data Checking Machine, Card Data Proofreading Machine, Smart Data Tester, or Smart Card Quality Control Machine YDV-7000.
