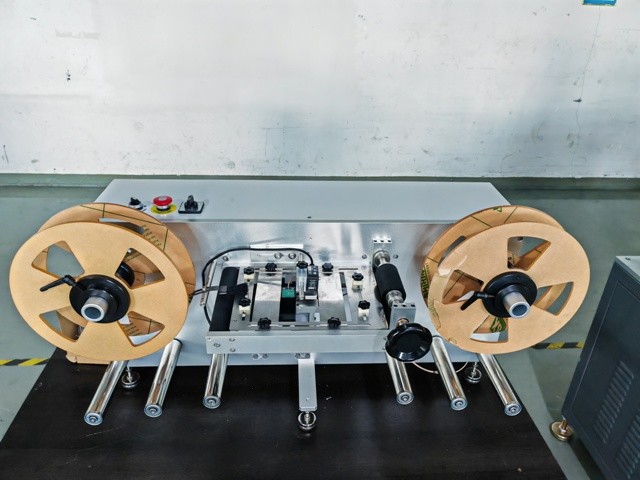

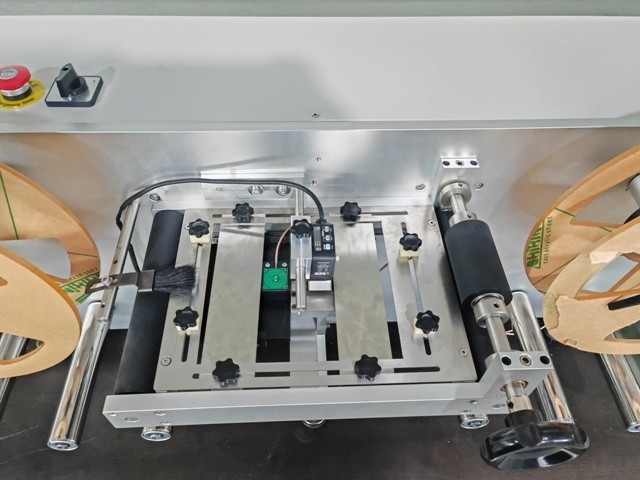

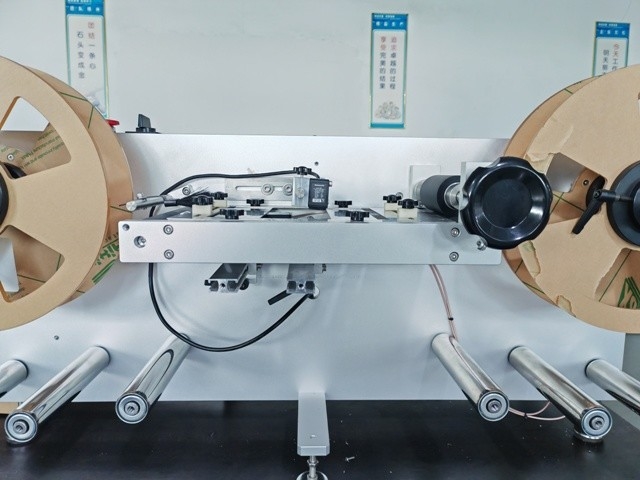

Desktop RFID NFC Tag Data Writer and Printer YRFT-DOD-1

The YRFT-DOD-1 is a comprehensive solution for RFID/NFC tag personalization, combining drop-on-demand inkjet printing with advanced data encoding capabilities. This all-in-one system handles barcode printing, UID reading, data writing, chip encryption, and electrical verification in a single pass, compatible with HF, UHF, and NFC tags.

• High-speed Japanese Ricoh G5 54mm UV printing system with 600 DPI (vertical) and 1200 DPI (horizontal) resolution
• Adjustable printing speed up to 80 meters/minute with maximum printing width of 45mm
• Precision plasma treatment unit and LED UV drier for optimal print quality
• Advanced tape tension control adaptable for various tag sizes (20-260mm width)
• Standard high-frequency HF reader with optional UHF reader available
• Custom-developed operating software compatible with multiple chip manufacturers
• Comprehensive data encryption and tracking functions with logging capabilities

• Dimensions: 1500mm (L) × 1000mm (W) × 1600mm (H)
• Gross weight: 360kg
• Power requirements: AC220V 50/60Hz 1.5Kw
• Compressed air: Dry/clean ≤6.5 Kg/CM²
• Production capacity: Approximately 7000 pieces per hour

The YRFT-DOD-1 system is ideal for RFID/NFC tag personalization across various industries, offering simultaneous printing and encoding capabilities. It serves as an efficient solution for barcode printing, data encoding, chip verification, and anti-counterfeiting applications.
