Detail Information

Dimensions::	L1100mmW620mmH520mm	Weight:	About 48kgs
Power Supply:	AC220V 50/60 Hz 1.5Kw	Control Mode:	Mitsubishi PLC+ Computer (Note: The Computer Is Not Included In This Device Offer, And Normally The User Can User Their Own Computer To Connect And Work This Device.)
RFID Tag Width:	20-260mm.	Work Speed:	Read And Write Speed Varies From 3000 To 8000 CPH According To The Data Content.
Staff:	1 Person	Machine Type:	Desk Type
Highlight:	Desktop Smart Card Personalization Machine , Smart Card Personalization Machine 3000 CPH , NFC Card Machine 8000 CPH

Product Description

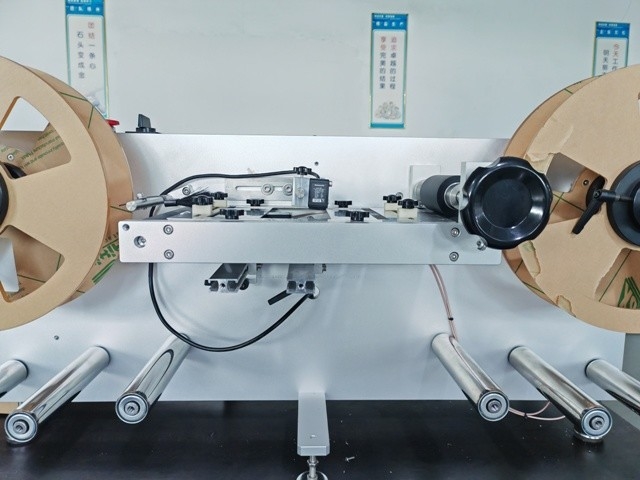

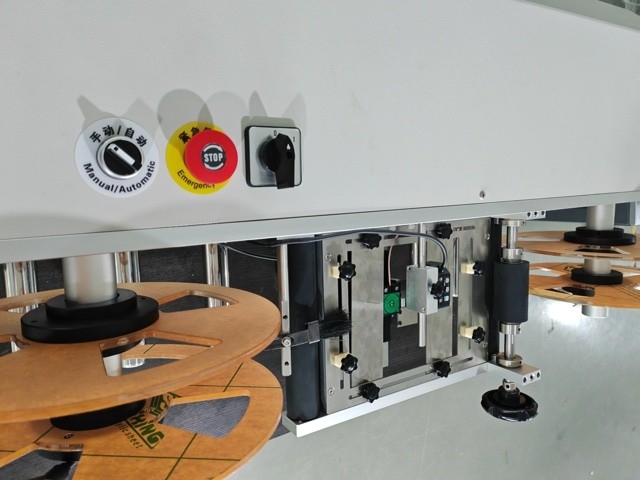

Desktop RFID/NFC Tag Data Personalization Device YRFT-DP-1

High-performance desktop device for RFID/NFC tag data personalization with read/write speeds ranging from 3000 to 8000 CPH.

Key Specifications

Attribute	Value
Dimensions	L1100mm × W620mm × H520mm
Weight	Approximately 48kg
Power Supply	AC220V 50/60 Hz 1.5Kw
Control Mode	Mitsubishi PLC + computer (Computer not included)
RFID Tag Width	20-260mm
Work Speed	3000-8000 CPH (depending on data content)
Staff Requirement	1 person
Machine Type	Desk type

Product Overview

The YRFT-DP-1 is a professional desktop solution for electrical performance detection, block data writing, and encryption of various RFID tags including HF, UHF, and NFC tags. This device significantly enhances NFC tag personalization efficiency.

Technical Parameters

Dimensions: L1100mm × W620mm × H520mm, Gross Weight: 48kg
Power supply: AC220V 50/60 Hz 1.5Kw
Control mode: Mitsubishi PLC + computer (Computer not included)
RFID Tag width: 20-260mm
Work speed: 3000-8000 CPH (depending on data content)
Staff requirement: 1 person

Key Features

Advanced tape tension control with adjustable settings for various label sizes
Standard high-frequency HF reader with optional UHF reader available
User-friendly independently developed operating software compatible with multiple chip manufacturers
Comprehensive data writing and encryption capabilities with logging and tracking functions

Applications

The YRFT-DP-1 serves multiple functions including:

RFID/NFC Tag Data Encoder
Desktop RFID/NFC Tag Chip Data Writer
RFID/NFC Tag Chip IC Proofreader
Roll-to-Roll Data Writer for RFID/NFC Labels

Tag:

Place of Origin:	China
Brand Name:	YLEE

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	1 plywood case
Delivery Time:	20-25days
Payment Terms:	T/T, Western Union, D/P, D/A, Western Union
Supply Ability:	1 set per 25 days
