Name: CMYK+White+Black DOD Card Printing Machine 8000 Cards/H
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YEDU-2C
Availability: InStock

Detail Information

DOD Printing Only:	8000-10000 Cards/h In Case Of DOD Print Mode)	Print Head And Max. Printing Width:	Japanese RICOH / Multicolor+white+black
Speed For Best Printing Quality:	20 Meters/min	LED UV Wave Length And Power:	395NM, 400W
Compressed Air:	6KG/CM2, 20L/min	Printing Color:	Black, White, Colorful Such As Red, Blue Etc
Highlight:	dod printing card personalization machine , multicolor dod card personalization machinery

Product Description

Multicolor CMYK White Black DOD Printing Personalization Machine Scratch Card Labeling Card Issuer

Key Specifications

DOD printing only	8000-10000 cards/h in case of DOD print mode
Print head and Max. printing width	Japanese RICOH / Multicolor+white+black
Speed for Best printing quality	20 meters/min
LED UV Wave length and Power	395NM, 400W
Compressed air	6KG/CM2, 20L/min
Printing color	Black, white, colorful such as red, blue etc

Product Overview

The Multicolor Card DOD Personalization Machine YEDU-2C is designed for high-speed personalization of various cards through DOD drop-on-demand surface printing (CMYK+White+Black), RFID chip encoding, magnetic stripe encoding, and scratch card labeling. This flexible production line allows for integration of different functional modules based on user requirements.

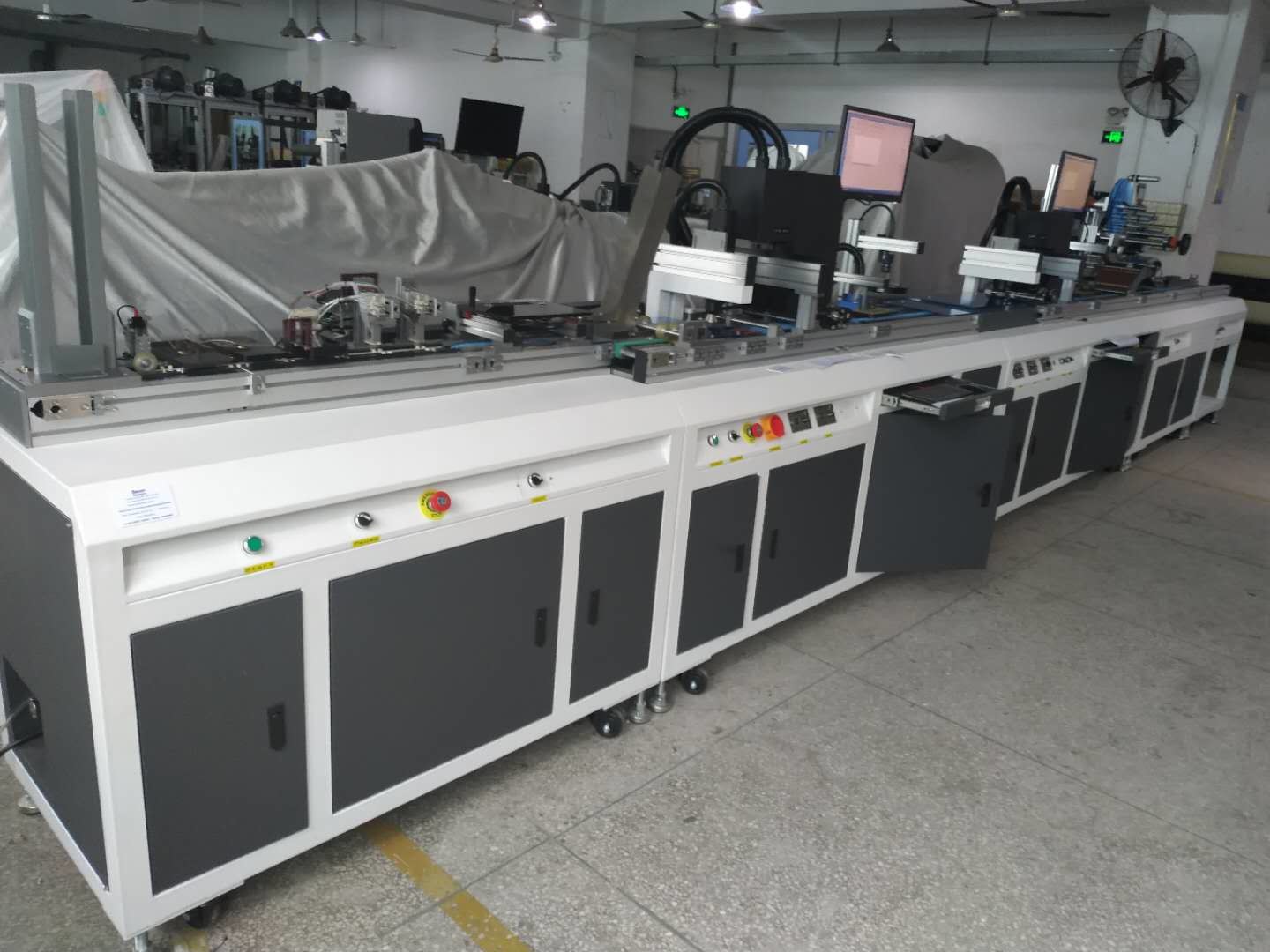

Machine Configuration

The complete production line includes:

Card feeder (CR80 size)
Chinese magnetic card encoder
Card turn-over unit
RFID card encoder (HF&LF)

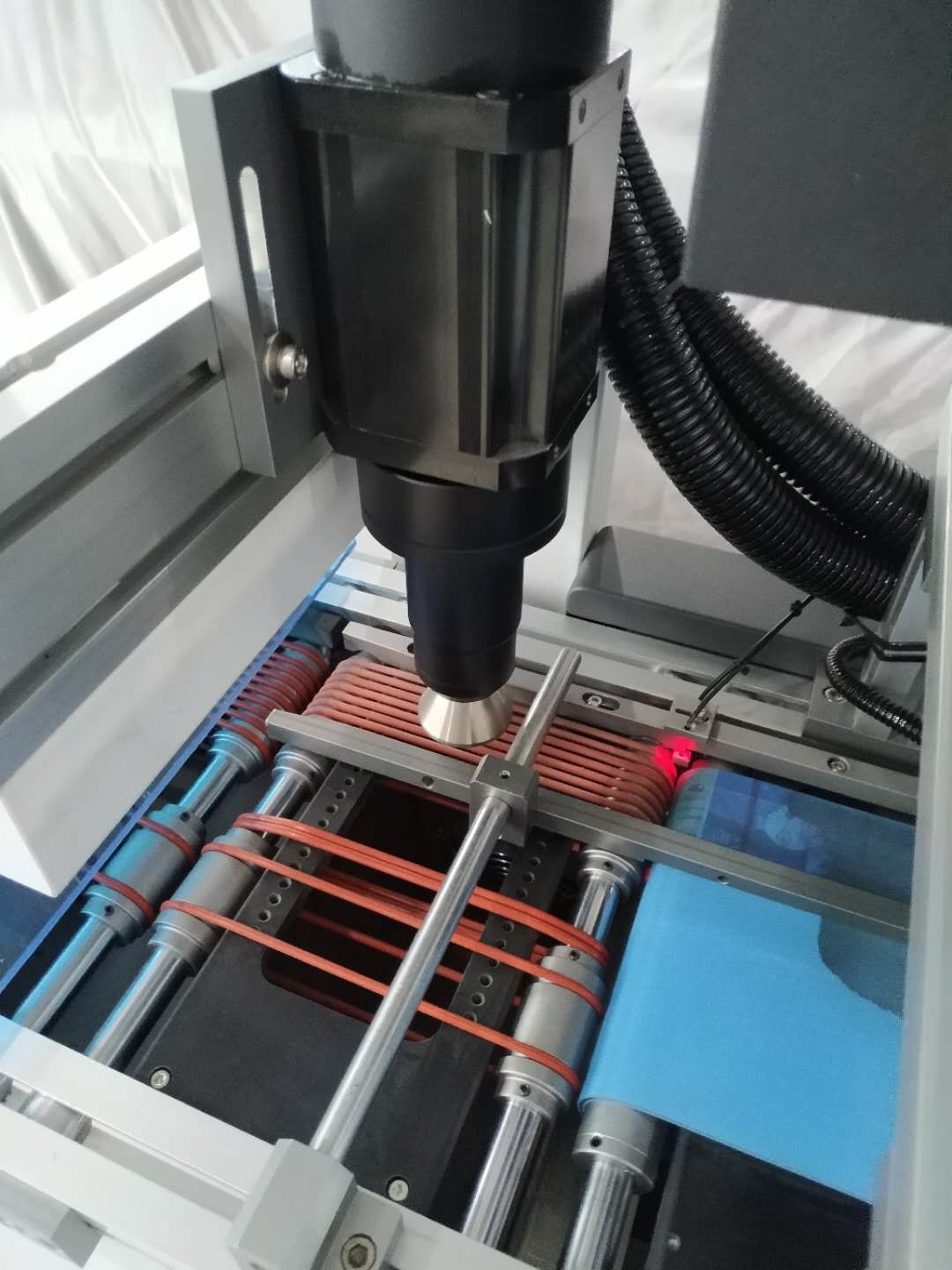

Plasma treatment unit
DOD multicolor printing unit (54mm RICOH/CMYK+white+black ink)
LED UV Solidification unit
OCR inspection unit (optional)
Scratch labeling unit (optional)
Card Collection unit

Key Functional Modules

RFID card encoder: Reads UID from various RFID chips (S50, S70, Ultralight, Ntag series, etc.) with speeds of 2000-7000 cards/h depending on operation
Magnetic card encoder: Encodes three tracks on standard magnetic cards (non-financial) at ~8000 cards/h

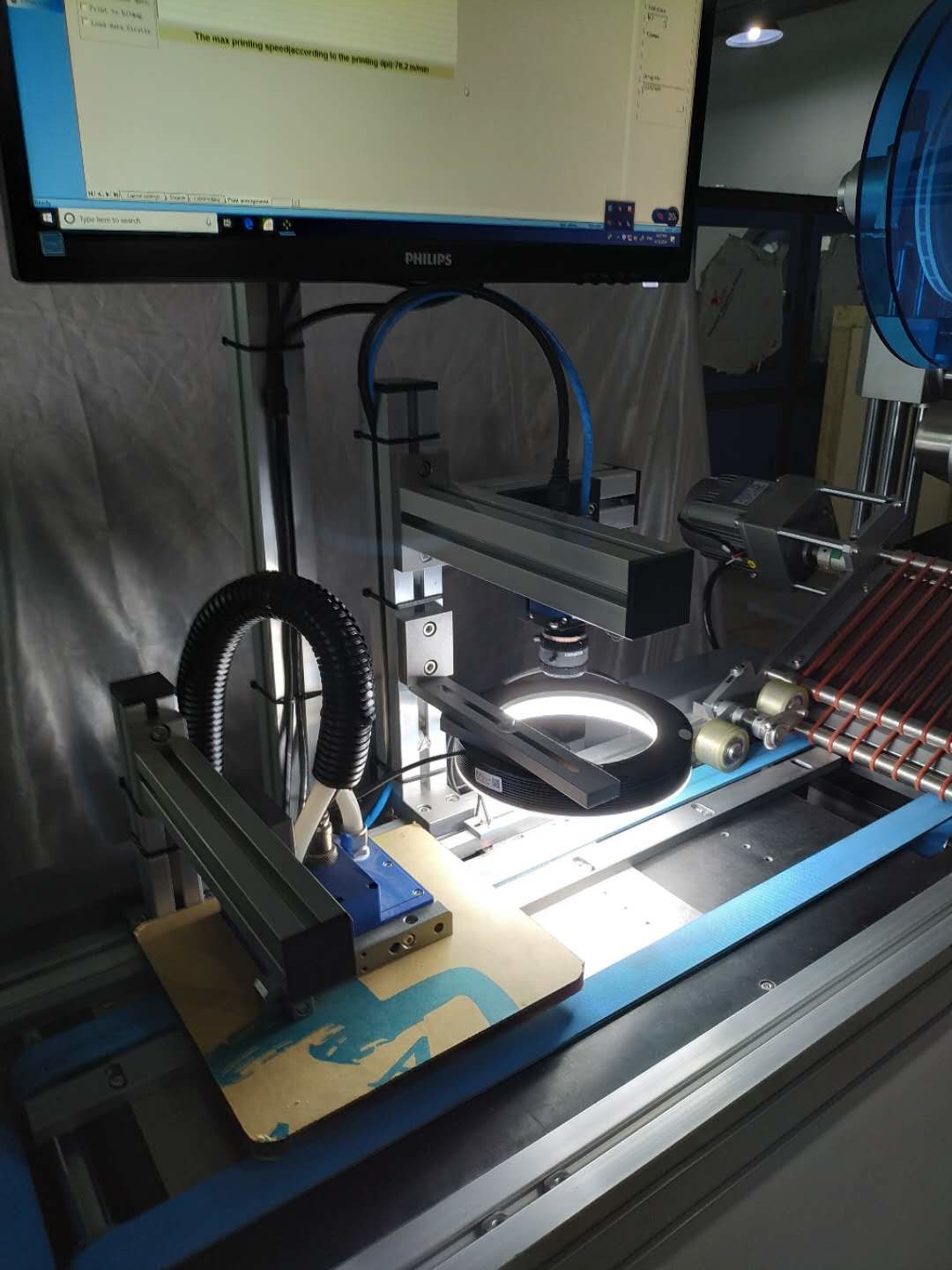

OCR inspection unit: Verifies printed content against database at over 8000 cards/h
Scratch labeling unit: Applies multiple scratch-off labels simultaneously at over 8000 cards/h

Technical Parameters

Print head	Japanese RICOH (Multicolor+white+black)
Printing resolution	360-720 DPI adjustable
Max. Printing speed	25 meters/min
Speed for Best quality	20 meters/min
LED UV specifications	395NM, 400W
Control system	Industrial computer + motion control
Power supply	AC220V, 50/60HZ, 12KW
Machine dimensions	L(4600-11000mm) × W650mm × H1600mm
Net weight	900-1700kg (configuration dependent)

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YEDU-2C

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	1-2 plywood case
Delivery Time:	50 working days
Payment Terms:	T/T,Western Union,D/P,D/A
Supply Ability:	1 set per 45 days
