Name: 360 - 720 DPI Smart Card Personalization Machine With DOD Printing And RFID Encoding
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YEDU-2B
Availability: InStock

Detail Information

Card Feeding Magazine:	Each With The Capacity Of 200 ISO Card	Double Card Detection:	To Detect Double Card
Functions:	Magnetic Stripe Encoding, Double Side DOD Printing Etc	Printing Resolution:	360-720 DPI Adjustable
Max. Printing Speed:	25 Meters/min	Compressed Air: 6KG/CM2,10L/min.:	6KG/CM2,10L/min.
Highlight:	DOD Printing Smart Card Machine , 720 DPI Smart Card Personalization Machine , 360 DPI Smart Card Personalization Machine

Product Description

Black White Printing Smart Card Personalization Machine for OCR Labelling Financial Card

Key Specifications

Attribute	Value
Card feeding magazine	Each with the capacity of 200 ISO card
Double card detection	To detect double card
Functions	Magnetic stripe encoding, double side DOD printing etc
Printing resolution	360-720 DPI adjustable
Max. Printing speed	25 meters/min
Compressed air	6KG/CM2,10L/min.

Product Overview

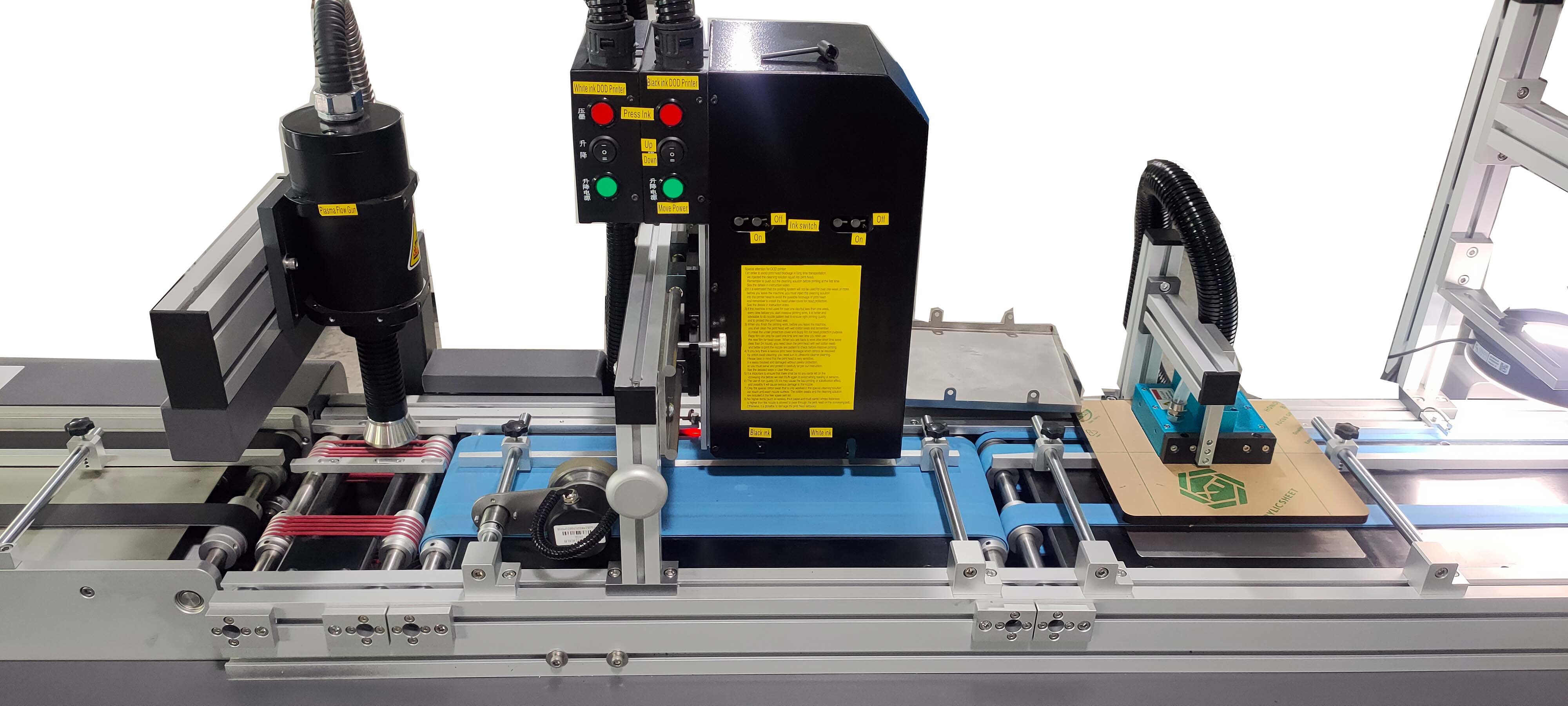

The YEDU-2B Card DOD Personalization Machine is designed to personalize various smart cards through high-quality DOD (drop-on-demand) inkjet printing, RFID chip encoding, magnetic stripe encoding, scratch card labeling, and laser engraving (all optional).

Functional Configuration

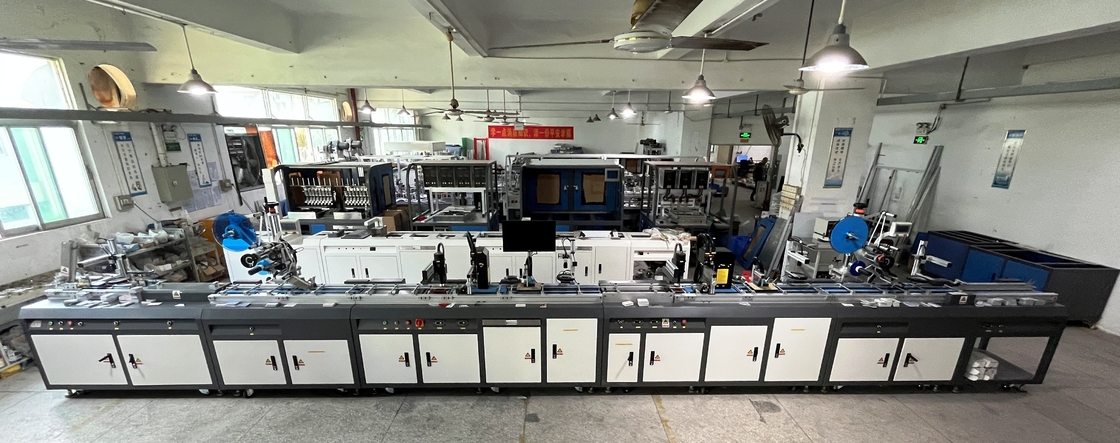

The machine features a modular design with these standard components:

Card feeder (CR80 size)
RFID card encoder (HF/LF)
Plasma treatment unit
DOD black ink printing unit (72mm wide by SEIKO)
LED UV solidification unit
Card turn-over unit
DOD white ink printing unit (72mm wide by SEIKO)
Bad card rejection unit
Good card collection unit

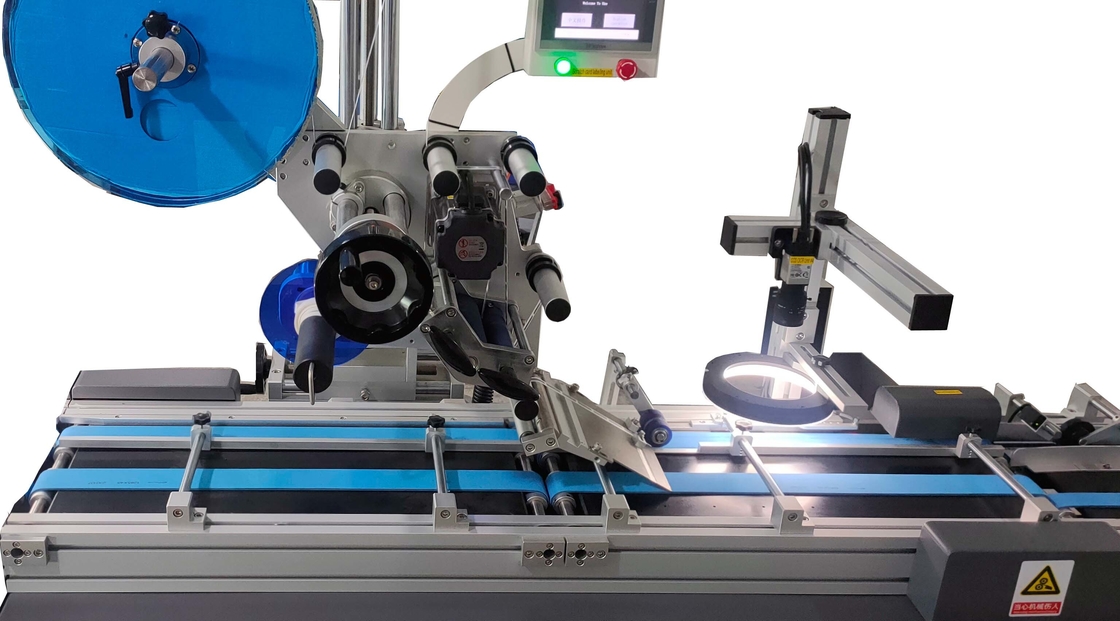

Note: The line can be customized with optional modules including magnetic stripe encoder, OCR inspection unit, scratch labeling unit, and laser engraving unit.

Technical Parameters

Print head: SEIKO 72mm black/white ink

Printing resolution: 360-720 DPI adjustable

Max. Printing speed: 25 meters/min

Optimal printing speed: 20 meters/min

Compressed air: 6KG/CM2,10L/min

Power supply: AC220V, 50/60HZ, 6KW

LED UV: 395NM, 400W

Control system: Industrial computer + motion control

Net Weight: 1000-1500kg (configuration dependent)

Dimensions: L(5000-7500mm)×W650mm×H1680mm

Additional Information

The YEDU-2B model features a 72mm wide SEIKO print head for full-width card printing. For partial-width printing (36mm), consider the YEDU-1A model.

Throughput: 6,000 cards/hour (configuration dependent)

Card size: 85.6×54× (0.5-0.8) mm

Operating temperature: 0 - 40ºC

Humidity range: 15-90% RH

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YEDU-2B

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	1-2 plywood case
Delivery Time:	50 working days
Payment Terms:	T/T, Western Union, D/P, D/A
Supply Ability:	1 set per 45 days
