Two Sided Smart Card Personalization Machine With Magnetic Stripe Encoding

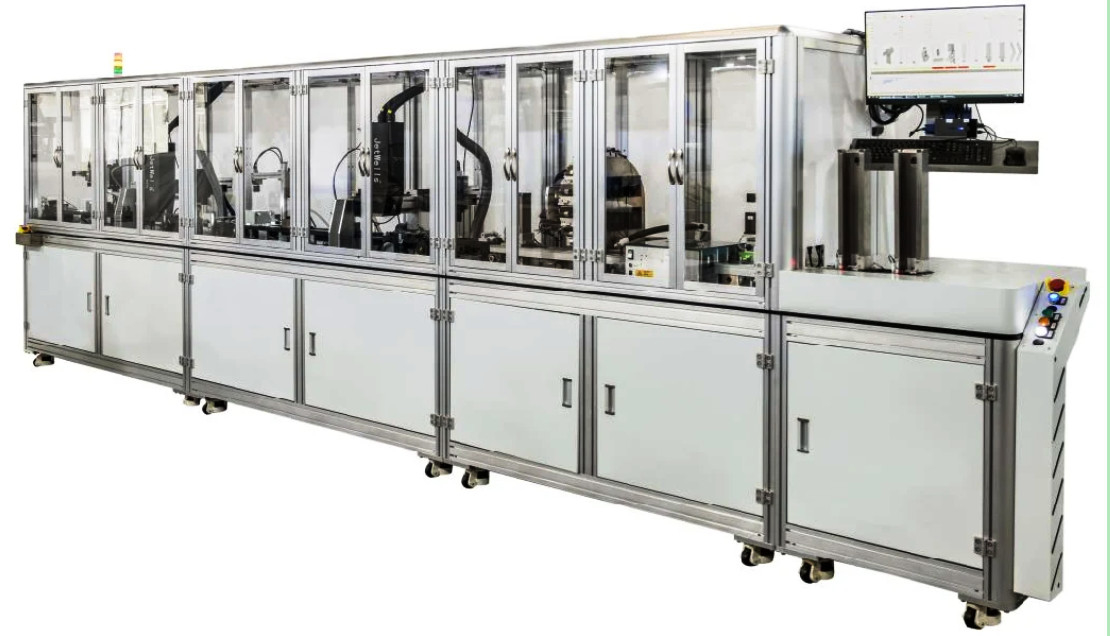

The YEDU-1A Card DOD Personalization Machine is designed for high-quality personalization of various smart cards including loyalty cards, magnetic cards, RFID cards, and dual-interface cards. It features drop-on-demand (DOD) inkjet printing with optional RFID chip encoding, magnetic stripe encoding, scratch card labeling, and laser engraving capabilities.

The YEDU series includes four models: YEDU-1A, YEDU-1B, YEDU-2A, and YEDU-2B. The "1" designation indicates one-side printing, while "2" indicates two-sided printing in one pass. "A" models feature a 36mm wide printer, and "B" models feature a 72mm wider printer for full-width card printing.

• Card feeder (CR80 size)
• RFID card encoder (HF/LF)
• Plasma treatment unit
• DOD Black/White printing unit (36mm wide Konica)
• LED UV solidification unit
• Bad card rejection unit
• Good card collection unit

Reads UID from most RFID card chips (HF/LF) in the market. Capable of writing data, changing initial passwords, or sector keys in various RFID chips including Mifare S50, S70, Ultralight, and others. Speed: 7000 cards/h in reading mode or 2000-4000 cards/h in writing mode.

Encodes three tracks or any single/two tracks in magnetic stripe cards (excluding financial bank cards). Speed: 7000-8000 cards/hour. For financial bank cards, a German magnetic card encoder can be added.

Identifies and reads numbers, barcodes, and QR codes printed on card surfaces to verify printing accuracy against databases. Speed: 7000-8000 cards/hour.

Applies scratch-off labels onto card surfaces after printing. Can apply multiple labels simultaneously. Speed: 7000-8000 cards/hour.

Available in CO2, optical fiber, or ultraviolet types. Precisely engraves serial numbers, letters, logos, QR codes, and images.

• Speed: 8000-10000 cards/h (print-only mode)
• Print head: Konica 36mm black/white ink
• Printing resolution: 360-720 DPI adjustable
• Max. printing speed: 25 meters/min
• Best quality speed: 20 meters/min
• Compressed air: 6KG/CM2, 10L/min
• Power supply: AC220V, 50/60HZ, 6KW
• LED UV: 395NM, 400W
• Control: Industrial computer + motion control system
• Net weight: 500-950kg (configuration dependent)
• Dimensions: L(3000-5600mm) × W650mm × H1680mm

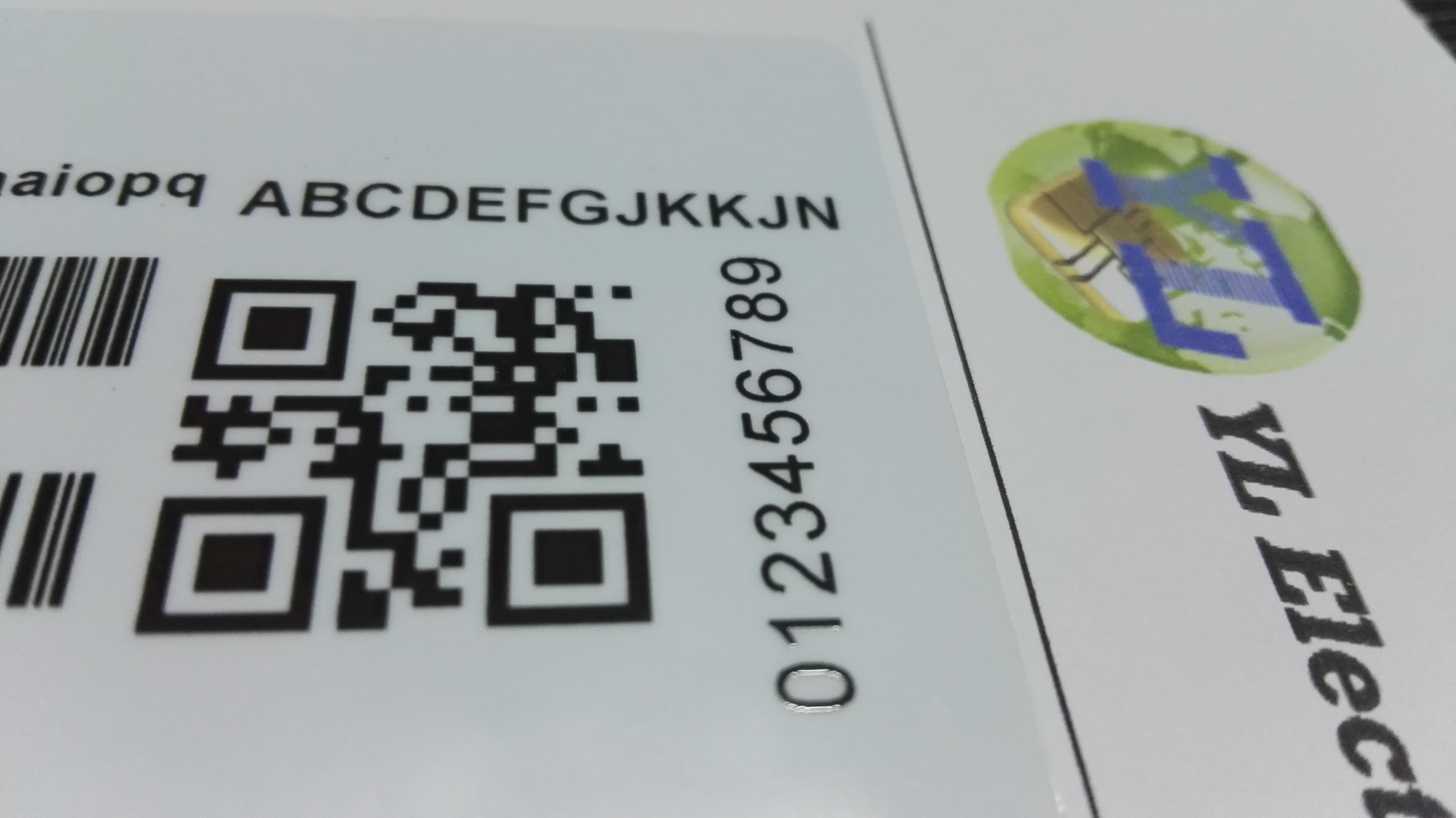

The YEDU-1A uses a 36mm wide print head for partial-width printing (up to 36mm) of barcodes, numbers, QR codes, and photos on card surfaces. For full-width card printing, consider the YEDU-1B or YEDU-2B models with 72mm wide SEIKO print heads.

Key differences between YEDU-1A and YEDU-1B:

• YEDU-1A: Konica 36mm print head (max 36mm print width)
• YEDU-1B: SEIKO 72mm print head (full-width printing)

Both models perform one-side printing. For two-side printing in one pass, consider the YEDU-2A or YEDU-2B models.
