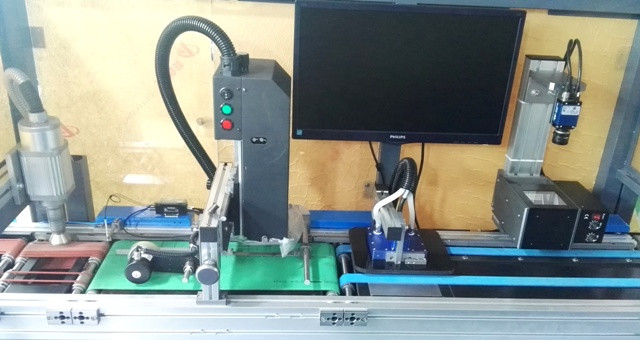

SEIKO 72mm DOD Inkjet Card Printer YEDU-2B For RFID And Magnetic Encoding

The Card DOD Personalization Machine YEDU-2B is a comprehensive solution for smart card personalization, offering high-quality drop-on-demand inkjet printing, RFID encoding, and optional additional functionalities in a single, efficient system.

• Dual-side printing capability in a single pass
• Full-width printing coverage using SEIKO 72mm wide print head
• Modular design allows for optional functional additions
• High-speed operation with precision results
• Supports various smart card personalization needs

The YEDU series includes four models with different capabilities:

• YEDU-1A: 36mm print width, single-side printing
• YEDU-1B: 72mm print width (full card), single-side printing
• YEDU-2A: 36mm print width, dual-side printing
• YEDU-2B: 72mm print width (full card), dual-side printing

The YEDU-2B includes these standard modules in sequence:

• Card feeder (CR80 size)
• RFID card encoder (HF/LF)
• Plasma treatment unit
• DOD black ink printing unit (72mm SEIKO)
• LED UV solidification unit
• Card turn-over unit
• Plasma treatment unit
• DOD white ink printing unit (72mm SEIKO)
• LED UV solidification unit
• Bad card rejection unit
• Good card collection unit

1. RFID Chip Encoding Unit: Supports various RFID chips with reading speeds up to 7000 cards/hour.
2. Magnetic Stripe Encoder: Encodes three tracks on magnetic cards (7000-8000 cards/hour).
3. OCR Inspection Unit: Verifies printed data against database (7000-8000 cards/hour).
4. Scratch Labeling Unit: Applies multiple scratch-off labels simultaneously.
5. Laser Engraving Unit: Available in CO2, optical fiber, or ultraviolet types for precise marking.

• Professional consultation on machine selection and setup
• Factory visits and feasibility analysis
• Detailed product information and process explanation

• On-site installation and setup assistance
• Comprehensive operator training
• Lifetime technical support
• Regular follow-up and feedback collection

We provide a comprehensive one-year warranty with efficient service response. For complex issues, we offer on-site support within the warranty period.
