Name: High Speed DOD Card Personalization Machine YEDU-1B 10000 Cards/H
Brand: YL Electrical Equipment (Tianjin) Co., Ltd.
SKU: YEDU-1B
Availability: InStock

Detail Information

Speed:	8000-10000 Cards/h (print-only Mode)	Print Head And Max. Printing Width:	SEIKO 72mm Black Ink (or White Ink)
Printing Resolution:	360-720 DPI Adjustable	Max. Printing Speed:	25 Meters/min.
Speed For Best Printing Quality:	20 Meters/min.	Compressed Air:	6KG/CM2,10L/min.
Highlight:	contactless card data personalization machine , contact card dod personalization machine , high speed card perso machine

Product Description

High Speed DOD Card Data Personalization Machine for Contact/Contactless Card

Product Attributes

Attribute	Value
Speed	8000-10000 cards/h (print-only mode)
Print head and Max. printing width	SEIKO 72mm black ink (or white ink)
Printing resolution	360-720 DPI adjustable
Max. Printing speed	25 meters/min.
Speed for Best printing quality	20 meters/min.
Compressed air	6KG/CM2,10L/min.

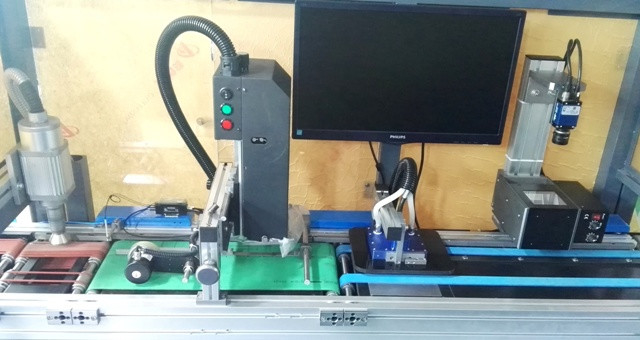

Card DOD Personalization Machine YEDU-1B

Card feeder #1(CR80 size)-RFID card encoder(HF/LF)-Plasma treatment unit- DOD Black (White) printing unit (72mm wide by SEIKO)-LED UV solidification unit-Bad card rejection unit - Good card collection unit

Introduction

The Card DOD Personalization Machine YEDU-1B is designed to personalize various smart cards (including loyalty cards, magnetic cards, RFID cards and dual-interface cards) through high-quality DOD (drop-on-demand) inkjet printing, with optional RFID chip encoding, magnetic stripe encoding, scratch card labeling, and laser engraving capabilities.

Key Features

Four available models in the YEDU series: YEDU-1A, YEDU-1B, YEDU-2A, and YEDU-2B
YEDU-1B features a 72mm wide SEIKO print head for full-width card printing
Capable of printing barcodes, numbers, QR codes, and photos on card surfaces
Modular design allows for optional functional module additions

Functional Module Configuration

The machine features modular design with these standard and optional components:

RFID Chip Encoding Unit: Reads and writes data to various RFID chips (HF/LF) at speeds up to 7000 cards/hour
Magnetic Stripe Encoder: Encodes up to three tracks on magnetic cards at 7000-8000 cards/hour
OCR Inspection Unit: Verifies printed numbers, barcodes, and QR codes against database records
Scratch Labeling Unit: Applies multiple scratch-off labels simultaneously
Laser Engraving Unit: Available in CO2, optical fiber, or ultraviolet types for precise marking

Technical Specifications

Speed	8000-10000 cards/h (print-only mode)
Print head and Max. printing width	SEIKO 72mm black ink (or white ink)
Printing resolution	360-720 DPI adjustable
Power supply	AC220V, 50/60HZ, 6KW
LED UV Wave length and Power	395NM, 400W
Control mode	Industrial computer + motion control system
Net Weight	500-950kg (configuration dependent)
Machine size	L(3000-5600mm)×W650mm×H1680mm

Our Service Commitment

Pre-sale: Professional consultation, model selection assistance, and factory visits
Sale: Quality supervision, product acceptance, and timely shipping
After-sale: Installation support, operator training, and lifetime technical support

Warranty

We provide a one-year guarantee for our card machines, including efficient remote support and on-site service when needed to resolve complex technical issues.

Tag:

Place of Origin:	China
Brand Name:	YL
Model Number:	YEDU-1B

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export standard plywood case
Delivery Time:	30-35days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 set a month
