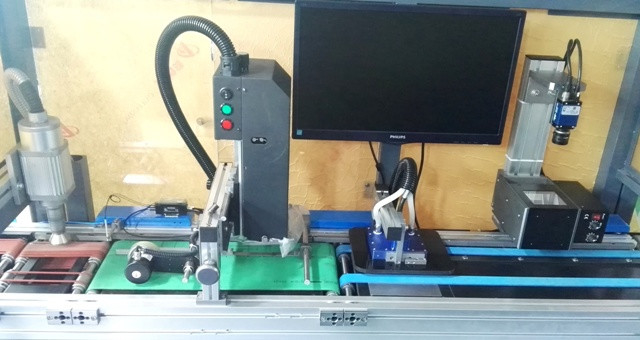

YEDU-1A Card DOD Personalization Machine with Konica 36mm Print Head

The Card DOD Personalization Machine YEDU-1A is designed for high-quality personalization of various smart cards including loyalty cards, magnetic cards, RFID cards, and dual-interface cards. The system features DOD inkjet printing with optional RFID encoding, magnetic stripe encoding, scratch card labeling, and laser engraving capabilities.

• Card feeder (CR80 size)
• RFID card encoder (HF/LF)
• Plasma treatment unit
• DOD Black/White printing unit (36mm wide Konica)
• LED UV solidification unit
• Bad card rejection unit
• Good card collection unit

• YEDU-1A: 36mm print width (partial card printing)
• YEDU-1B: 72mm print width (full card printing)
• YEDU-2A: Dual-side printing with 36mm width
• YEDU-2B: Dual-side printing with 72mm width

• RFID Chip Encoding: Supports HF/LF chips including Mifare, Ultralight, Ntag, Icode, and EM series
• Magnetic Stripe Encoder: Supports 3-track encoding (7000-8000 cards/hour)
• OCR Inspection: Verifies printed data against database (7000-8000 cards/hour)
• Scratch Labeling: Applies multiple scratch-off labels simultaneously
• Laser Engraving: Available in CO2, optical fiber, or UV types

1-year guarantee with efficient service response. On-site support available for complex issues.
