products
Home > Products> Smart Card Personalization Machine> 2.5KW Industrial Smart Card Verification Machine YDPV-2 6000 - 7000 Cards/Hour

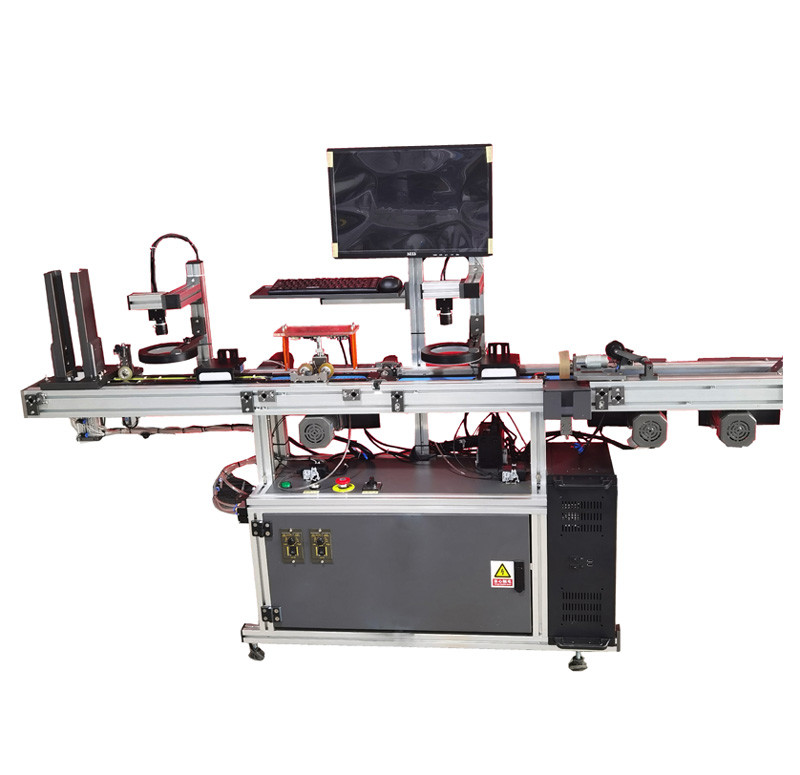

2.5KW Industrial Smart Card Verification Machine YDPV-2 6000 - 7000 Cards/Hour

2.5KW Industrial Smart Card Verification Machine YDPV-2 6000 - 7000 Cards/Hour
2.5KW Industrial Smart Card Verification Machine YDPV-2 6000 - 7000 Cards/Hour
Basic Information
Place of Origin: China
Brand Name: YL
Model Number: YDPV-2
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1-2 plywood case or as per machine construction
Delivery Time: 25 working days
Payment Terms: T/T, Western Union, D/P, D/A
Supply Ability: 2 sets per month
Get Best Price
Chat Now
Detail Information
Machine Size: L1800*W600*H1600mm Power Supply: AC220, 50/60 Hz
General Power: 2.5KW Control Mode: Industrial Control Machine +PLC
Speed: 6000-7000 Cards/hour Card Frequency: 125KHz&13.56MHz, 915MHz(optional)
Highlight:

Industrial Smart Card Verification Machine

,

2.5KW Smart Card Verification Machine

Product Description

Smart Card Personalization Machine And Verification Machine YDPV-2 6000-7000 cards/hour
Attribute Value
Machine size L1800*W600*H1600mm
Power supply AC220, 50/60 Hz
General power 2.5KW
Control mode industrial control machine +PLC
Speed 6000-7000 cards/hour
Card Frequency 125KHz&13.56MHz, 915MHz(optional)
Quality Control for Smart Card Data Personalization and Verification Machine YDPV-2
Introduction
The Smart Card Data Verification Machine YDV-7000 is designed for data comparison and verification of RFID card chip data, card surface data, and magnetic stripe data. It features three functional units: RFID card chip data verification, OCR surface data verification, and magnetic stripe data verification.
Machine Components
1. RFID Card Chip Data Verification Unit
  • Frequency: 125KHz&13.56MHz, 915MHz (optional)
  • Communication protocol: ISO 15693, 14443A/B, ISO18000B/C
  • Reads and detects data for both low-frequency and high-frequency chip cards
  • Optional ultra-high-frequency card data verification
  • Compares read data with database files to identify errors
  • Includes production log saving function
  • Features data saving in case of power failure
2.5KW Industrial Smart Card Verification Machine YDPV-2 6000 - 7000 Cards/Hour 0
2. OCR Surface Data Verification Unit
  • Recognizes card surface data through OCR photography
  • Compares identified surface data with database files to identify errors
  • Analyzes duplicate data numbers and data incompleteness
  • Recognizes: 1D barcode, 2D QR code, Arabic numbers, English characters
2.5KW Industrial Smart Card Verification Machine YDPV-2 6000 - 7000 Cards/Hour 1
3. Magnetic Stripe Data Verification Unit
  • Magnetic reactance degree: 300 OE - 2750 OE
  • Reading magnetic density: 210 DPI, 75DPI/210 DPI, compatible 210 DPI
  • Magnetic stripe tracks: Track 1/2/3, Hico/Loco, standard width 12.7mm
  • Reads magnetic stripes on both sides of processed cards
  • Compares magnetic stripe data with database files
2.5KW Industrial Smart Card Verification Machine YDPV-2 6000 - 7000 Cards/Hour 2
4. Basic Configuration
Card feeding magazine (CR80 standard card) → RFID card chip data verification unit (LF+HF/optional UHF) → OCR surface data verification unit → magnetic stripe data verification unit (upper+lower side reading available) → Bad Card Rejection Unit → Good Card Collection magazine
Technical Specifications
Communication protocol ISO 15693, 14443A/B, ISO18000B/C
Cards types For both low-frequency and high-frequency chip cards
OCR surface data verification unit Optional
Production speed 6000-7000 cards/hour
Recognize content 1D barcode, 2D QR code, Arabic number, English characters
Control mode Industrial computer + motion control system
2.5KW Industrial Smart Card Verification Machine YDPV-2 6000 - 7000 Cards/Hour 3
