YEDU-2B Card DOD Personalization Machine with 72mm SEIKO Print Head

YEDU-2B Card DOD Personalization Machine with 72mm SEIKO Print Head
YEDU-2B Card DOD Personalization Machine with 72mm SEIKO Print Head YEDU-2B Card DOD Personalization Machine with 72mm SEIKO Print Head YEDU-2B Card DOD Personalization Machine with 72mm SEIKO Print Head
Basic Information
Place of Origin: China
Brand Name: YL
Model Number: YEDU-2B
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1-2 plywood case
Delivery Time: 50 working days
Payment Terms: T/T, Western Union, D/P, D/A
Supply Ability: 1 set per 45 days
Get Best Price
Chat Now
Detail Information
Machine's Speed: 8000-10000 Cards/hour(Read UID+DOD Printing), 2000-4000 Cards/h(chip Data Writing), 7000-8000 Cards/h (magnetic Stripe Encoding) Print Head And Max. Printing Width: SEIKO 72mm Black Ink (or White Ink).
Dimesion Of Machine: L(5000-7500mm)×W650mm×H1680mm Printing Resolution: 360-720 DPI Adjustable
LED UV Wave Length And Power:: 395NM, 400W. Net Weight: Around 1000-1500kg(as Per Different Configuration)
Highlight:

card demand on drop personalization machine

,

all in one card personalization machine

,

demand on drop card personalization machine

Product Description

Card Demand on Drop Personalization Machine All In One Personalization Line Card Issuer
Key Specifications
Attribute Value
Machine's Speed 8000-10000 cards/hour (Read UID+DOD printing), 2000-4000 cards/h (chip data writing), 7000-8000 cards/h (magnetic stripe encoding)
Print head and Max. printing width SEIKO 72mm black ink (or white ink)
Dimension of machine L(5000-7500mm)×W650mm×H1680mm
Printing resolution 360-720 DPI adjustable
LED UV Wave length and Power 395NM, 400W
Net Weight around 1000-1500kg (as per different configuration)
Product Overview
The YEDU-2B Card DOD Personalization Machine is an all-in-one solution for high-volume smart card personalization. This advanced system performs two-side printing in a single pass, along with optional RFID encoding, magnetic stripe encoding, and laser engraving capabilities.

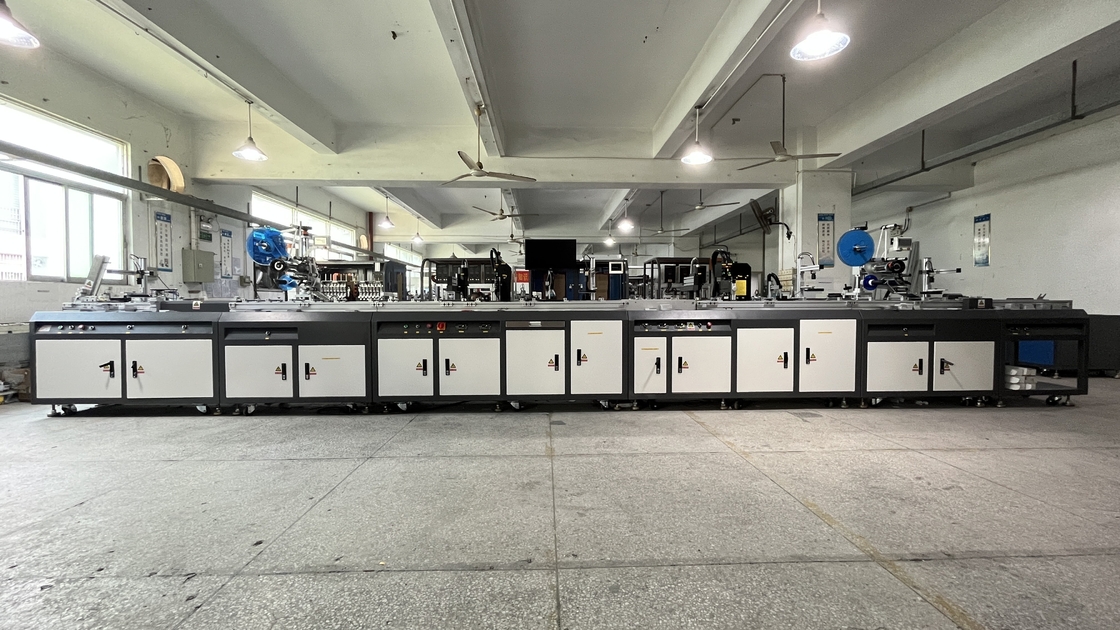

YEDU-2B Card DOD Personalization Machine with 72mm SEIKO Print Head 0
Standard Configuration
  • Card feeder (CR80 size)
  • RFID card encoder (HF/LF)
  • Plasma treatment unit
  • DOD black ink printing unit (72mm wide by SEIKO)
  • LED UV solidification unit
  • Card turn-over unit
  • DOD white ink printing unit (72mm wide by SEIKO)
  • Bad card rejection unit
  • Good card collection unit
Optional Modules
The modular design allows for additional functionality based on specific requirements:
  • RFID Chip Encoding: Supports reading/writing for various RFID chips including Mifare, Ntag, and Icode series
  • Magnetic Stripe Encoder: Handles three tracks or any combination for non-financial cards
  • OCR Inspection Unit: Verifies printed numbers, barcodes, and QR codes against database records
  • Scratch Labeling Unit: Applies multiple scratch-off labels simultaneously
  • Laser Engraving Unit: Available in CO2, optical fiber, or ultraviolet types for permanent marking

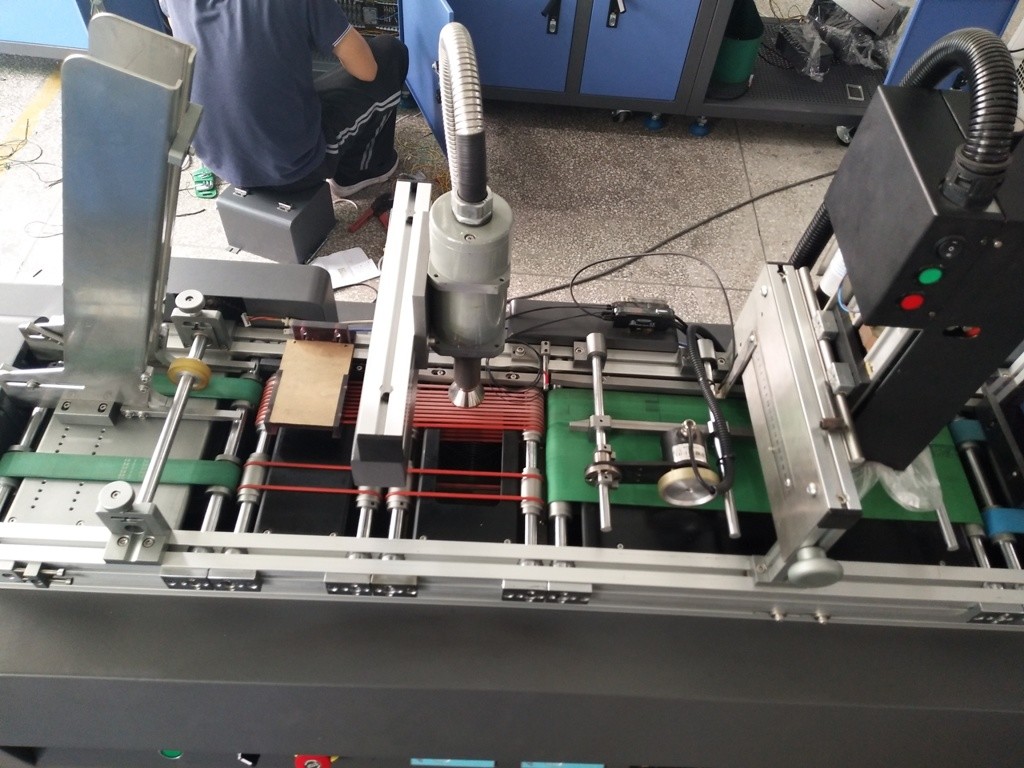

YEDU-2B Card DOD Personalization Machine with 72mm SEIKO Print Head 1
Technical Parameters
  • Printing resolution: 360-720 DPI adjustable
  • Maximum printing speed: 25 meters/min
  • Optimal quality speed: 20 meters/min
  • LED UV specifications: 395NM wavelength, 400W power
  • Control system: Industrial computer with motion control
  • Power requirements: AC220V, 50/60HZ, 6KW
  • Compressed air: 6KG/CM², 10L/min
Model Comparison
The YEDU-2B features a 72mm SEIKO print head for full-width card printing and two-side processing in a single pass. For partial-width printing needs, consider the YEDU-1A (36mm print head) or YEDU-1B (72mm print head) models.
